PM 100028 SP
不含税价格
向卖家询价
4
收藏
分享
保存搜索打印
信息
类别
其他起重机
品牌/型号
PM 100028 SP
生产年份
2018
设备所在位置
Milford, Massachusetts
国家
美国
一般等级
1
2
3
4
5
马斯客 ID
5639EBB7
详细信息
最大起重能力
100000 ton
附属装置
https://freecranespecs.com/PM/100028-SP
其他信息

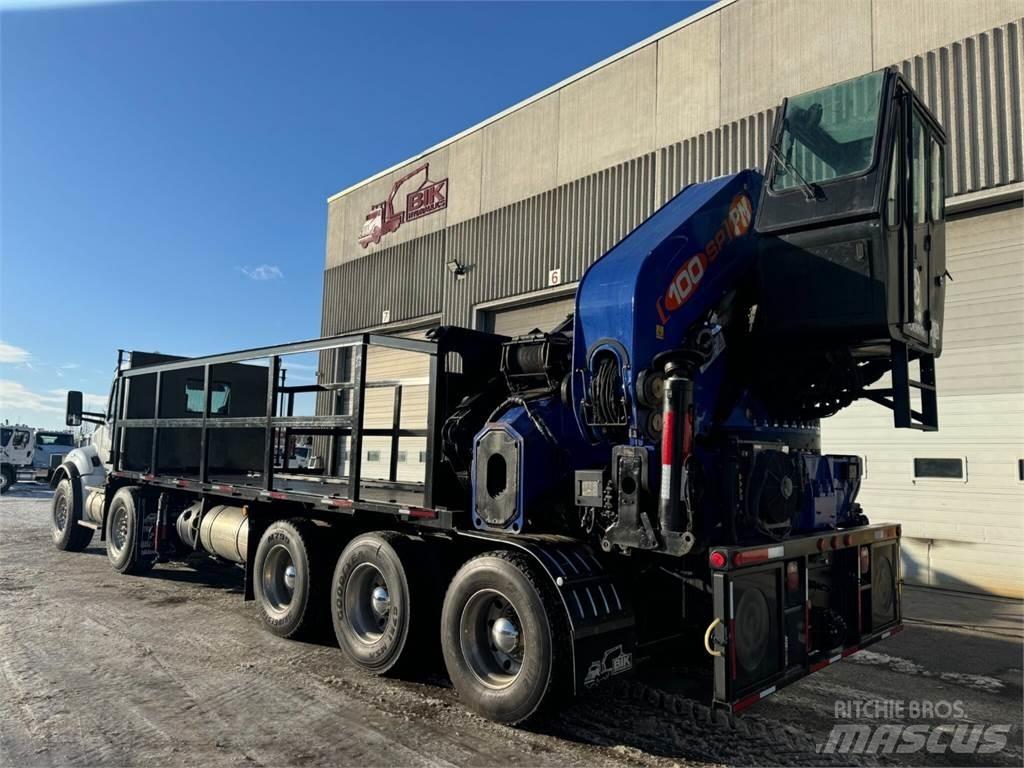

Boom Details
PM 100028-SP Knuckle Boom
Folding Hyd 8 ext Knuckle Boom – 65’ Horizontal Reach
(77’ vertical)
Horizontal Capacity:
36,800 lb ... 16’
20,100 lb ... 27’
16,000 lb ... 33’
13,000 lb ... 39’
9,300 lb ... 52’
6,000 lb ... 65’
PM Power-Link connections at Main, Knuckle & Jib Cylinders, Dual Planetary Gear Motors & Continuous Boom Rotation
180-degree flip-up Hydraulic Extra Wide Main outriggers at pedestal – 30’ – 7” span
– 360-degree full load chart stability
Hydraulic Oil Cooler, high-pressure return filter and min. 80–gallon hyd oil tank with gate valves mounted at the front under deck
Scanreco Radio Remote Control includes:
2-batteries, in-cab charger, and backup cord – 5 level turtle (micro) slow-down mode
Simplified Hydraulic Overload System
allowing maximized uptime and ease of maintenance
Manual Controls –
Danfoss valve located on boom column with plastic cover and mechanical hour meter
Lifting Winch
– 4-ton single-line pull winch that can be plumbed for up to 4 part line accessories
Crane Painted PM Blue – Certified Painting Quality System – Load Tested and certified
Installed at rear, with integral sub-frame, 3/8” front and centre -½” sheer plating at crane for maximized torsion strength
Also Included:
Auxiliary Extra-Wide hydraulic outriggers 23’ spread front mounted for 360 degree stability
1” Drawplate Plate at rear w/pintle hook
36” Alum locking checker plate toolbox installed
(8) PVC stabilizer pads – with holders (4 pcs).,
NOTE: Pictures of Shown when Unit was New
Ideal Heavy Lift Precast Unloader
CALL FOR DETAILS AT:
1-888-557-2244 OR
416-679-3838

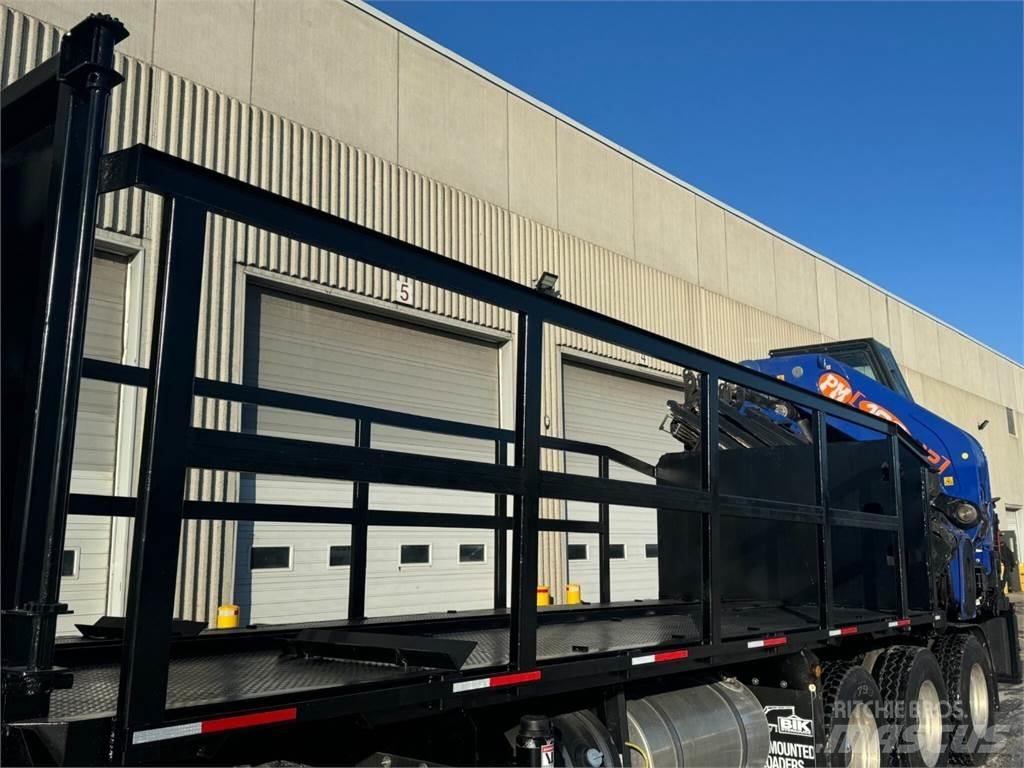

Deck Details
22’ x 102” Steel Deck:
66” head board with window cut out with mesh
Steel checker plate Floor
Winch bar and holder
Integral steel sub-frame and extension at rear as torque box for boom with all proper engineered sheer planting
X-braces & support
2-Deck access Ladders, reflectors, conspicuity tape, Mud-flaps
6-Winches and tracks (sliding) under deck.
Truck Details
Used – 2018 Kenworth T880 T/A Steer – Tridrive (5 Axles total): 99,000 lb GVWR
Paccar 13L Diesel – 505 hp w/Jake – 1,850 ft/lb torque
Eaton Ultrashift Plus Automated 18 spd trans,
Truck cab white
(2) x 20,000 LB fronts with 425 / 65R22.5 tires
69,000 LB Tridrive Rears on Hendrickson Primax Air Ride Susp. With 56” spread at t/a, Double Frame
Polished ALCOA Aluminum Wheels front and outer rear
Chrome single polished Exhaust, Chrome Grille & Bumper
120-gallon alum fuel tank
Loaded with Options Including:
A/C, Tilt/Telescopic steering, AM/FM stereo with Bluetooth, high back air driver’s seat, fixed passenger seat, cruise, heated mirrors, exterior S/S sun visor, 6 wheel lock-ups
, power windows and locks, Air ride cab, full differential locks, trailer air tow package, etc…
