Elliott G85
不含税价格
向卖家询价
6
收藏
分享
保存搜索打印
信息
类别
其他起重机
品牌/型号
Elliott G85
附加选项
未使用
设备所在位置
Milford, Massachusetts
国家
美国
一般等级
1
2
3
4
5
马斯客 ID
2274B9CD
详细信息
其他信息
BOOM DETAILS
NEW

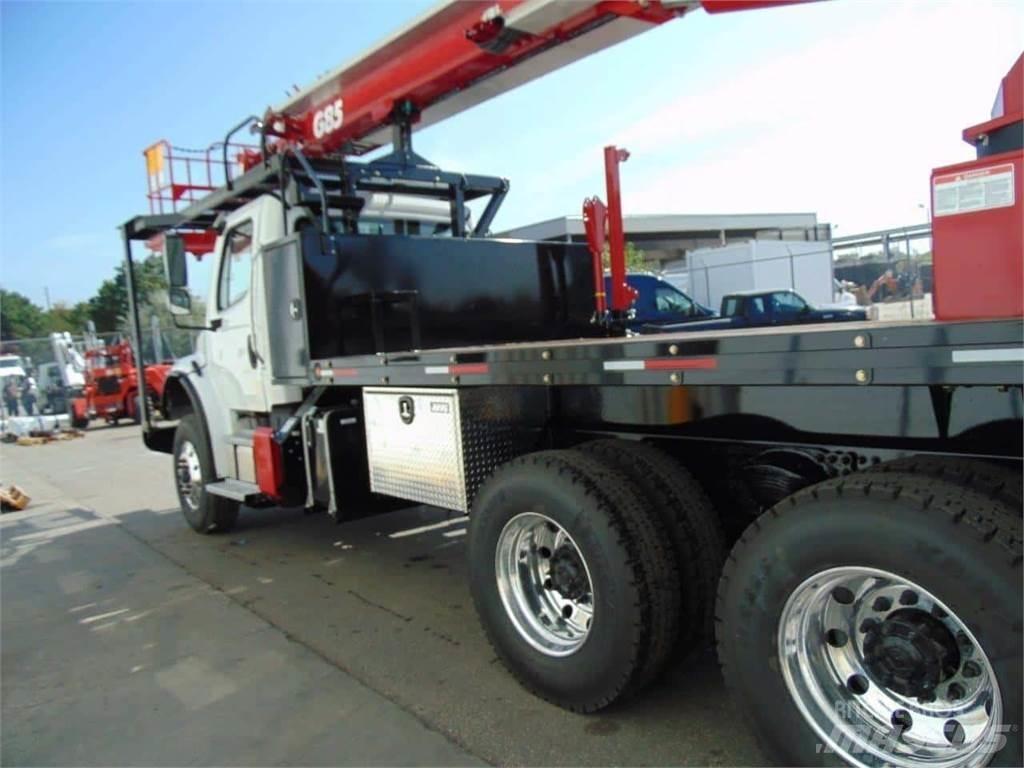

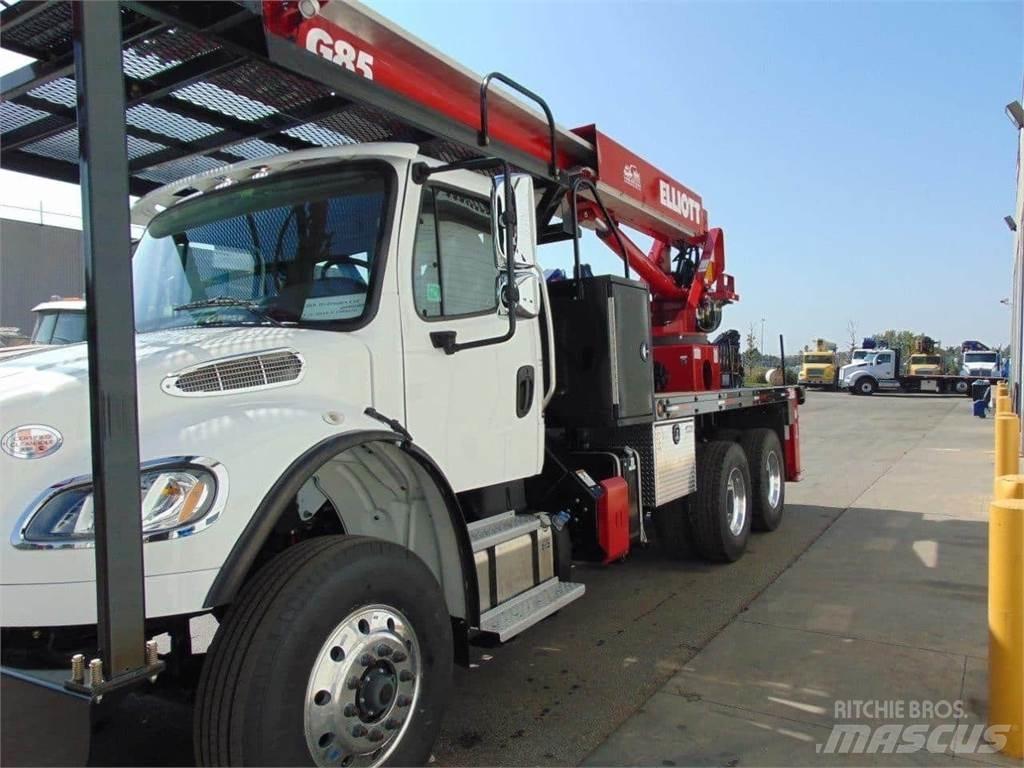

Elliott G85 R HiReach:
4-section Hydraulic reach to 85’ vertical reach with 85’ working height, 74’ horizontal reach
Installed END OF FRAME by Elliott factory technicians, prepped, primed and painted
New Air Operated PTO (Chelsea)
Hour meter, Hydraulic Pump
Supply and Return Lines
Hydraulic tank mounted on truck frame w/ shut-off valve
Load Tested
Standard Features include
:
Electronic Proportional three stick controls on platform. Manual ground controls located on side of turret.
Remote star/stop from upper and lower controls. Two exposed cable carriers to boom tip.
Hydraulic self levelling and rotating 40” x 60” EZR work platform with remote levelling from platform, platform capacity 500 lbs
One double acting 7” full displacement long stroke boom elevation cylinders provides smooth, stable elevation.
Continuous off set turret rotation with no stops with ball bearing slewing bearing and self locking gear box.
Hydraulic OUT and DOWN “MH” stabilizers at base with a 18’ spread, “A” frame secondary stabilizers at front.
Included Options Are
:
5,900lb planetary winch w/anti-two block switch, horn, two part hook and 130’ of 3/8” cable
Platform mounted jib with hydraulic winch drum mounted on horizontal arm
110 V power supply to work platform, Sign forks on platform (2 pcs)
16’ x 96” Aluminum bed, Truck cab windshield guard, steel carrier cover
8’ Aluminum cross box, 24” x 36” tall with doors on each side mounted at front of deck
TRUCK DETAILS
New – Freightliner M2-106 3-axle Truck: 56,000 lb GVWR
Air Brakes
350 Hp Cummins Diesel Engine
Allison Automatic Trans.
Truck cab white in colour
16,000 lb front axle
40,000 lb rear axle on Tuftrac Susp. with 11R22.5 tires on Polished Alum rims
Air brakes
chrome bumper & grille
Also Includes: Air. Cond., am/fm/CD stereo & Bluetooth, tilt steering, cruise control, power windows & door locks, Air Ride Drivers Seat, 2-man passenger bench seat, etc..
Optional Equipment:
Aluminum Under Deck Storage Boxes
Hydraulic oil tank heater
Drawplate with pintle hook
