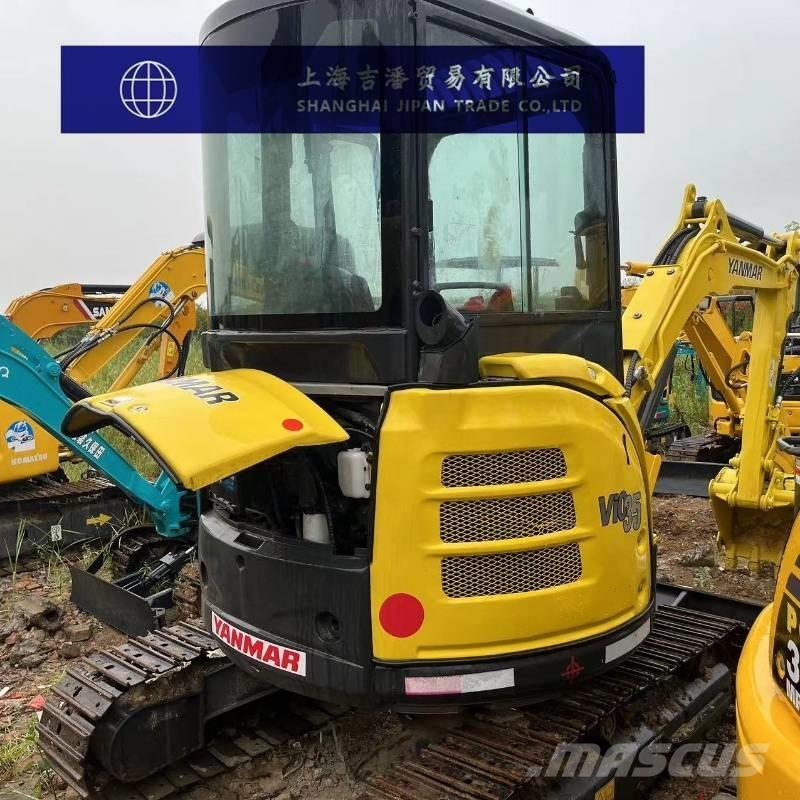

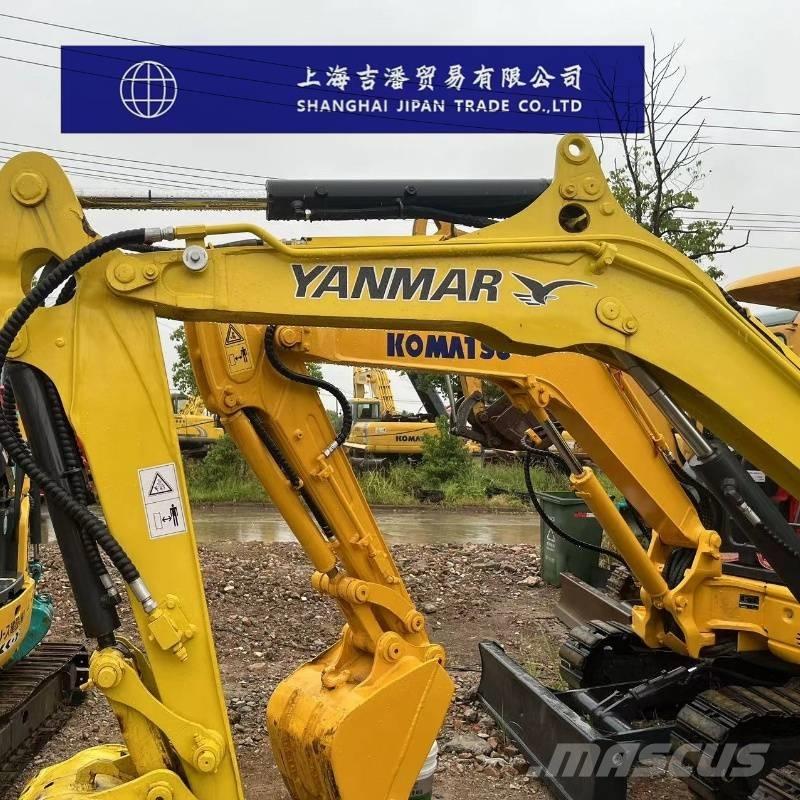

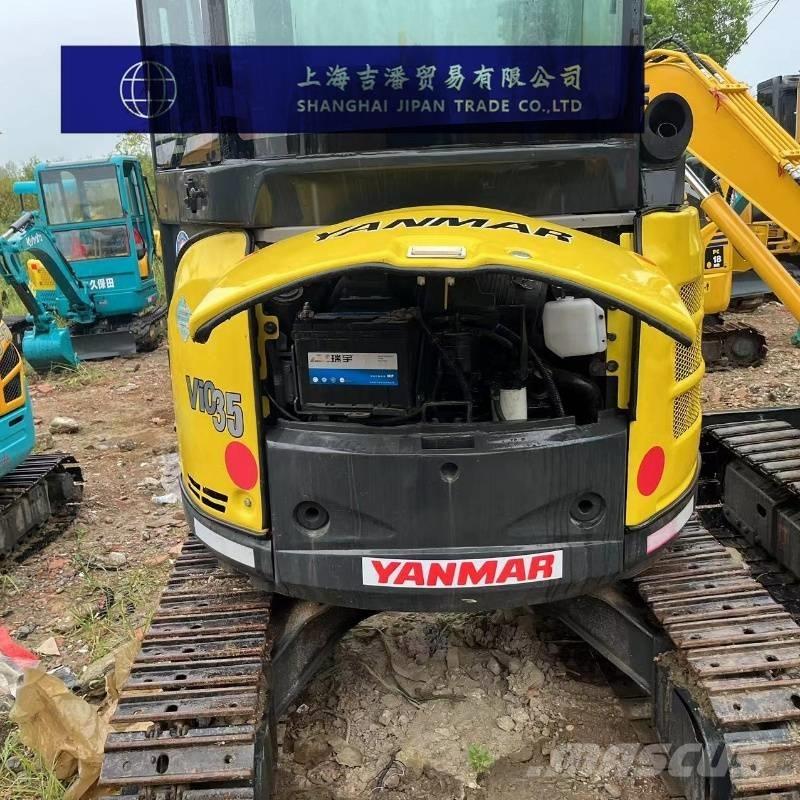

洋马 Vio 35

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

The Yanmar VIO35 excavator has multiple models. Below are the main parameters of the VIO35-5B as an example: Basic Parameters: Machine Weight: 3450kg without a quick coupler; 3490kg with a quick coupler. Body Weight: 2590kg without a quick coupler; 2630kg with a quick coupler. Engine Model: 3TNV88-BQBV. Rated Power: 20.9kW (28.4PS) at 2300rpm. Standard Bucket Capacity: 0.11m³. Standard Bucket Width: 590mm. Working Range: Maximum Digging Depth: 3150mm. Maximum Vertical Digging Depth: 2700mm. Maximum Digging Height: 5000mm. Maximum Dumping Height: 3600mm. Maximum Ground Digging Radius: 5000mm. Minimum Front Swing Radius (when traveling): 1860mm (without quick coupler); 1630mm (with quick coupler). Boom Swing Angle (Right/Left): 75°/45°. Maximum Digging Force (Bucket): 32.3kN (3300kgf). Travel and Swing Parameters: Travel Speed: 4.6km/h (high speed); 2.7km/h (low speed). Swing Speed: Not specified. Ground Pressure (Rubber Tracks): 31.0kPa (0.316kg/cm²). Ground Pressure (Steel Tracks): 31.2kPa (0.318kg/cm²). Hydraulic System Parameters: Hydraulic Pump Flow: 38.6×2 (variable) + 27.4×1 (gear) + 11.3×1 (gear) L/min. Set Pressure (Main Relief): 22.1MPa (225kg/cm²) × 2; 21.6MPa (220kg/cm²) × 1. Overall Dimensions: Total Length: 4640mm. Total Width: 1550mm. Total Height: 2510mm.
