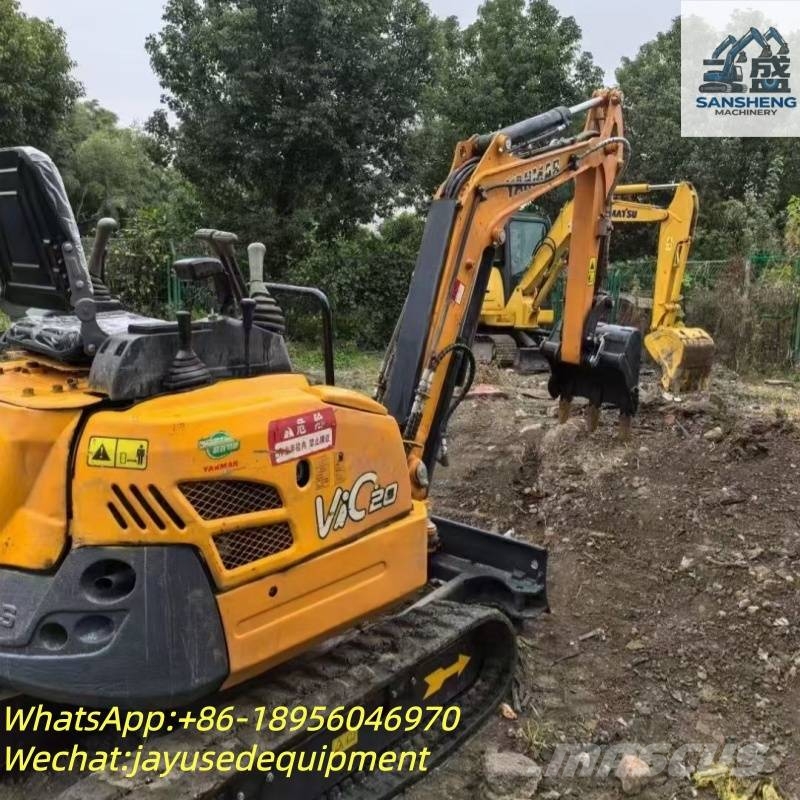

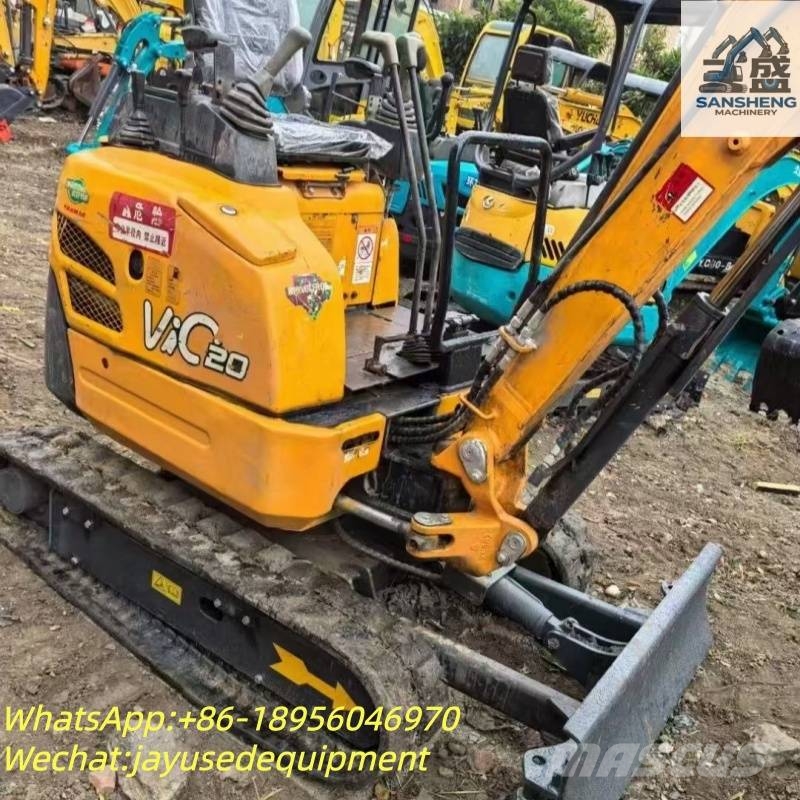

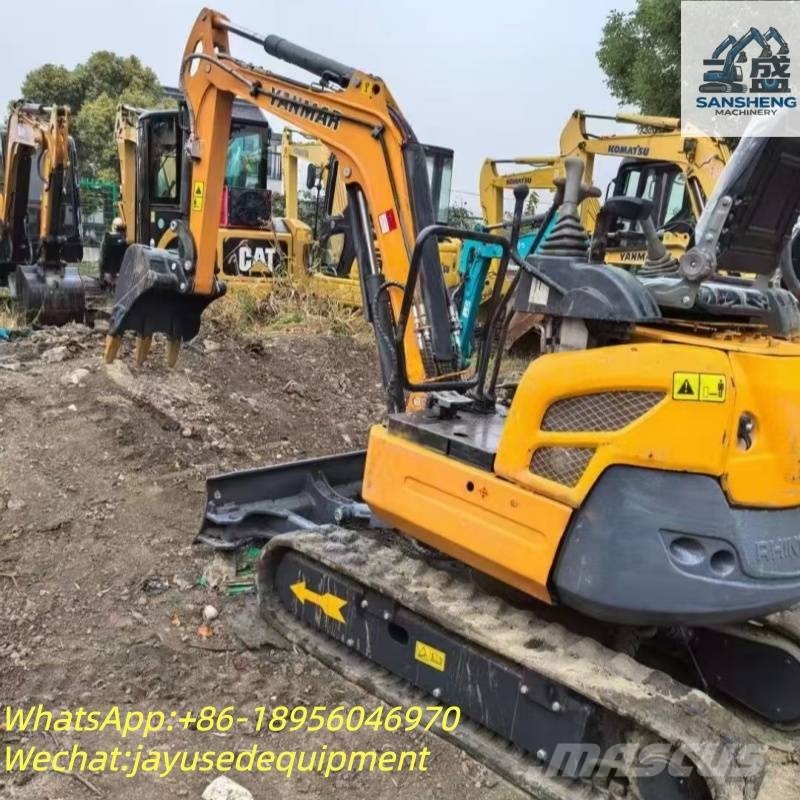

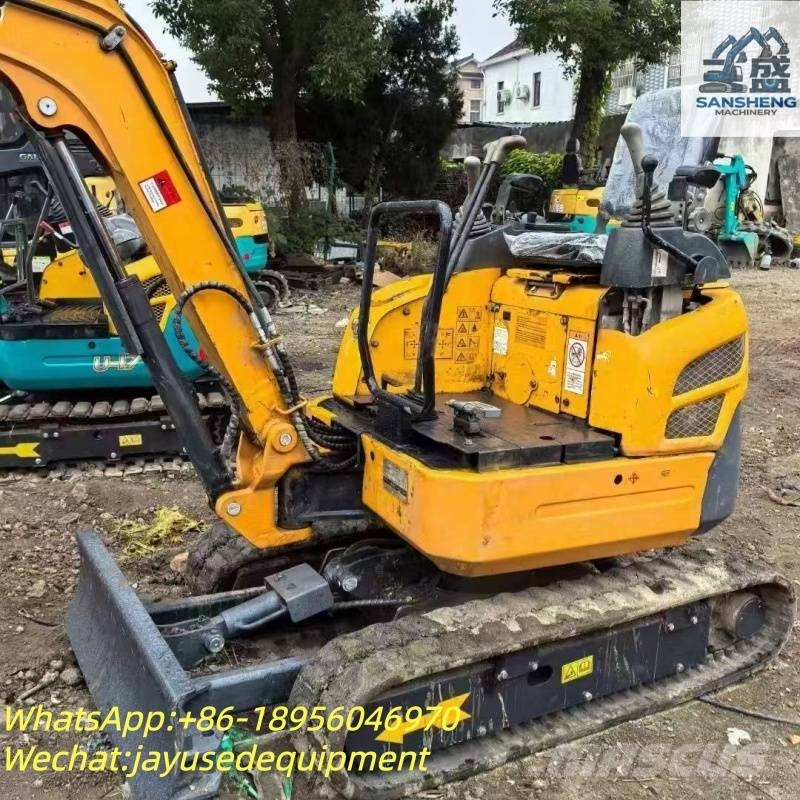

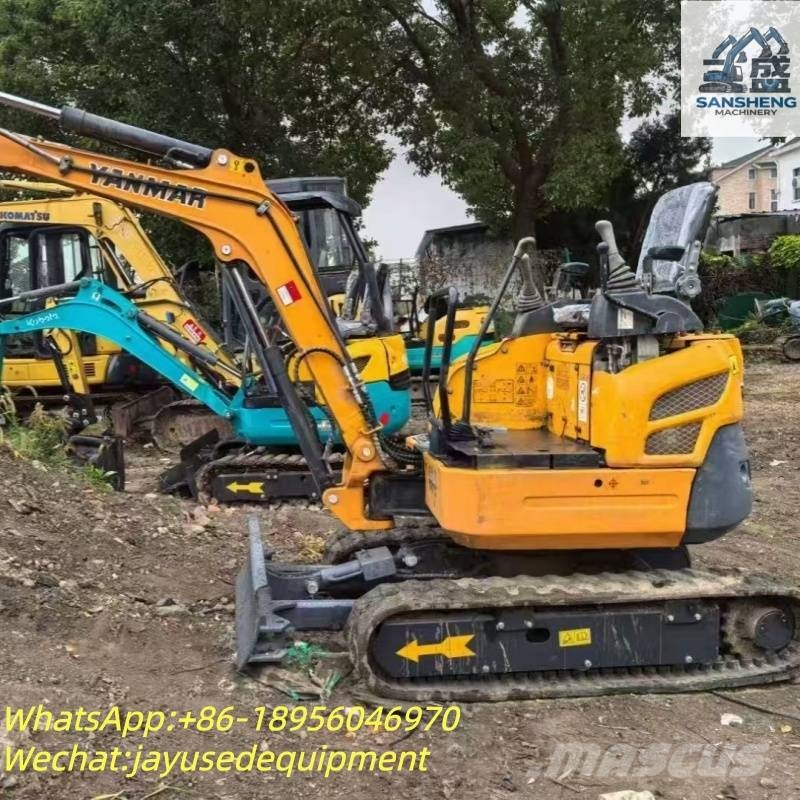

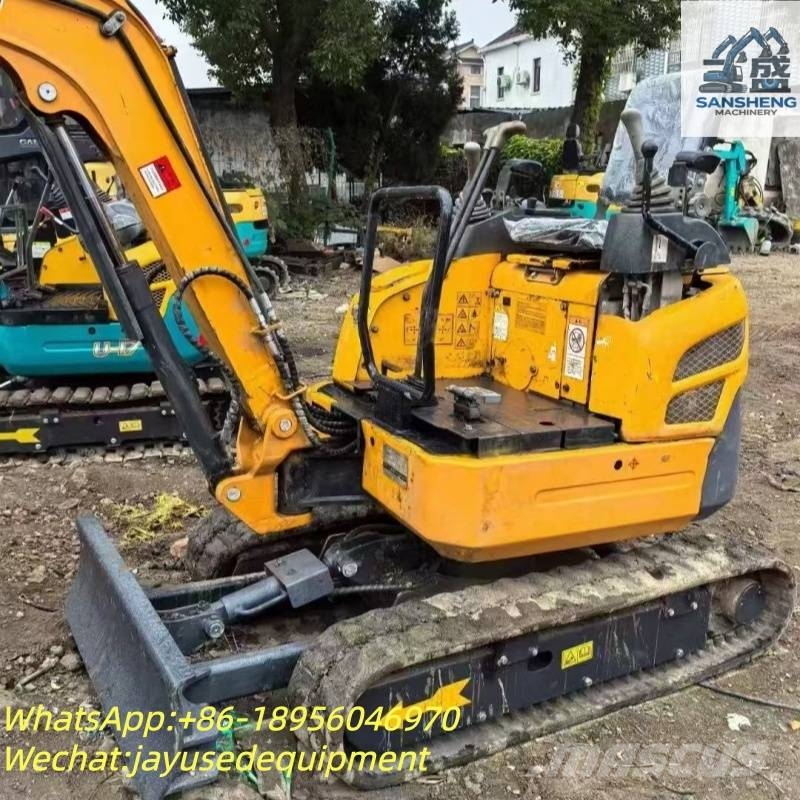

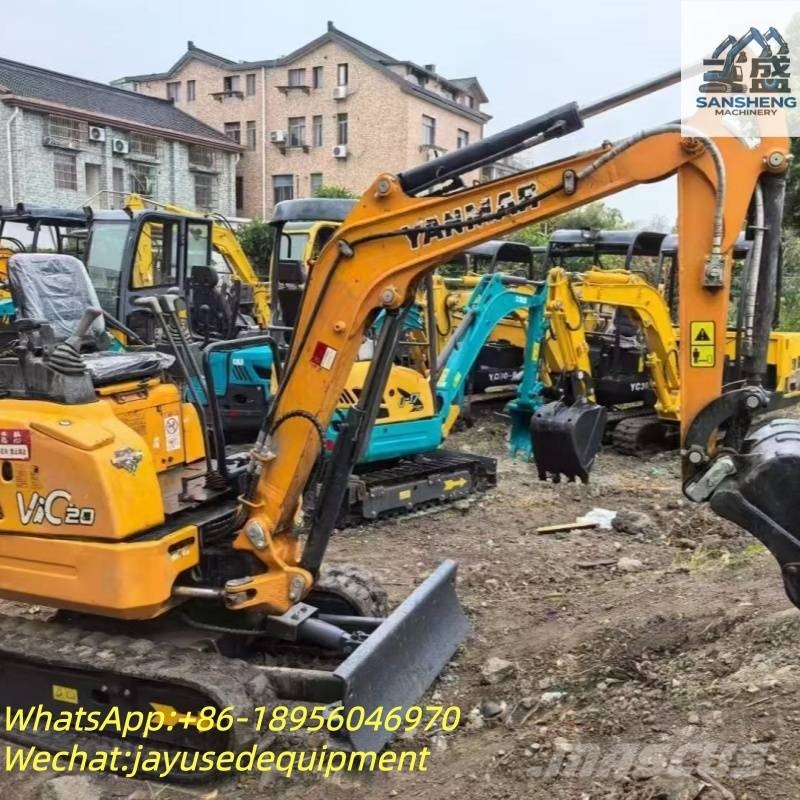

洋马 Vio 20

We supply a full range of excavator & machinery attachments: Rock Bucket, Skeleton Bucket, Loosening Bucket, Cleaning Bucket, Tilt Bucket, Ditch Bucket, Bucket Clamp,Clamshell Bucket, Rotary Screen,Crusher Bucket,Crushing & Screening Bucket, Rake, Ripper, Thumb Clip and Compaction Wheel Service Hours: 24/7 available Address: Hefei,Anhui, China Contact Person: Mr.Jay Lee WhatsApp:+86 18956046970 Mobile:+86 18956046970 WeChat: jayusedequipment Email: Packaging & Shipping Solutions We offer multiple shipping options to meet your demands: Flat Rack: Ideal for large construction machinery with no disassembly required. Container Shipment: Cost-effective and time- efficient Bulk Carrier:Perfect for oversized construction equipment. Ro-Ro Shipment: Fast delivery, applicable to all types

Bucket type: Counterbalanced bucket Tonnage (tons): 2 Overall working weight (kg): 2230 Bucket capacity (m³): 0.06 Performance Rotation speed (rpm) 9.5 Travel speed (km/h) 4.4/2.2 Ground contact pressure (Kpa) 27.7 Bucket digging force (kN) 17.7 Bucket arm digging force (kN) 13.1 Power system Engine model: Yanmar 3TNV76-PBV Rated power (kw/rpm) 14.3 / 2400 Displacement (L) 1 Number of cylinders (units) 3 Hydraulic system Maximum flow rate of main pump (l/min) 76 Maximum overflow setting pressure (Mpa) 20.6 Oil capacity Fuel tank (L) 28.5 Overall dimensions of the main body Total length for transportation (mm) 3915 Total width for transportation (mm) 1380 Total height for transportation (mm) 2400 Track ground contact length (mm) 1890 Track plate width (mm) 250 Minimum ground clearance (mm) 280 Rear end rotation radius (mm) 690 Working range Maximum digging radius from the base (mm) 4160 Maximum digging depth (mm) 2600 Maximum digging height (mm) 4000 Maximum unloading height (mm) 2580 Maximum vertical digging depth (mm) 1900 Tilting plate width × height (mm) 1380 × 295
