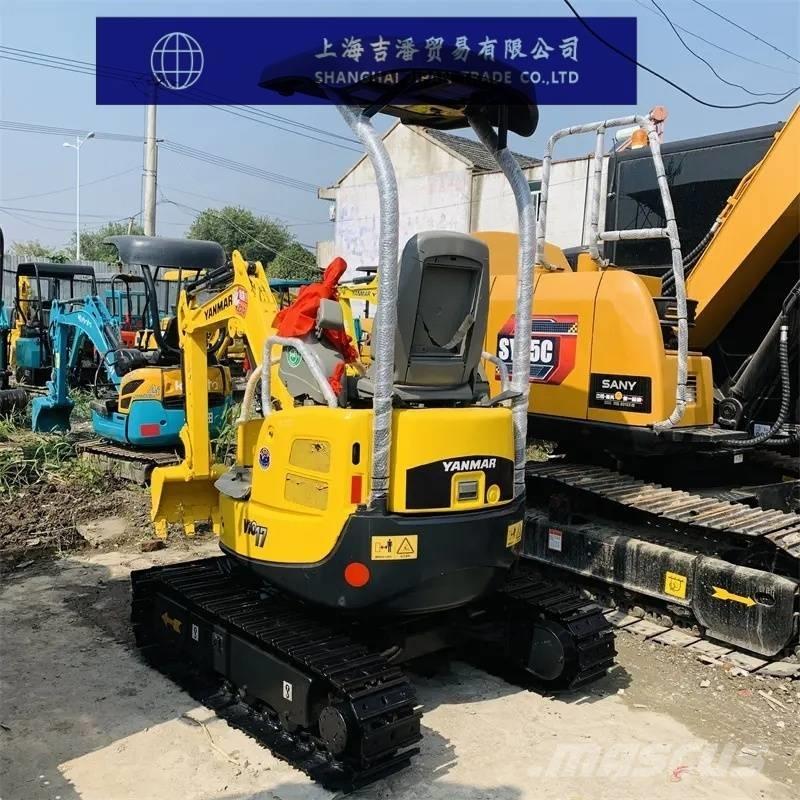

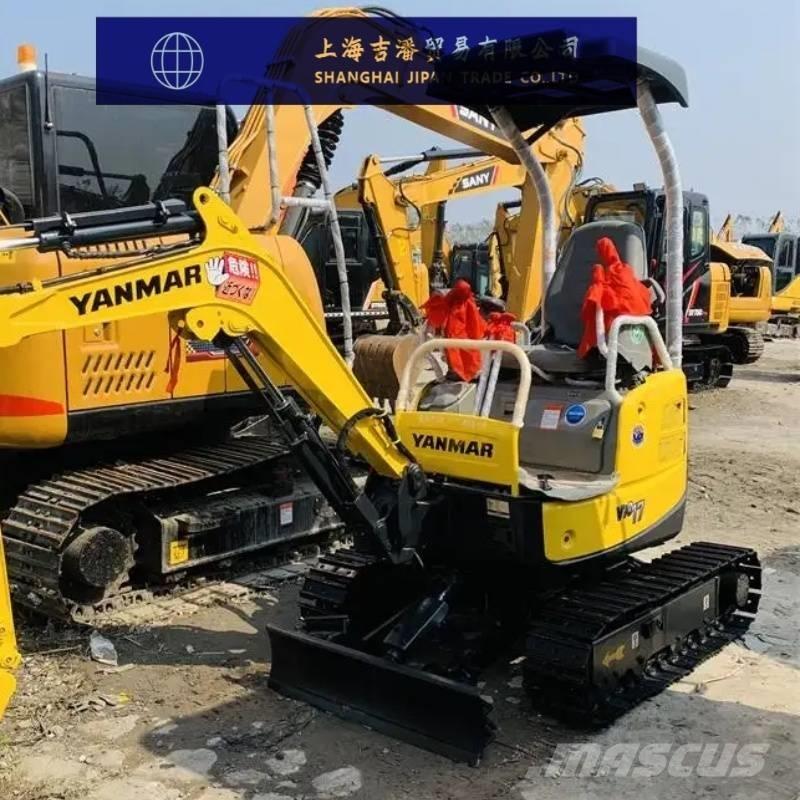

洋马 Vio 17

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Item Specification Operating weight (rubber track) 1740kg Operating weight (steel track) 1800kg Engine model 3TNV70-XBV Rated power 10.1kW/2200rpm (13.5hp/2200rpm) Bucket capacity (standard, ISO heaped) 0.05m³ Maximum digging force (bucket) 15.2kN Maximum digging force (boom) 8.5kN Travel speed (high/low) 4.3km/h / 2.1km/h Swing speed 9.5rpm Boom swing angle (left/right) 42°/65° Ground pressure (rubber track) 28.6kPa Ground pressure (steel track) 29.6kPa Hydraulic system pump capacity 17.6L/min + 17.6L/min + 13.2L/min + 11.2L/min Main relief setting pressure 20.6MPa Dozer blade dimension (width × height) 1280mm × 235mm Fuel tank capacity 20L
