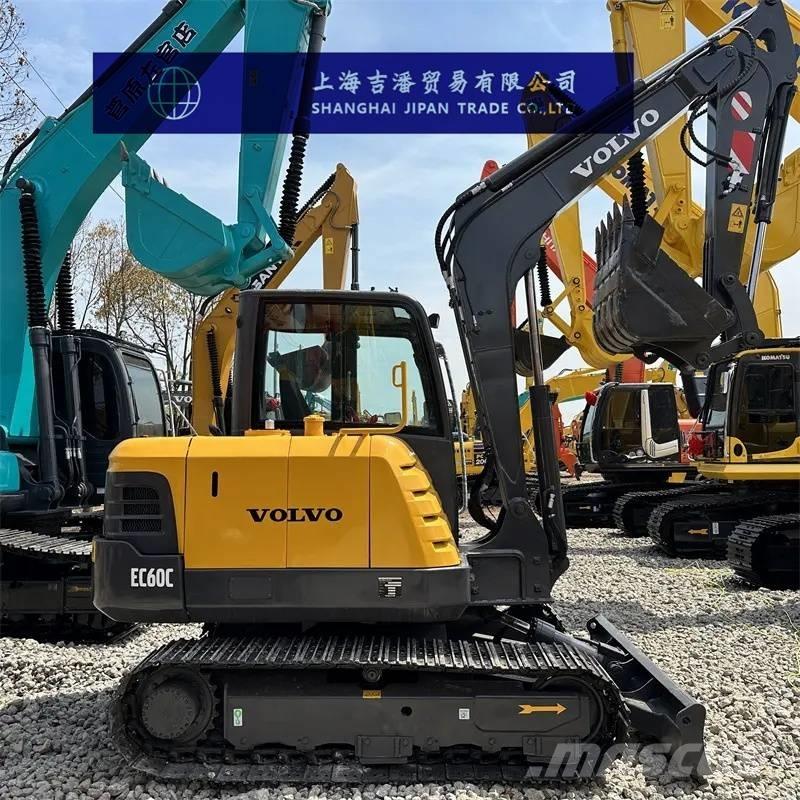

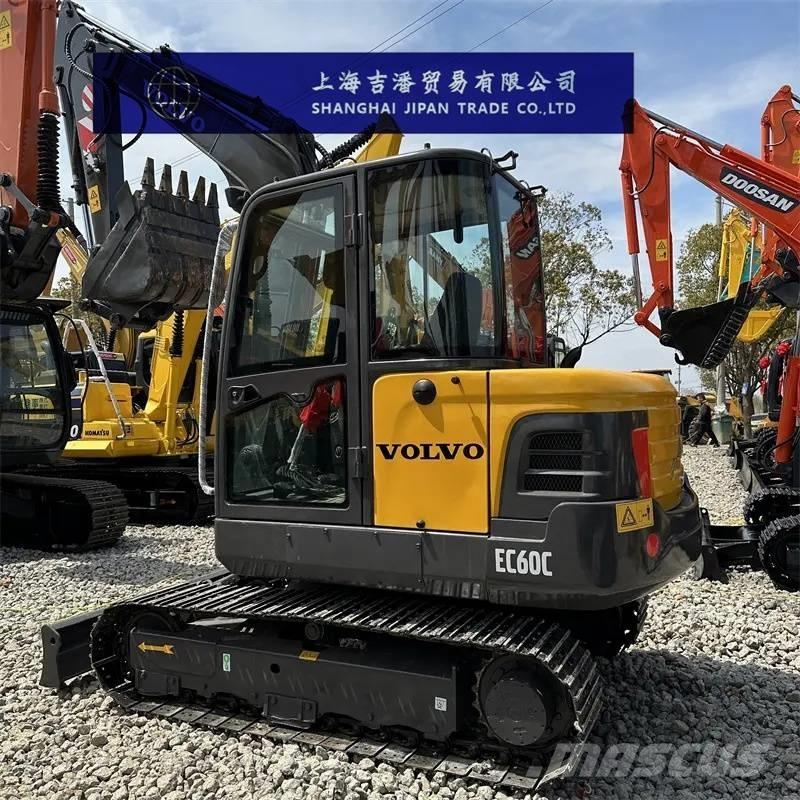

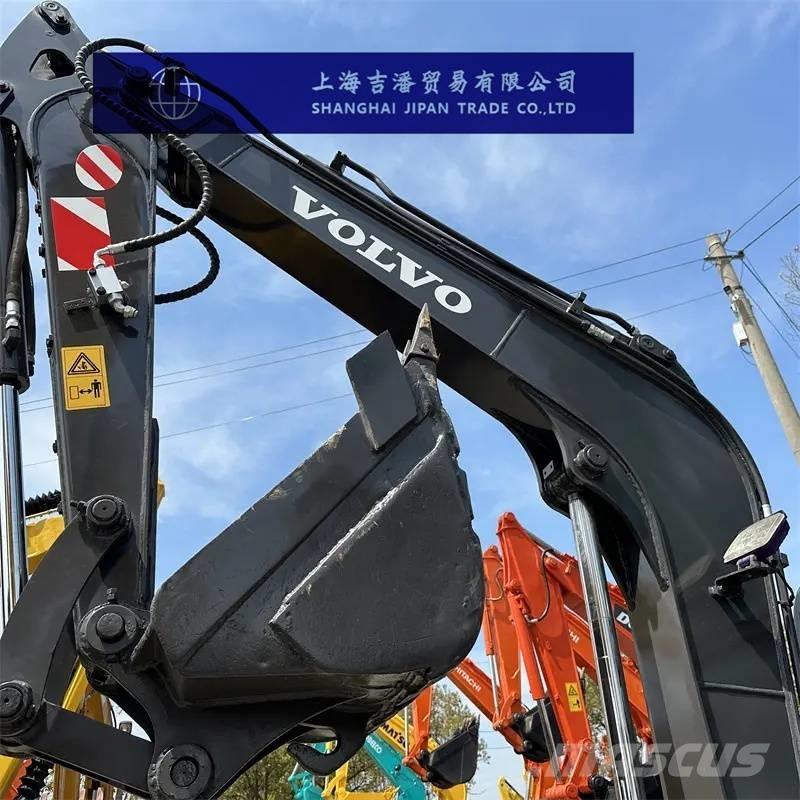

沃尔沃 EC 60
不含税价格
打印
信息
类别
小型挖掘机
品牌/型号
沃尔沃 EC 60
生产年份
2022
使用小时
1564 小时
国家
中国
一般等级
1
2
3
4
5
马斯客 ID
9A5EAD0D
定价
选择币种
详细信息
电源类型
柴油机
最新检验记录
2025-08-19
先前车主有几个
1
底盘状态
98%
毛重
5790 公斤
排放标准
第V阶段
履带宽度
600 mm
料斗容积
0.30 m3
运输尺寸(长x宽x高)
5872 x 1920 x 2563 mm
原色
original
发动机
original
发动机输出功率
44.3 kW (60.2 马力)
发动机制造商
original
状态/质保
1 year
成交条件
FCA, FOB, CIF, EXW
证书
EPA环境保护署, CE认证
附属装置
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Nina
Whatsapp: +86 18055199047
Mobile:+86 18055199047
Wechat:18055199047
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs
配件
空调
铲斗
操纵杆
标准挖土铲斗
高度调节
其他信息
Specifications of Volvo EC60C Excavator
Operating Weight: 5790kg
Bucket Capacity: 0.3m³
Boom Length: 3000mm
Stick Length: 1600mm
Engine Model: Volvo D3.1D
Rated Power: 38.2kW/2200rpm
Displacement: 3.054L
Number of Cylinders: 4
Bore × Stroke: 94×110mm
Swing Speed: 8.8rpm
Travel Speed: 4.5/2.4Km/h
Bucket Digging Force: 41.38kN
Stick Digging Force: 28.44kN
Main Pump Type: Variable Double-Acting Piston Pump
Main Pump Maximum Flow: 2×57.8L/min
Main Relief Setting Pressure: 21.6Mpa
Working Hydraulic Circuit Pressure: 21.6Mpa
Pilot Circuit Pressure: 3.2MPa
Fuel Tank Capacity: 110L
Hydraulic Oil Tank Capacity: 84L
Hydraulic System Capacity: 134L
Engine Oil Change Capacity: 11.5L
Coolant Capacity: 16L
Total Transport Length: 5872mm
Total Transport Width: 1920mm
Total Transport Height: 2563mm
Overall Cab Height: 2563mm
Track Contact Length: 1950mm
Total Track Length: 2500mm
Track Shoe Width: 380mm
Total Track Width: 1920mm
Minimum Ground Clearance: 380mm
Minimum Swing Radius of Front Working Device: 2480mm
Rear Swing Radius: 1650mm
Maximum Digging Radius: 6100mm
Maximum Digging Radius at Ground Level: 5960mm
Maximum Digging Depth: 3750mm
Maximum Digging Height: 5680mm
Maximum Dumping Height: 4140mm
Maximum Vertical Digging Depth: 3750mm
Width × Height of Dozer Blade: 1920×350mm
Lifting or Digging Depth of Dozer Blade: 380/508mm
