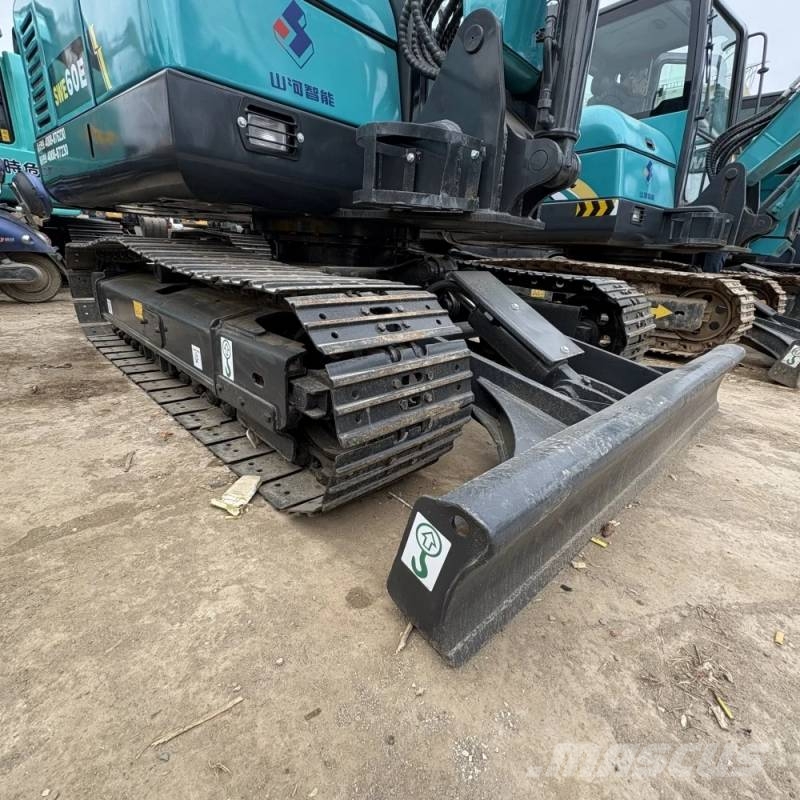

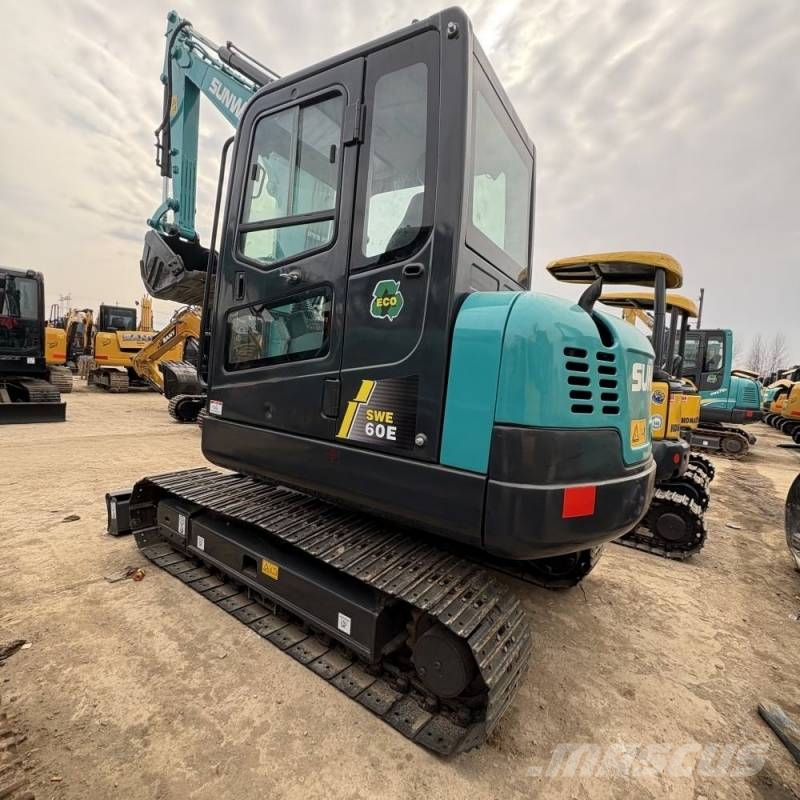

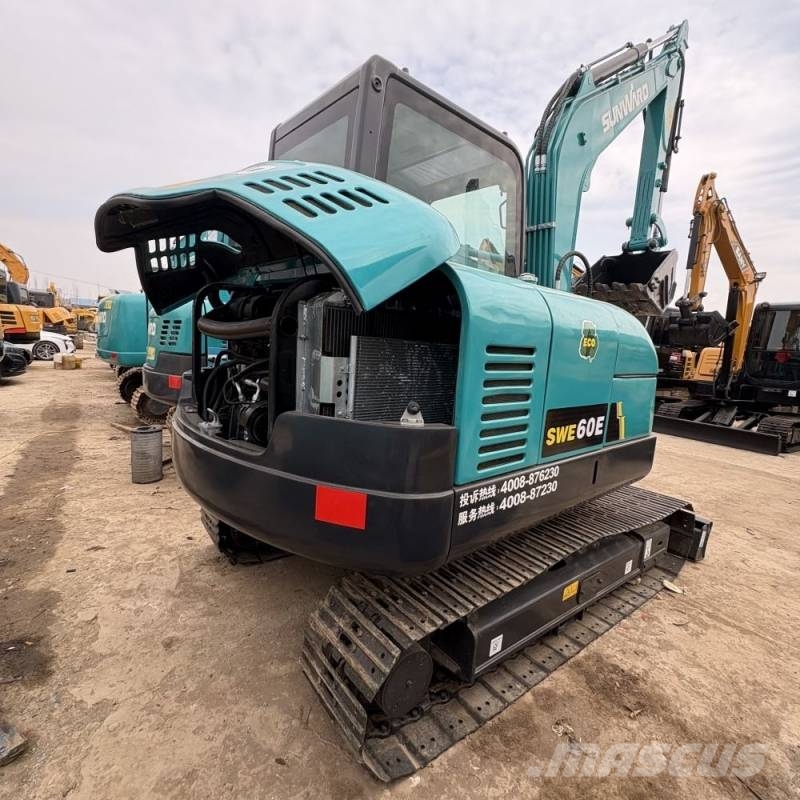

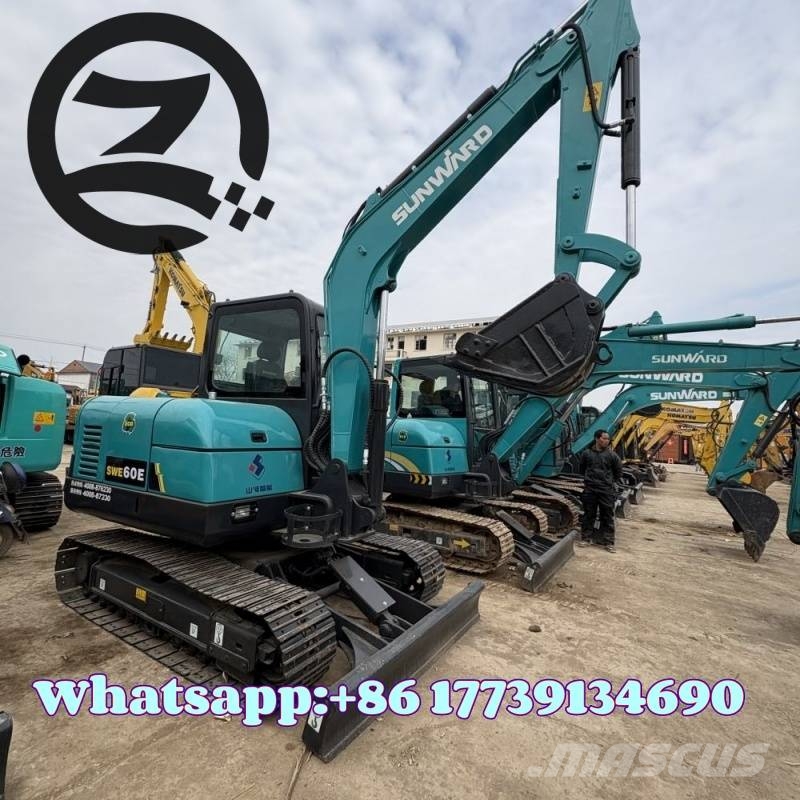

山河智能 SWE 60 E

# SUNWARD SWE60E Crawler Excavator Specifications Model: SUNWARD SWE60E Operating Weight: 6000 kg Bucket Capacity: 0.22 m³ Transport Dimensions (L×W×H): 5550 × 1980 × 2550 mm Track Shoe Width: 400 mm Travel Speed (High/Low): 4.07 / 2.43 km/h Swing Speed: 9.4 rpm Bucket Digging Force: 47 kN Arm Digging Force: 31 kN Max Digging Depth: 3765 mm Max Digging Radius: 6175 mm Max Dumping Height: 4080 mm ## Engine Engine Model: YANMAR 4TNV94L-BVSU Rated Net Power: 36.2 kW / 2100 rpm Emission Standard: Euro Stage IIIA Displacement: 3.054 L ## Hydraulic System Main Pump Type: Variable displacement piston pump Main Pump Flow: 158 L/min Relief Pressure: 24.5 MPa Auxiliary Hydraulic Flow: 62 L/min
