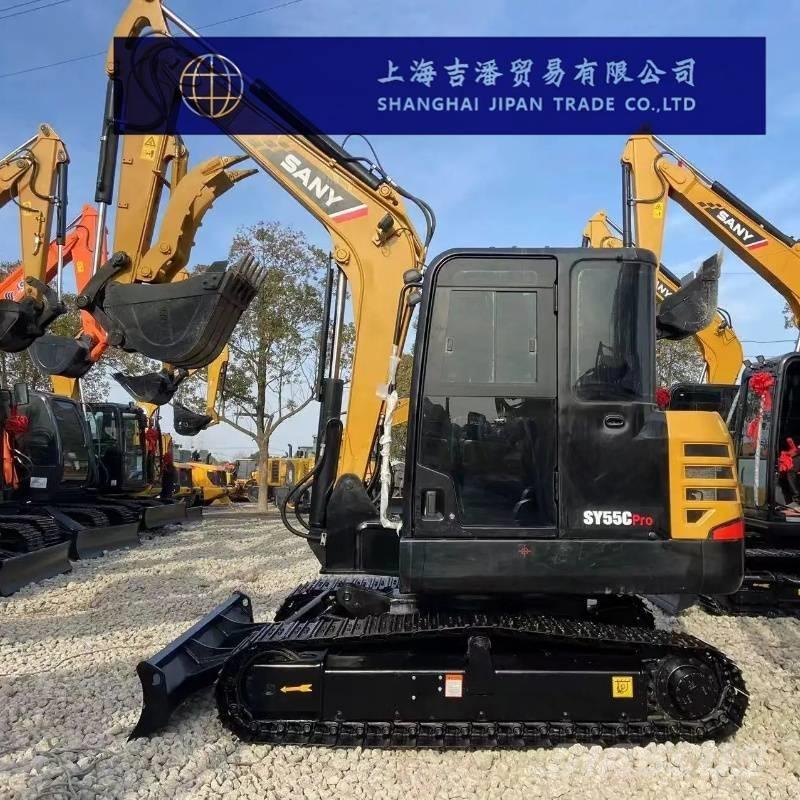

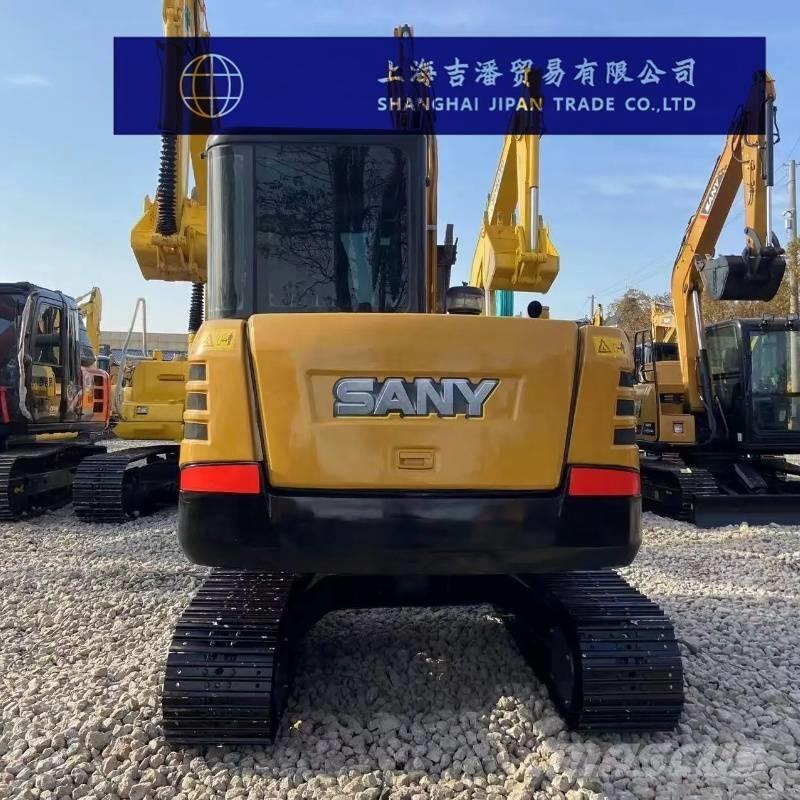

三一重工 SY 55

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Overall Dimensions: Total length (during transportation): 5915mm Total width (transportation/operation): 2025mm Total height (during transportation): 2560mm Upper part width: 1860mm Dozer blade height: 340mm Standard track shoe width: 400mm Track gauge (transportation/operation): 1600mm Minimum ground clearance: 315mm Tail swing radius: 1635mm Wheelbase: 2050mm Track length: 2550mm Performance Parameters: Overall weight: 5780kg Standard bucket capacity: 0.23m³ Rated power: 36kW/2000rpm Bucket digging force: 36kN Arm digging force: 29kN Fuel tank capacity: 130L Hydraulic oil tank capacity: 85L Engine oil capacity: 9.6L Antifreeze capacity: 7L Travel reducer gear oil capacity: 13L Working Range: Maximum digging height: 5610mm Maximum dumping height: 3910mm Maximum digging depth: 3830mm Maximum vertical digging depth: 3055mm Maximum digging radius: 6070mm Minimum swing radius: 2540mm Maximum height at minimum swing radius: 4440mm Maximum ground clearance when dozer blade is lifted: 401mm Maximum sinking depth of dozer blade: 370mm
