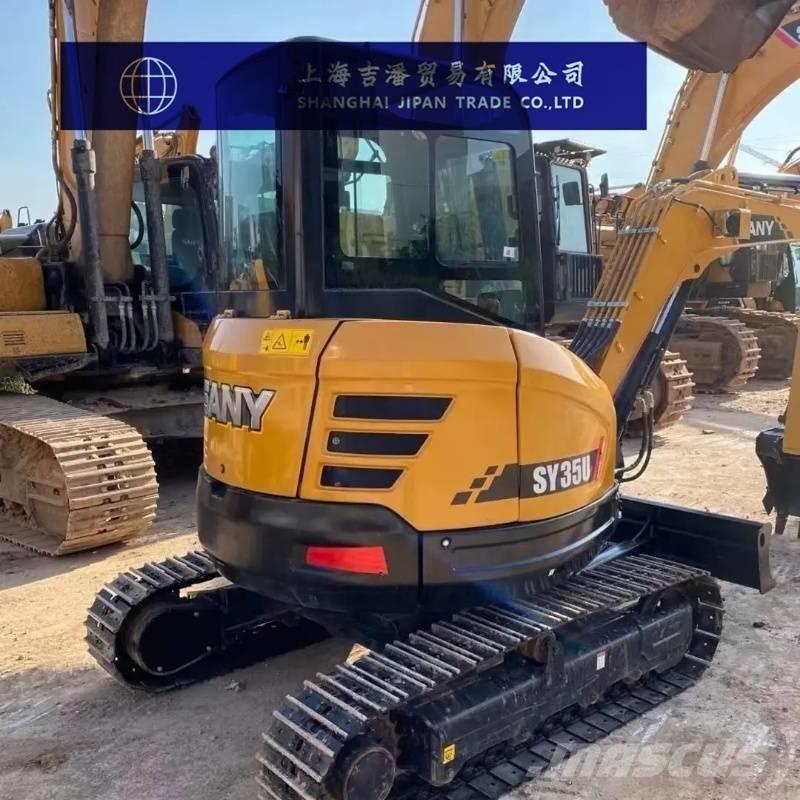

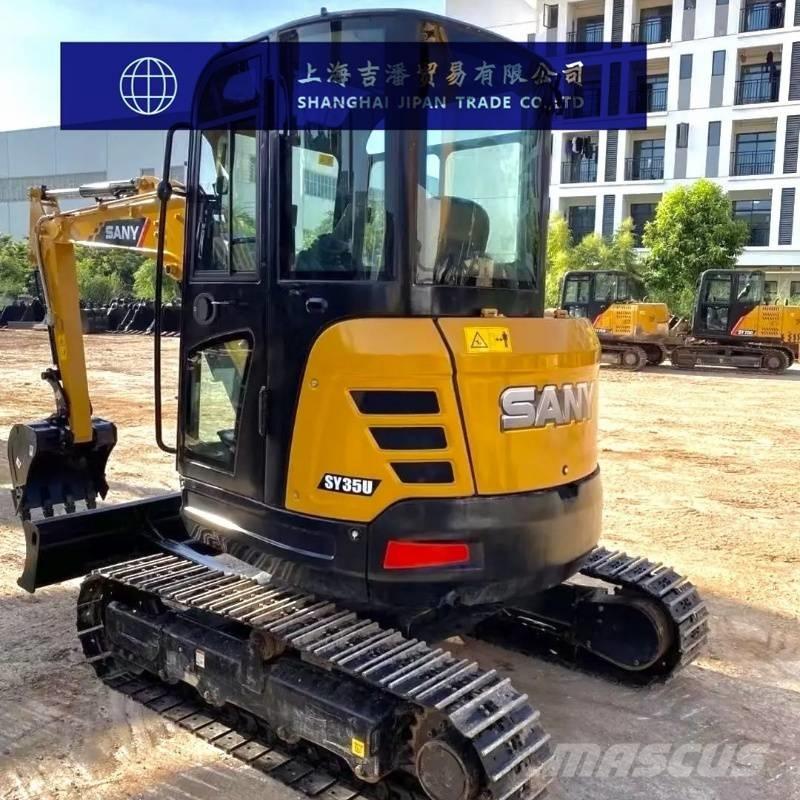

三一重工 SY 35 U

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Parameters Operating Weight: 3720-3920kg Rated Power: 18.2kW/2200rpm Bucket Capacity: 0.12m³ Dimension Parameters Transport Length: 4915mm Transport Width: 1720mm Transport Height: 2515mm Upper Structure Width: 1550mm Cab Height: 1250mm Dozer Blade Height: 350mm Track Width (Standard Shoe): 300mm Track Gauge: 1420mm Minimum Ground Clearance: 295mm Tail Swing Radius: 860mm Engine Parameters Engine Model: Yanmar 3TNV88 / Kubota D1703 Engine Displacement: 1.642L Maximum Power: 24.4hp (18.2kW) Hydraulic System Parameters Hydraulic System Type: Load-sensing hydraulic system with pilot control Main Hydraulic Pump: Axial piston variable displacement pump Maximum Working Flow: 88.0L/min Maximum Working Pressure: 24.5MPa Travel Hydraulic Motor: Axial piston type with parking brake Maximum Travel Pressure: 24.5MPa Swing Hydraulic Motor: Axial piston type with swing brake Maximum Swing Pressure: 20.6MPa Travel System Parameters Travel Speed (High/Low): 4.4/2.4km/h Maximum Traction Force: 36.8kN Gradeability: 35° Working Device Parameters Boom Length: 2540mm Arm Length: 1400mm Bucket Digging Force: 30.4kN Arm Digging Force: 18.2kN Working Range Parameters Maximum Digging Height: 4855mm Maximum Dumping Height: 3460mm Maximum Digging Depth: 3105mm Maximum Vertical Digging Depth: 2700mm Maximum Ground Digging Radius: 5465mm Other Parameters Fuel Tank Capacity: 50L Hydraulic Oil Tank Capacity: 40L Track Type: Rubber track Number of Track Rollers (Per Side): 4 Number of Top Rollers (Per Side): 1
