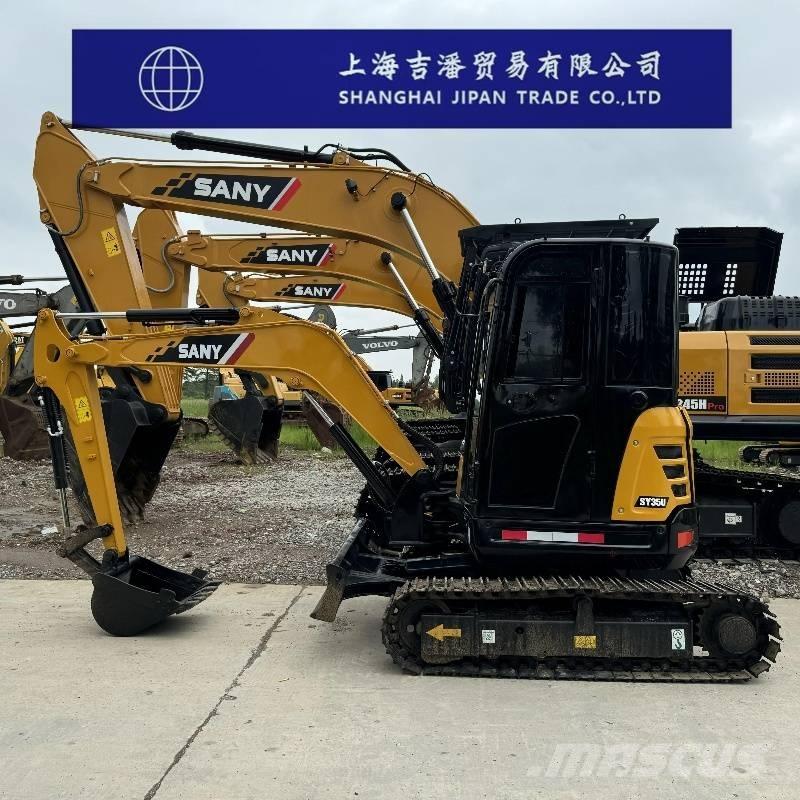

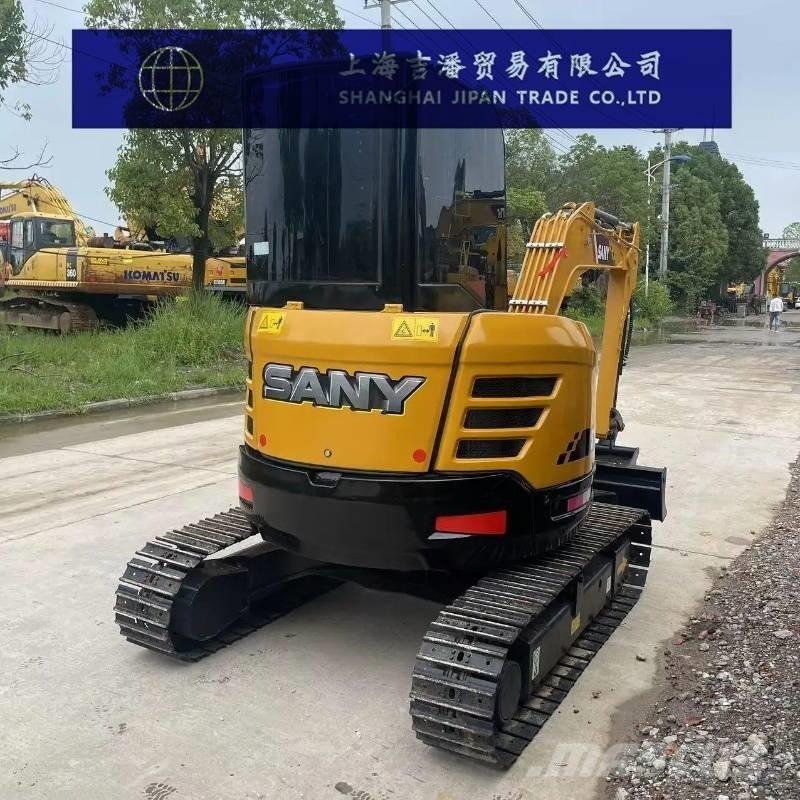

三一重工 SY 35 U
不含税价格
5
收藏
分享
保存搜索打印
信息
类别
小型挖掘机
品牌/型号
三一重工 SY 35 U
生产年份
2023
使用小时
825 小时
国家
中国
一般等级
1
2
3
4
5
马斯客 ID
6669E8B2
定价
选择币种
详细信息
电源类型
柴油机
最新检验记录
2025-10-17
先前车主有几个
1
底盘状态
98%
毛重
3780 公斤
排放标准
第V阶段
履带宽度
400 mm
料斗容积
0.12 m3
运输尺寸(长x宽x高)
4915 x 1720 x 2515 mm
原色
original
发动机
original
发动机输出功率
20.4 kW (27.7 马力)
发动机制造商
original
状态/质保
1 year
成交条件
FCA, FOB, CIF, EXW
证书
EPA环境保护署, CE认证
附属装置
Basic Parameters
Operating Weight: 3720-3920kg
Rated Power: 18.2kW/2200rpm
Bucket Capacity: 0.12m³
Dimension Parameters
Transport Length: 4915mm
Transport Width: 1720mm
Transport Height: 2515mm
Upper Structure Width: 1550mm
Cab Height: 1250mm
Dozer Blade Height: 350mm
Track Width (Standard Shoe): 300mm
Track Gauge: 1420mm
Minimum Ground Clearance: 295mm
Tail Swing Radius: 860mm
Engine Parameters
Engine Model: Yanmar 3TNV88 / Kubota D1703
Engine Displacement: 1.642L
Maximum Power: 24.4hp (18.2kW)
Hydraulic System Parameters
Hydraulic System Type: Load-sensing hydraulic system with pilot control
Main Hydraulic Pump: Axial piston variable displacement pump
Maximum Working Flow: 88.0L/min
Maximum Working Pressure: 24.5MPa
Travel Hydraulic Motor: Axial piston type with parking brake
Maximum Travel Pressure: 24.5MPa
Swing Hydraulic Motor: Axial piston type with swing brake
Maximum Swing Pressure: 20.6MPa
Travel System Parameters
Travel Speed (High/
配件
空调
铲斗
操纵杆
标准挖土铲斗
其他信息
Basic Parameters
Operating Weight: 3720-3920kg
Rated Power: 18.2kW/2200rpm
Bucket Capacity: 0.12m³
Dimension Parameters
Transport Length: 4915mm
Transport Width: 1720mm
Transport Height: 2515mm
Upper Structure Width: 1550mm
Cab Height: 1250mm
Dozer Blade Height: 350mm
Track Width (Standard Shoe): 300mm
Track Gauge: 1420mm
Minimum Ground Clearance: 295mm
Tail Swing Radius: 860mm
Engine Parameters
Engine Model: Yanmar 3TNV88 / Kubota D1703
Engine Displacement: 1.642L
Maximum Power: 24.4hp (18.2kW)
Hydraulic System Parameters
Hydraulic System Type: Load-sensing hydraulic system with pilot control
Main Hydraulic Pump: Axial piston variable displacement pump
Maximum Working Flow: 88.0L/min
Maximum Working Pressure: 24.5MPa
Travel Hydraulic Motor: Axial piston type with parking brake
Maximum Travel Pressure: 24.5MPa
Swing Hydraulic Motor: Axial piston type with swing brake
Maximum Swing Pressure: 20.6MPa
Travel System Parameters
Travel Speed (High/
