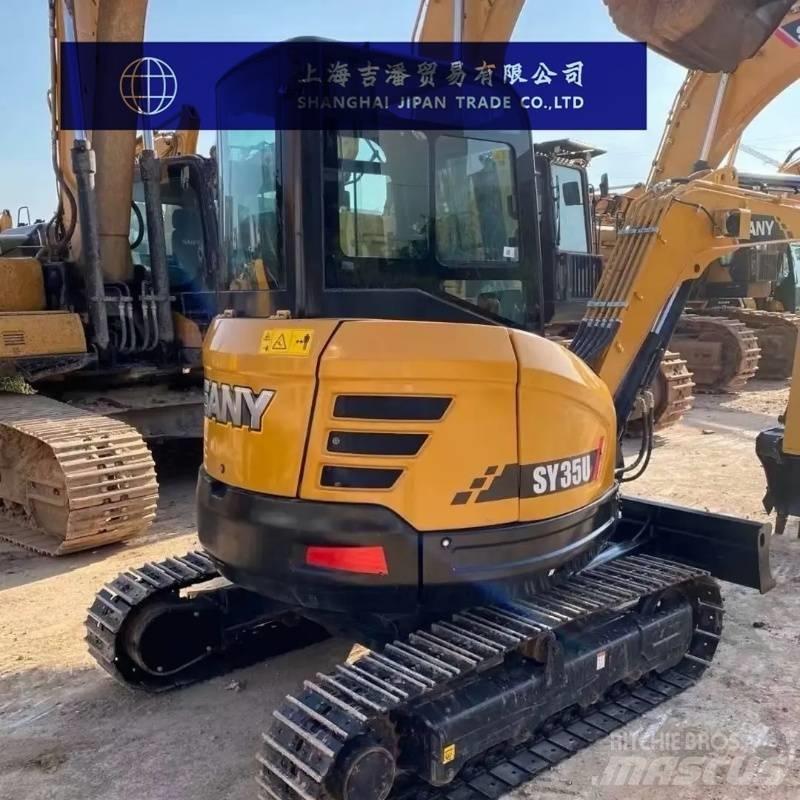

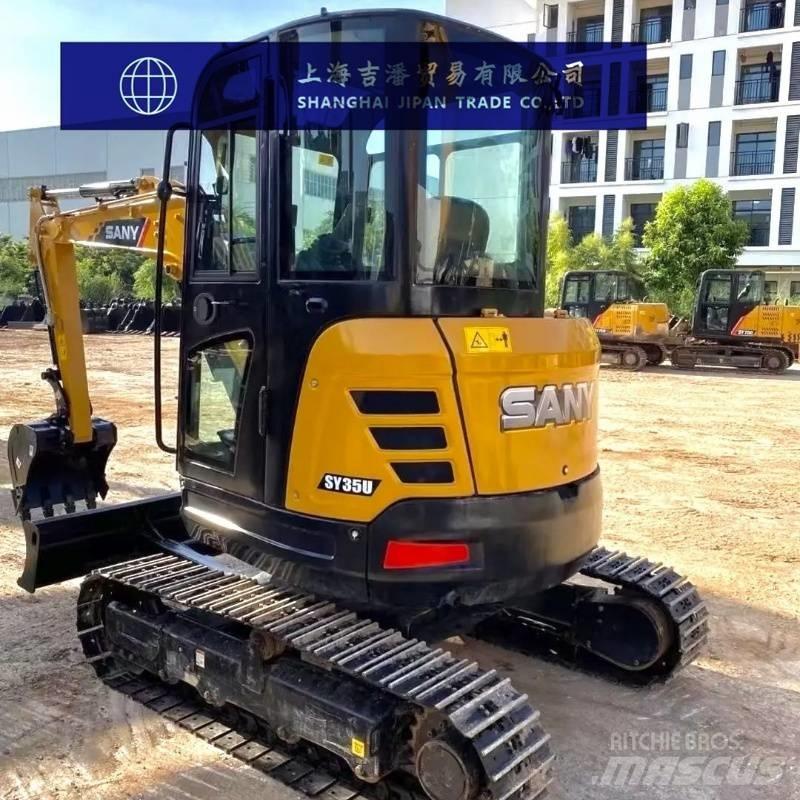

三一重工 SY 35 U

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

三一重工SY35U挖掘机参数配置 规格 动力传统动力 厂商国产 铲斗反铲 吨位(吨)3 整机工作重量(kg)3780 铲斗容量(m³)0.06-0.15(0.12) 性能 回转速度(rpm)9 行走速度(km/h)4.4/2.4 爬坡能力(%)58 接地比压(Kpa)32 铲斗挖掘力(kN)30.4 斗杆挖掘力(kN)18.2 动力系统 发动机型号洋马3TNV88 Stages3A EPA int4 额定功率(kw/rpm)20.4/2200 最大扭矩(N.m)107/1300 排量(L)1.642 冷却方式水冷 油类容量 燃油箱(L)40 液压油箱(L)40 发动机油更换量(L)6 主体尺寸 运输总长度(mm)4915 运输总宽度(mm)1720 运输总高度(mm)2515 履带接地长度(mm)1670 履带总长度(mm)2155 履带板宽度(mm)300 履带轨距(mm)1420 最小离地间隙(mm )295 后端回转半径(mm )860 托链轮数（单侧）(个)1 支重轮数（单侧）(个)4 作业范围 最大挖掘半径(mm)5465 最大挖掘深度(mm)3105 最大挖掘高度(mm)4855 最大卸载高度(mm)3460 最大垂直挖掘深度(mm)2700 推土铲举升或推深(mm)375/370
