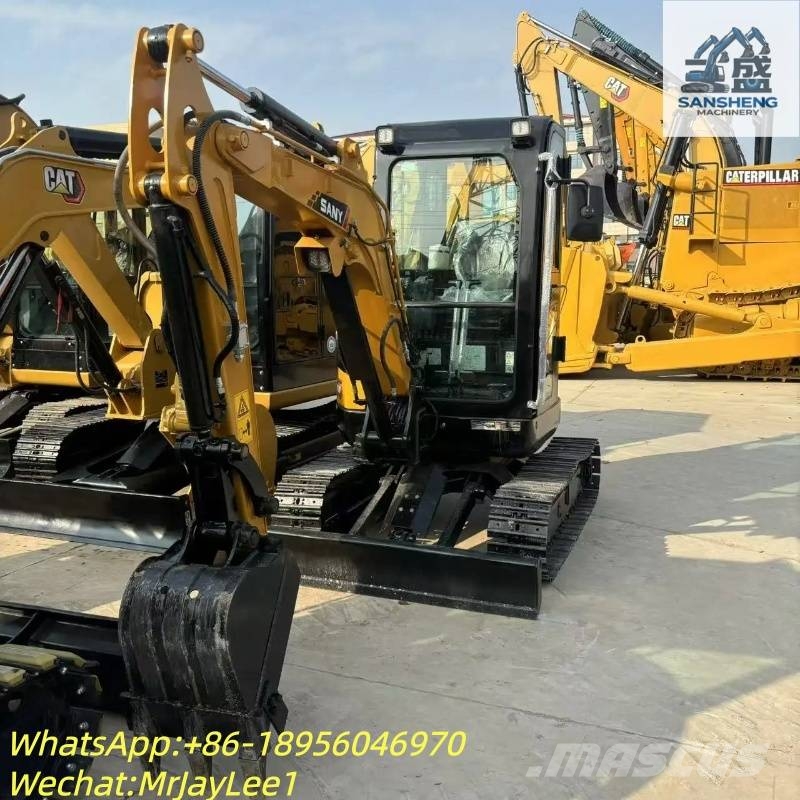

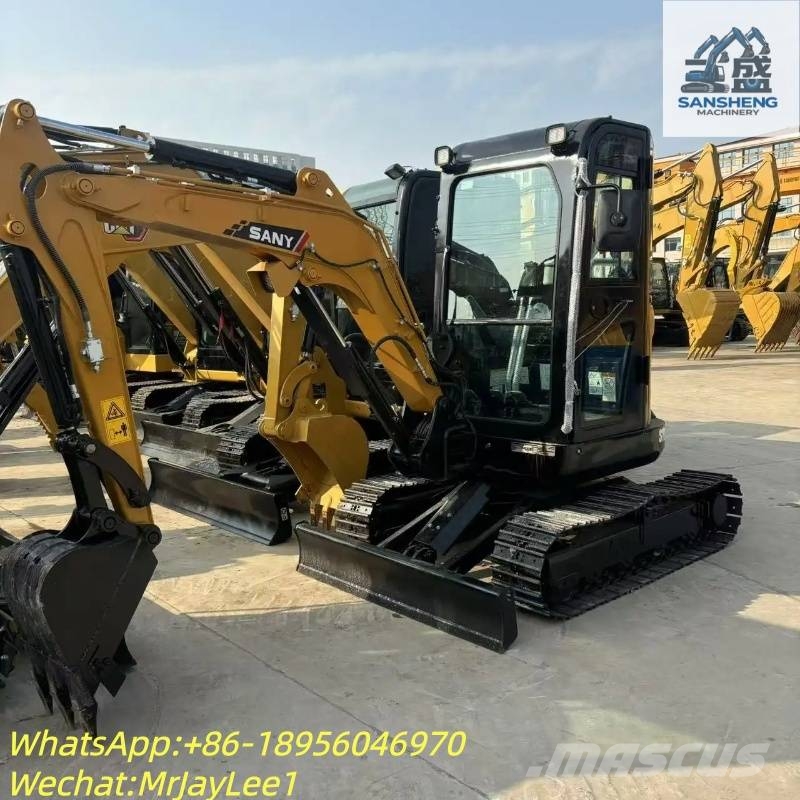

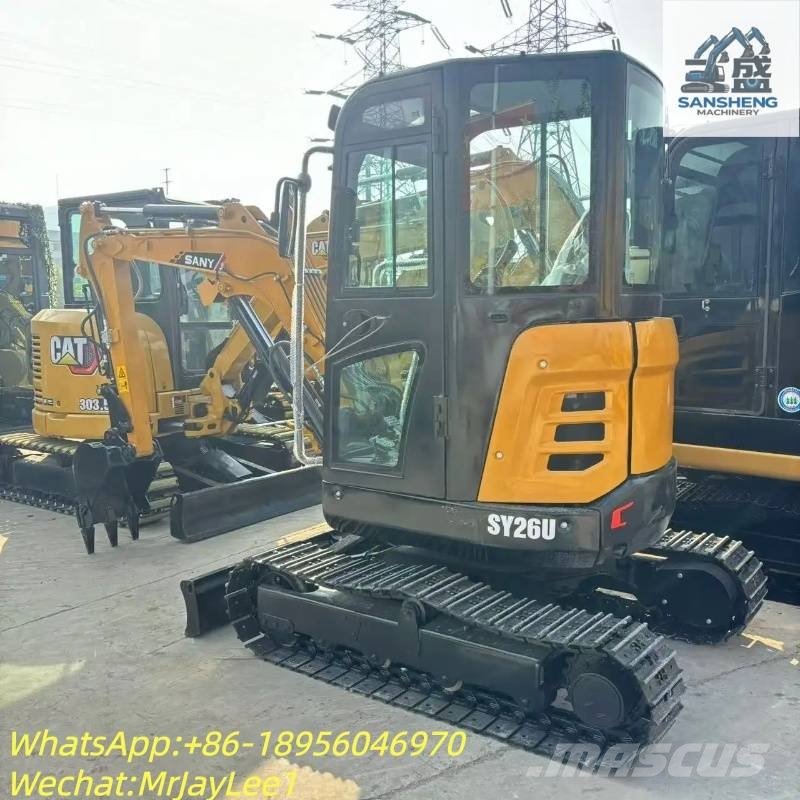

三一重工 SY 26 U

Power: Traditional power Manufacturer: Domestic Bucket type: Counterbalanced bucket Tonnage (tons): 2 Overall machine working weight (kg): 2680 Bucket capacity (m³): 0.04 - 0.08 (0.06) Performance Rotation speed (rpm) 10 Travel speed (km/h) 4.5/2.6 Grade climbing capacity (%) 47 Ground contact pressure (Kpa) 25.5 Bucket digging force (kN) 24.3 Bucket arm digging force (kN) 14.2 Power system Engine model: Yanmar 3TNV80F Rated power (kw/rpm) 15.2/2500 Maximum torque (N.m) 63.2-67.4/1800 ± 100 Displacement (L) 1.266 Oil capacity Fuel tank (L) 34 Hydraulic tank (L) 30 Engine oil replacement volume (L) 3.4/1.6 Main body dimensions Total transport length (mm) 4285 Total transport width (mm) 1550 Total transport height (mm) 2430 Track ground contact length (mm) 1560 Total track length (mm) 2005 Track plate width (mm) 300 Track gauge (mm) 1250 Minimum ground clearance (mm) 290 Minimum turning radius of the front working device (mm) 2110 Turning radius of the rear end (mm) 775 Maximum height when the minimum turning radius is reached (mm) 3200 Number of supporting wheels (single side) (pieces) 3 Operating range Maximum digging radius (mm) 4850 Maximum digging depth (mm) 2820 Maximum digging height (mm) 4410 Maximum unloading height (mm) 3100 Maximum vertical digging depth (mm) 2585 Tilting plate width × height (mm) 300 (height) Tilting shovel lift or push depth (mm) 360/330
