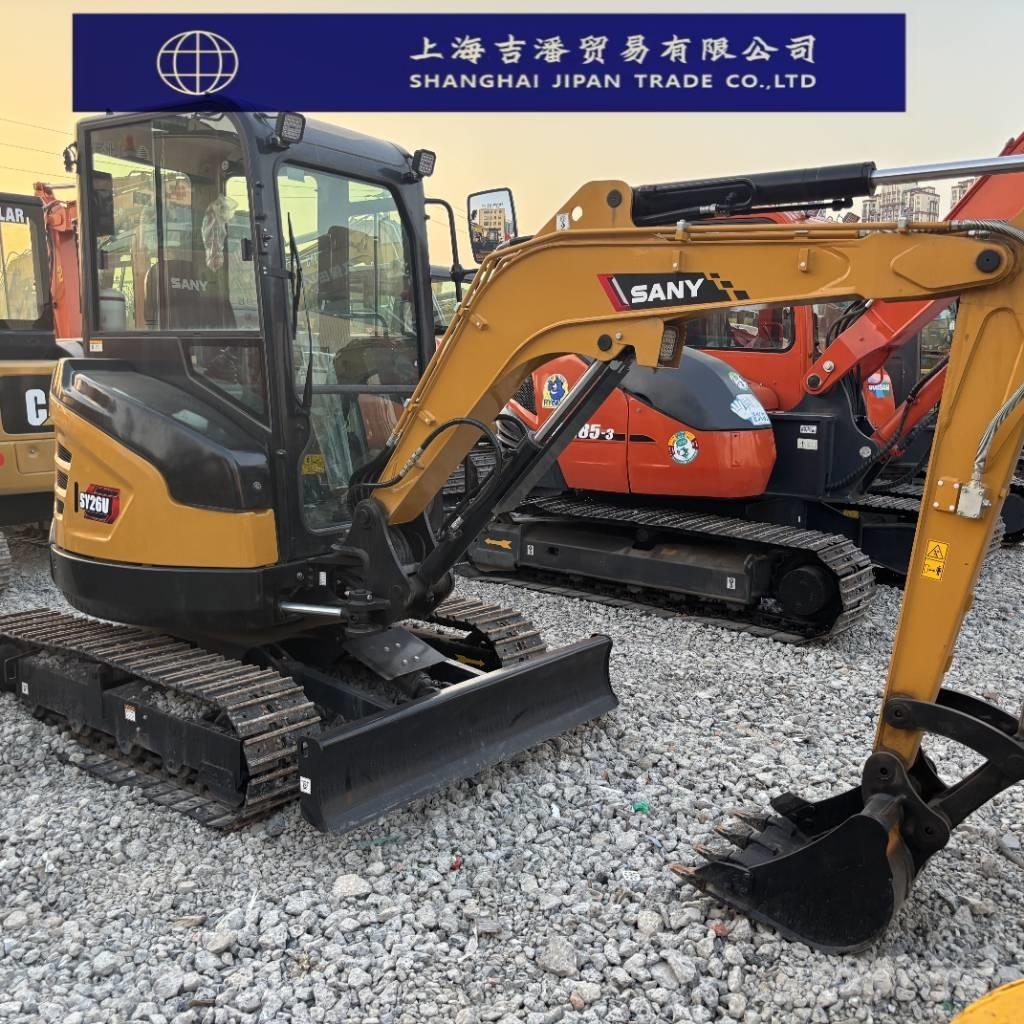

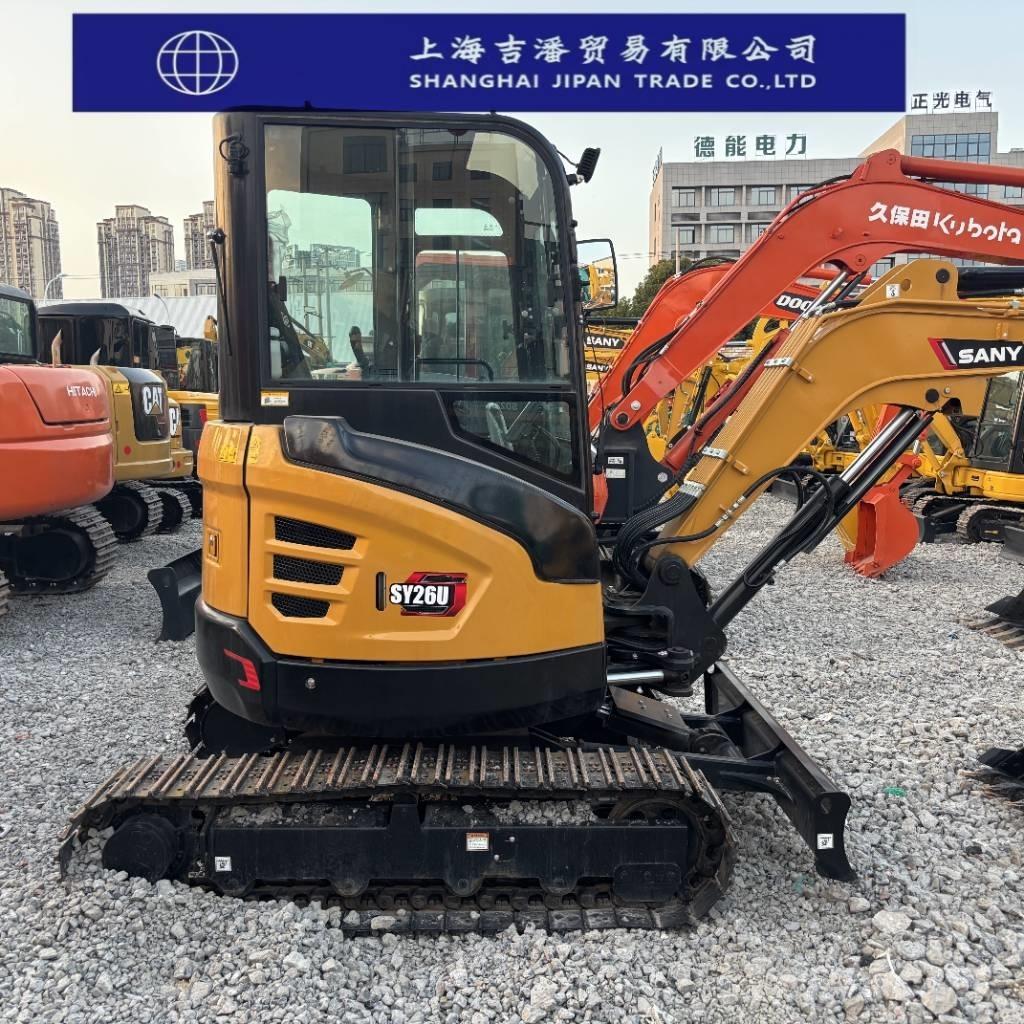

三一重工 SY 26 U

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Parameters: Operating Weight: 2680kg Bucket Capacity: 0.04-0.08 (0.07) m³ Power: 15.4/2400 kW/rpm Performance Parameters: Gradeability: 58% Swing Speed: 10 rpm Ground Pressure: 26 kPa Bucket Digging Force: 27.9 kN Arm Digging Force: 14.2 kN Travel Speed: 4.5/2.6 km/h Undercarriage Parameters: Track Width: 300mm Carrier Rollers per Side: 4 Top Rollers: 1 Oil and Coolant Capacities: Fuel Tank: 34L Hydraulic Oil Tank: 27L Engine Oil: 3.5/1.8L Radiator: Water radiator 2.4L / Oil radiator 1.7L Final Drive: 2×0.6L Engine Parameters: Model: D1105 Rated Power: 15.4/2400 kW/rpm Maximum Torque: 71.4 N·m Displacement: 1.123L
