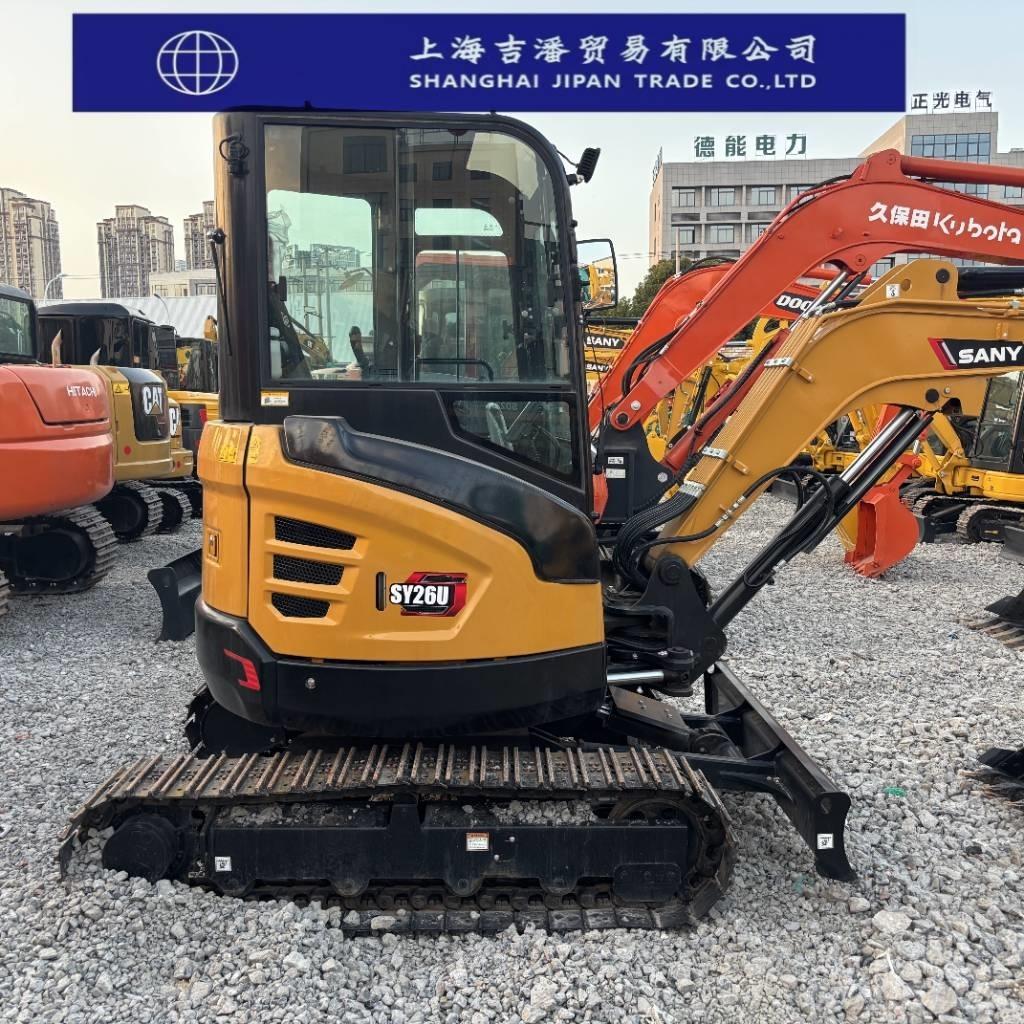

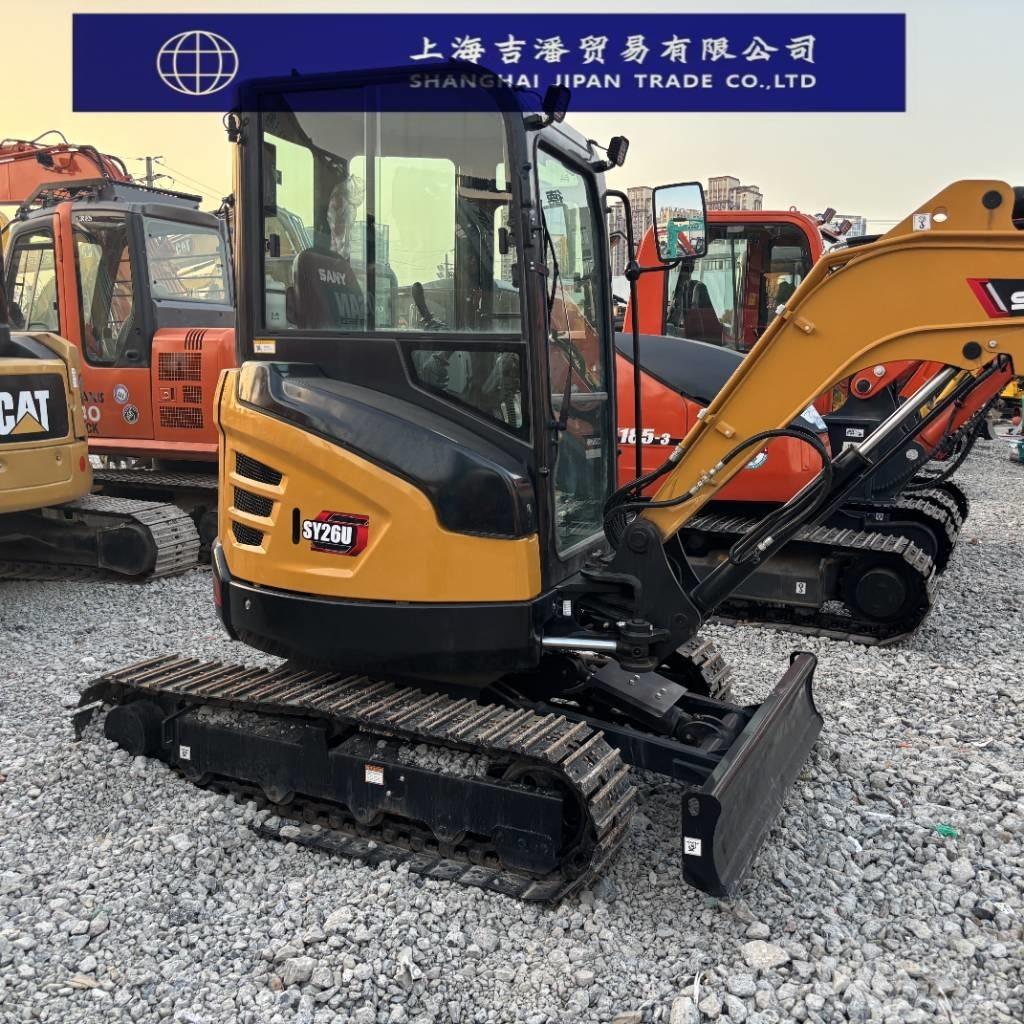

三一重工 SY 26 U

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

三一重工SY26U挖掘机 参数配置 规格 动力传统动力 厂商国产 铲斗反铲 吨位(吨)2 整机工作重量(kg)2680 铲斗容量(m³)0.04-0.08(0.06) 性能 回转速度(rpm)10 行走速度(km/h)4.5/2.6 爬坡能力(%)47 接地比压(Kpa)25.5 铲斗挖掘力(kN)24.3 斗杆挖掘力(kN)14.2 动力系统 发动机型号洋马3TNV80F 额定功率(kw/rpm)15.2/2500 最大扭矩(N.m)63.2-67.4/1800±100 排量(L)1.266 油类容量 燃油箱(L)34 液压油箱(L)30 发动机油更换量(L)3.4/1.6 主体尺寸 运输总长度(mm)4285 运输总宽度(mm)1550 运输总高度(mm)2430 履带接地长度(mm)1560 履带总长度(mm)2005 履带板宽度(mm)300 履带轨距(mm)1250 最小离地间隙(mm )290 前段工作装置最小回转半径(mm)2110 后端回转半径(mm )775 最小回转半径时的最大高度(mm)3200 支重轮数（单侧）(个)3 作业范围 最大挖掘半径(mm)4850 最大挖掘深度(mm)2820 最大挖掘高度(mm)4410 最大卸载高度(mm)3100 最大垂直挖掘深度(mm)2585 推土板宽度×高度(mm)300（高度） 推土铲举升或推深(mm)360/330
