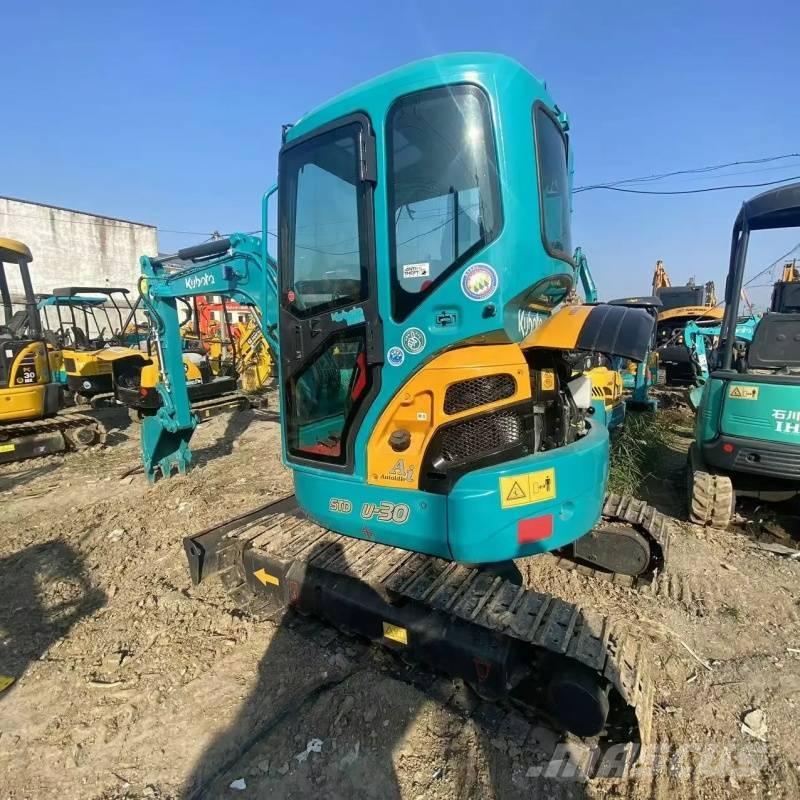

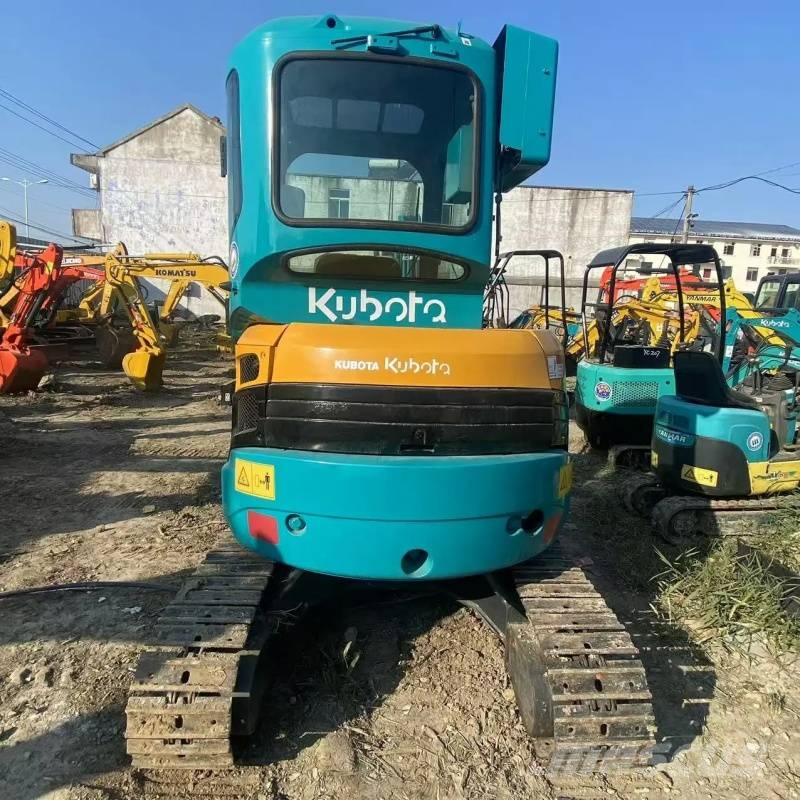

久保田 U30‑5

Company name:LONG WAY TRADING CO.,LTD Address:1898th Zaoxiang road ,Anyang City ,Henan province,China Contact: Nancy Tel : +8617739124690 WhatsApp:0086 13636464634 Wechat:17739124690 Email:

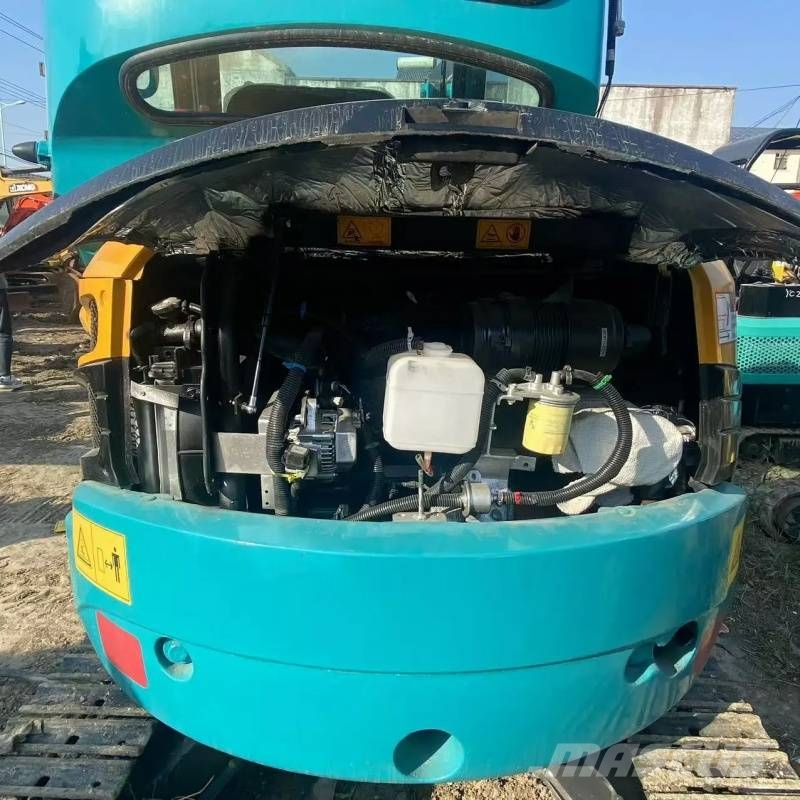

### Engine - Model: Kubota D1703‑E4, 3‑cylinder water‑cooled diesel - Displacement: 1.647 L - Rated power: **18.5 kW (25.1 HP) @2200 rpm** - Fuel tank capacity: 45.1 L - Emission: China Stage‑IV; Overseas Stage IIIA / Tier4 ### Weight & Transport Dimensions (Canopy, steel track) - Operating weight: **3648 kg (Canopy) / 3815 kg (Cabin)** - Transport L×W×H: **4573 × 1550 × 2482 mm** - Ground clearance: 287 mm - Tail swing radius: **900 mm (true zero‑tail)** ### Undercarriage - Track shoe width: **300 mm** (rubber / steel) - Track length on ground: 2081 mm - Travel speed: Low 3.0 km/h, High **4.6 km/h** - Max climbing angle: 30° - Swing speed: 9 rpm ### Hydraulic System - Pump: 2‑variable piston pumps + 2‑gear pumps - Total main flow: 72 L/min; System pressure: 20 MPa - **Auxiliary hydraulic flow: 21 L/min**, with third return line for breaker hammer - Bucket breakout force: **29.5 kN** ### Bucket - Standard bucket capac
