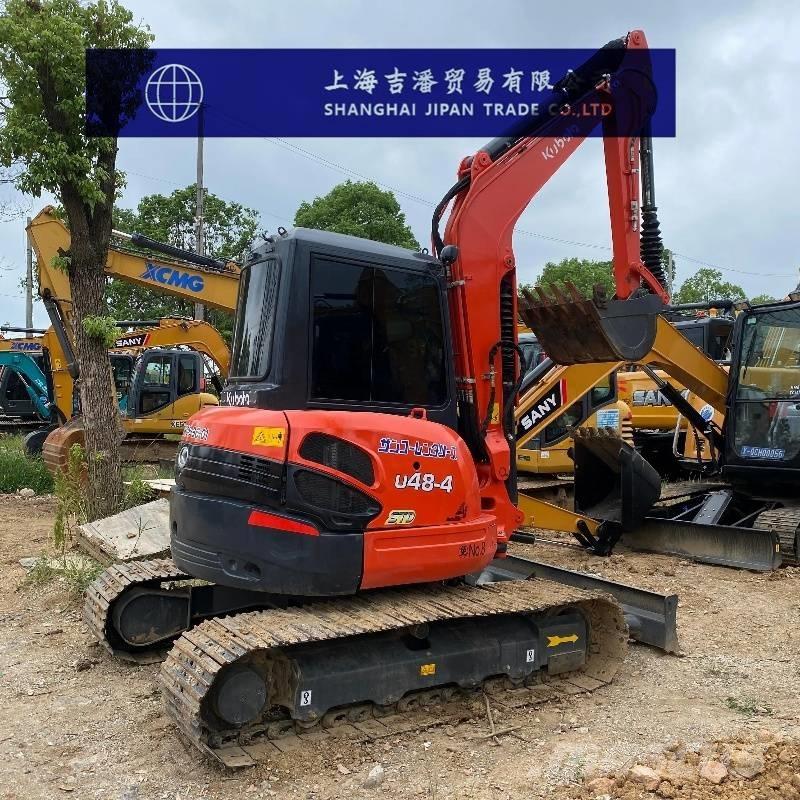

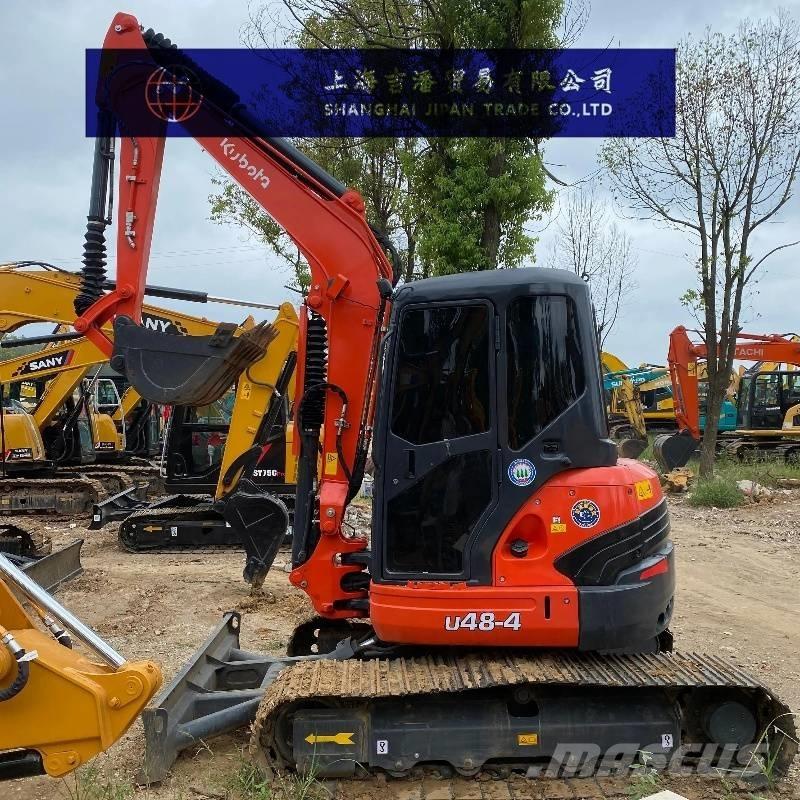

久保田 U 48-4

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Engine: Model: Kubota V2607-DI Rated Power: Net power 40.2 hp (29.7 kW), gross power 41.8 hp (31.2 kW) Emission Standard: Interim Tier 4 Number of Cylinders: 4 Displacement: 2615cc Rated Speed: 2200rpm Operating Weight: 4760kg with canopy, 4850kg with cab Dimensions: Length: 5330mm Width: 1960mm Height (canopy/cab): 2550mm Minimum Ground Clearance: 310mm Travel System: Track Length: 2500mm Track Width: 400mm Ground Pressure (canopy): 0.275kgf/cm² Ground Pressure (cab): 0.279kgf/cm² Travel Speed: Low 2.8km/h, high 4.9km/h Maximum Traction Force: 5440kgf Hydraulic System: Pump Flow: 118.8L/min Auxiliary Hydraulic Flow (Aux1): 70L/min Auxiliary Hydraulic Flow (Aux2): 37L/min Maximum Bucket Digging Force: 3360kgf Maximum Arm Digging Force: 2245kgf Swing Speed: 9.3rpm Boom Swing Angle (Left/Right): 70°/55° Working Range: Maximum Digging Height: 5440mm Maximum Dumping Height: 3770mm Maximum Digging Depth: 3380mm Maximum Vertical Digging Depth: 2670mm Bucket: Standard Bucket Capacity: 0.12m³ Maximum Bucket Width: 1960mm Fuel and Hydraulic Oil Capacity: Fuel Tank Capacity: 68L Hydraulic Tank Capacity: 45L Hydraulic System Oil Volume: 79L Engine Oil Capacity: 9L
