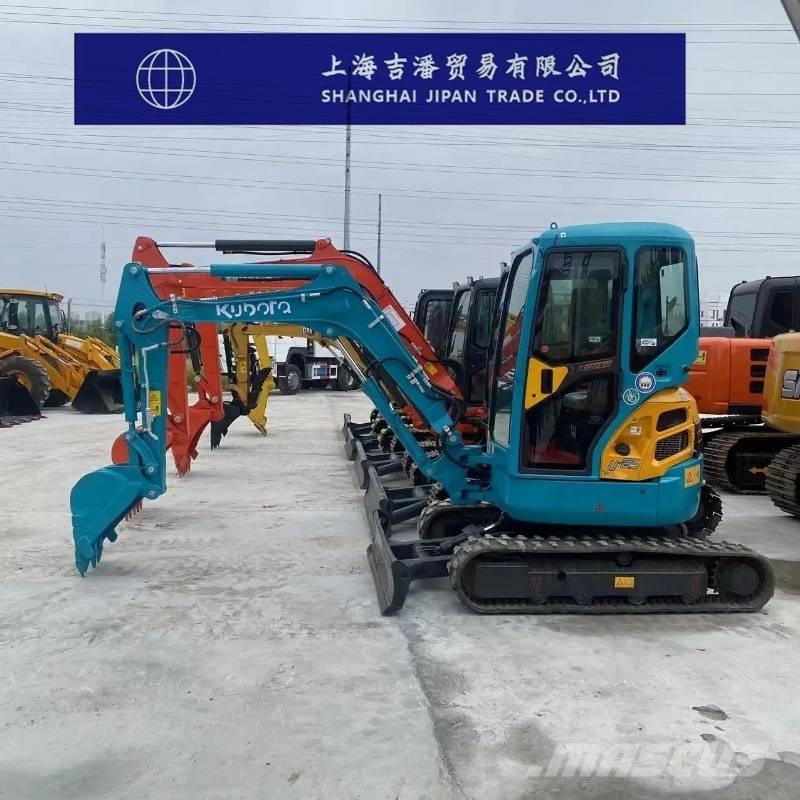

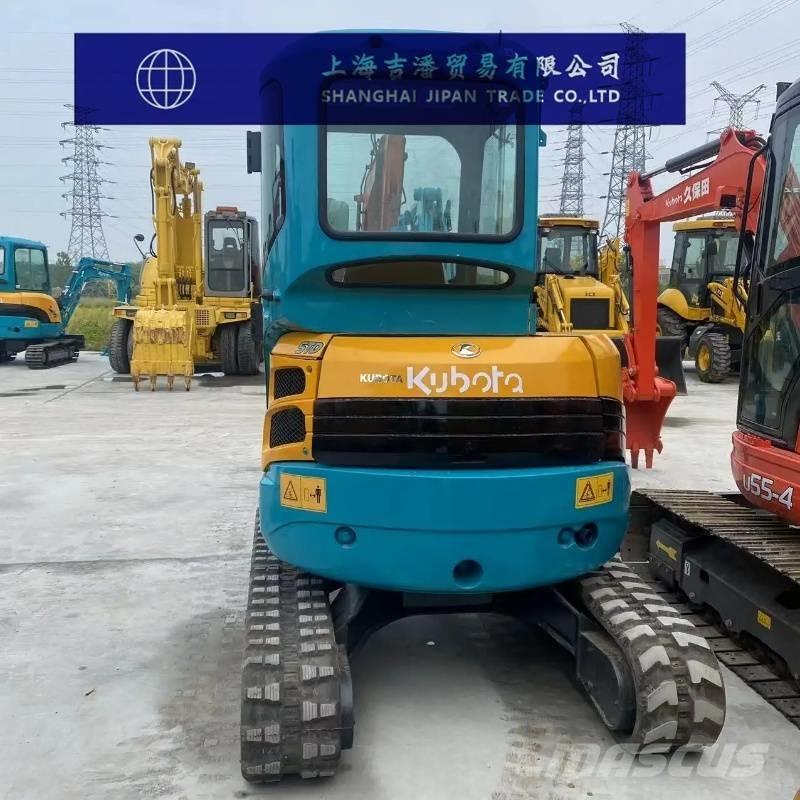

久保田 U 25

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Information Model: U25 Type: Mini Excavator Brand: Kubota Operating weight: 2551.5 kg Operating weight (imperial): 5625 lbs (approximately 2552 kg) Power System Engine model: Kubota D1105-E4 Engine type: Water-cooled 4-stroke diesel engine Rated power (SAE J1995 gross): 20.9 hp (15.6 kW) / 2400 rpm Rated power (SAE J1349 net): 19.8 hp (14.8 kW) / 2400 rpm Displacement: 68.5 cubic inches (1123 cc) Bore × Stroke: 3.1 × 3.1 inches Compression ratio: 24:1 Fuel type: Diesel Dimension Parameters Overall length: 13 feet 7 inches (4150 mm) Overall height: 7 feet 11 inches (2420 mm) Overall width: 4 feet 11 inches (1500 mm) Minimum ground clearance: 11.2 inches (285 mm) Track length: 6 feet 7 inches (2000 mm) Track shoe width: 11.8 inches (300 mm) Travel System Travel speed (low): 1.6 mph (2.5 km/h) Travel speed (high): 2.9 mph (4.5 km/h) Maximum traction force: 6745 lbs (3060 kgf) Climbing ability: 36° Work Equipment Parameters Bucket digging force: 5765 lbs (2615 kgf) Arm digging force: 2745 lbs (1245 kgf) Swing speed: 9.8 rpm Boom swing angle (left): 75° Boom swing angle (right): 55° Digging depth: 9 feet 3 inches (2820 mm) Vertical digging depth: 6 feet 5 inches (1950 mm) Digging height: 14 feet 10 inches (4520 mm) Digging radius: 15 feet 8 inches (4780 mm) Dumping height: 126 inches (3200 mm) Hydraulic System Main pump type: Piston pump × 2, Gear pump × 1 Main pump flow: 7.6 gallons/minute (28.8 L/min) for piston pumps × 2; 5.1 gallons/minute (19.2 L/min) for gear pump × 1 Auxiliary hydraulic flow: 12.7 gallons/minute (48 L/min) Other Parameters Fuel tank capacity: 7.4 gallons (28 L) Engine oil capacity: 1.2 gallons (4.5 L) Cooling system capacity: 0.6 gallons (2.3 L) Hydraulic system oil capacity: 5.8 gallons (22 L)
