久保田 KX 183

Company name:LONG WAY TRADING CO.,LTD Address:1898th Zaoxiang road ,Anyang City ,Henan province,China Contact: Nancy Tel : +8617739124690 WhatsApp:0086 13636464634 Wechat:17739124690 Email:

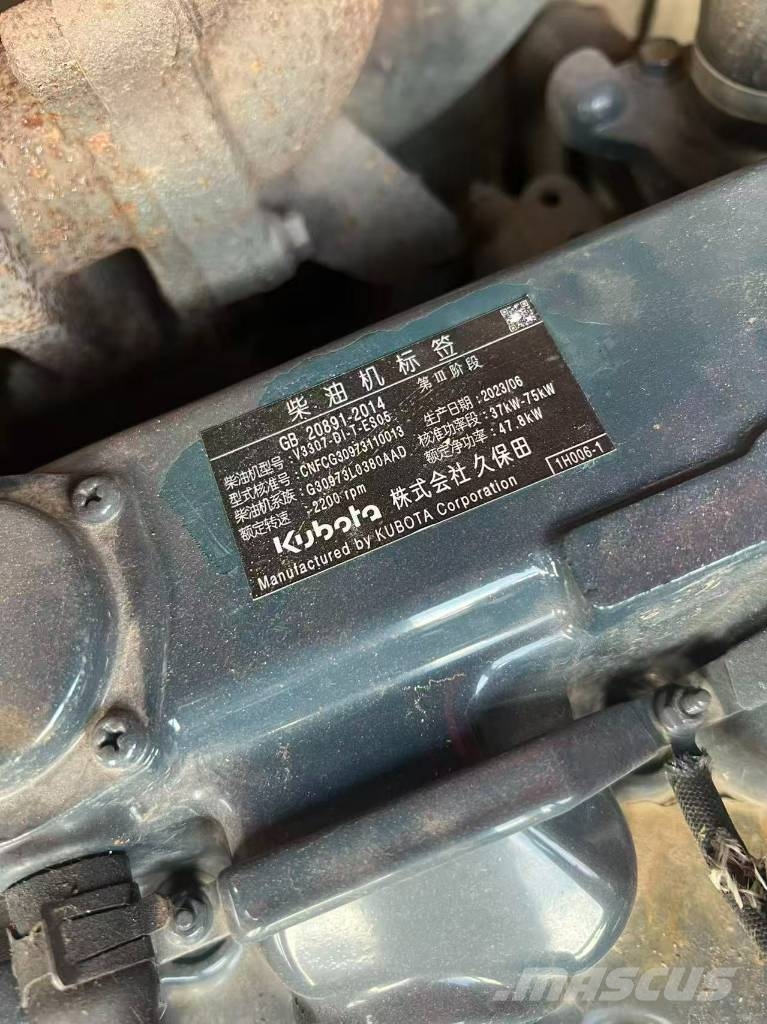

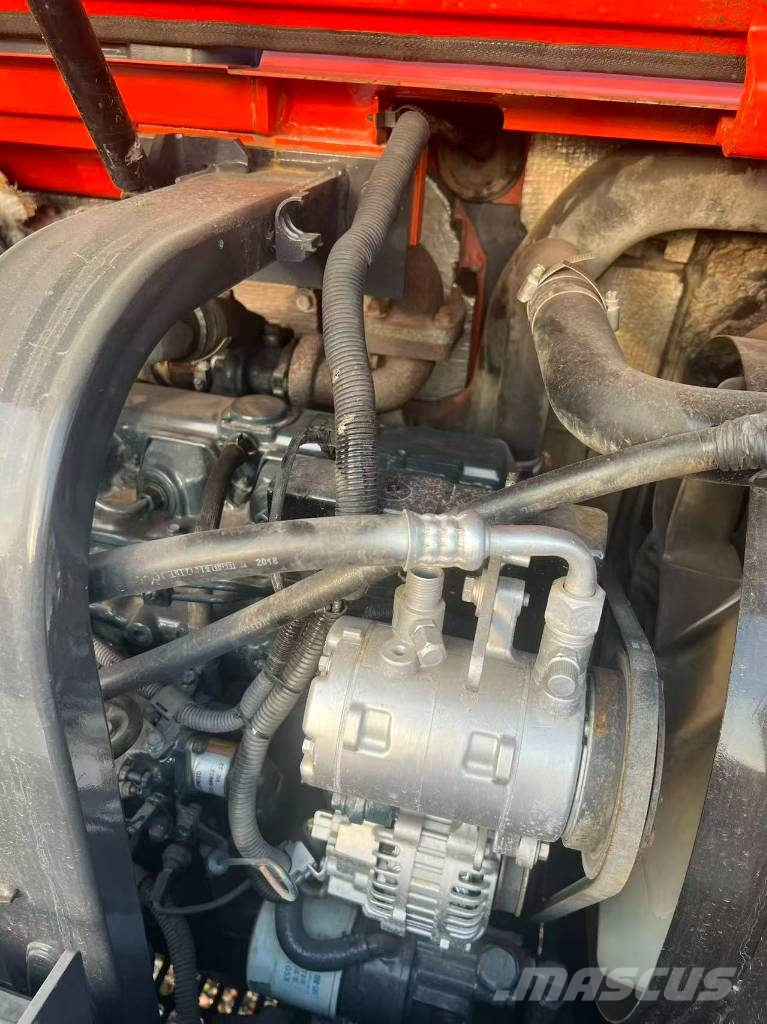

## 🔧 Engine - Model: **Kubota V3307-DI-T** turbo diesel engine - Net rated power: 47.8 kW (64.1 hp) @2000 rpm - Displacement: 3.331 L - Emission: EU Stage IIIA / China Stage III, no DPF ## ⚖️ Weight & Counterweight - Operating weight (cab, steel tracks, standard bucket): **8350 kg** - Zero tail swing design ## 📐 Transport Dimensions (L × W × H) **6450 mm × 2200 mm × 2530 mm** - Track shoe width: **450 mm** - Track gauge: 1750 mm ## 🦾 Front Working Equipment - Boom length: 3700 mm - Standard stick: 1800 mm - Bucket capacity: **0.31 m³**, bucket width 750 mm - Max digging depth: **4290 mm** - Max digging radius:7010 mm - Bucket breakout force: 62.5 kN - Arm breakout force: 48.2 kN ## 🧪 Hydraulic System - 3-pump load sensing hydraulic system - Main pump total flow: 172 L/min - Main working pressure: 250 bar - Dual auxiliary hydraulic lines as standard - Aux1 max flow:85 L/min - Aux2 max flow:40 L/min - Swing speed:9.5 rpm ## 🛢️ Tank Capacities - Fuel tank: 115 L - Hydraulic tank:75 L; total hydraulic system volume:146 L ## 🚜 Travel System - Max travel speed: Low 2.7 km/h, High 4.9 km/h - Max traction force:72 kN - Gradeability: 30° - Ground pressure (steel track):36.2 kPa ## 📌 Other Key Points 1. **CE Certification**: EU version available with CE Stage IIIA 2. **Fuel Consumption**: Normal earthwork approx. 5.5～7 L/h 3. Feature: Zero tail swing, offset boom, double auxiliary hydraulic lines, powerful digging force 4. Application: Municipal engineering, trenching, landscaping, foundation, medium earthwork
