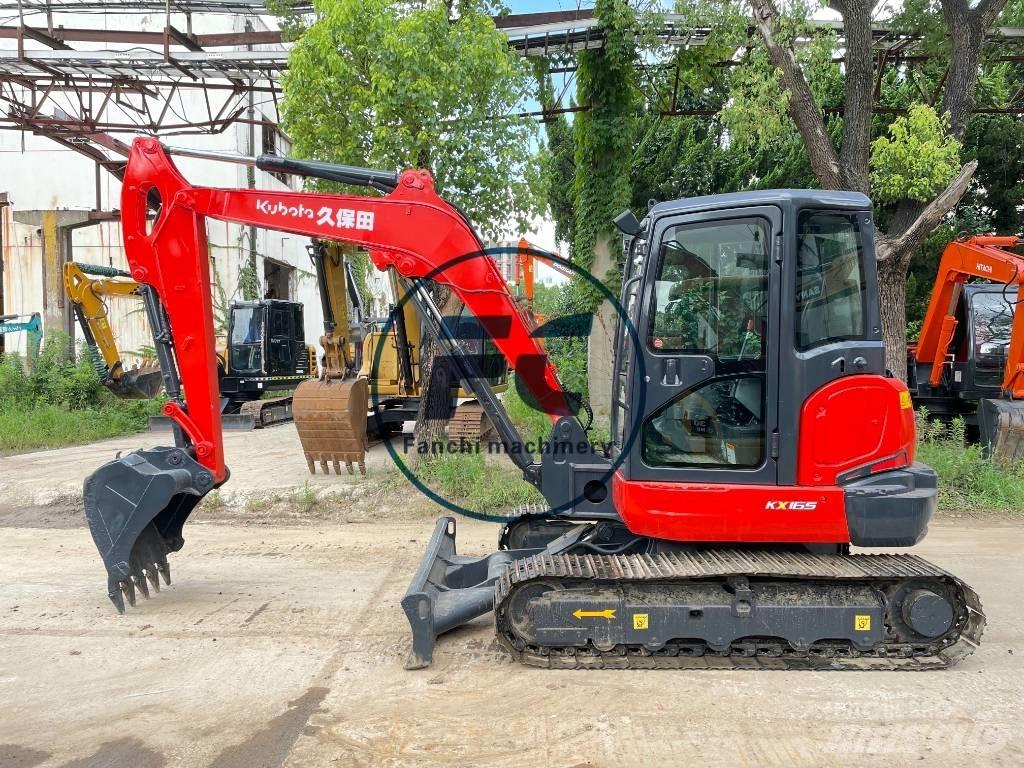

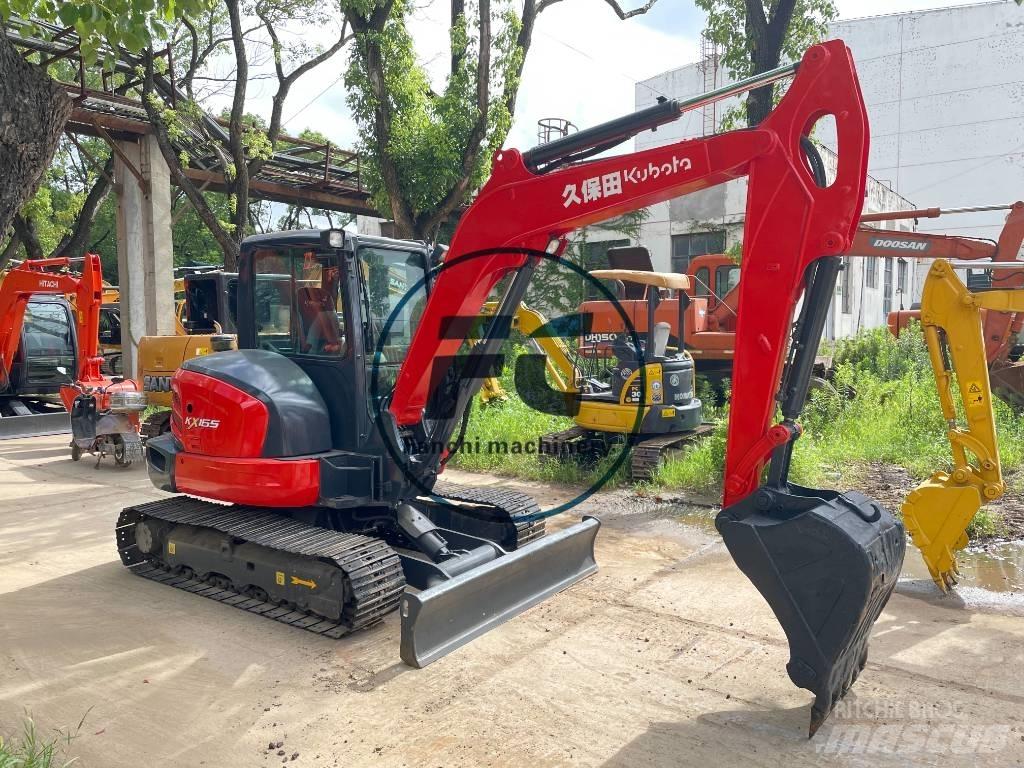

Kubota KX165-5 Excavator Product Description
The Kubota KX165-5 is a high-performance 6-ton class excavator, featuring an advanced hydraulic system and a powerful Kubota V2607-DI engine, ensuring efficient and reliable operation. Suitable for various working conditions, it offers excellent digging capability and stable control performance.
Main Specifications
Operating Weight: 5540 kg
Bucket Capacity: 0.24 m³
Power Type: Conventional Power
Bucket Type: Backhoe
Origin: Japan
Performance Features
Swing Speed: 9.3 rpm
Travel Speed: 2.7/4.6 km/h
Gradeability: 30°
Bucket Digging Force: 40.1 kN
Power System

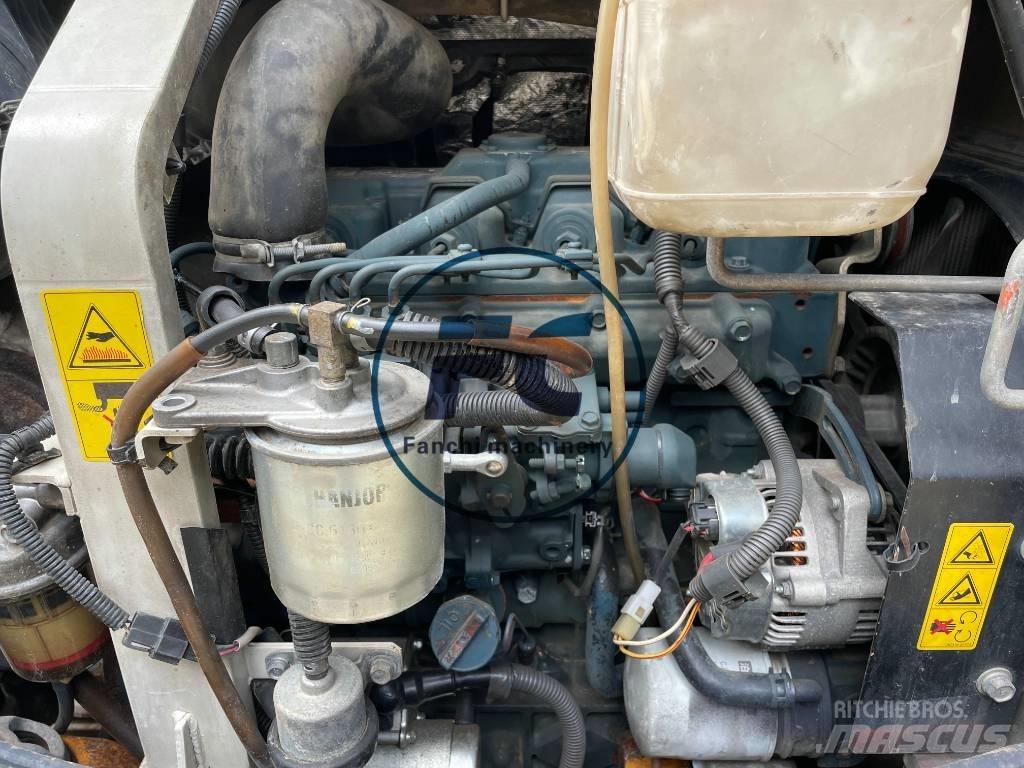

Engine Model: Kubota V2607-DI
Rated Power: 48.3 kW / 2200 rpm
Displacement: 2.615 L
Hydraulic System
Main Pump Type: Variable Pump × 2 + Gear Pump × 2
Travel Hydraulic Motor: Piston Hydraulic Motor, 2F
Swing Hydraulic Motor: Piston Hydraulic Motor
Fuel & Fluid Capacity
Fuel Tank Capacity: 75 L
Dimensions
Overall Length: 5520 mm
Overall Width: 1960 mm
Overall Height: 2550 mm
Track Length: 2500 mm
Track Shoe Width: 400 mm
Track Gauge: 1560 mm
Minimum Ground Clearance: 310 mm
Minimum Front Swing Radius: 2420 mm
Rear Swing Radius: 1270 mm
Operating Range
Maximum Digging Radius: 6295 mm
Maximum Digging Depth: 3920 mm
Maximum Digging Height: 5860 mm
Maximum Dumping Height: 4125 mm
Maximum Vertical Digging Depth: 2890 mm
Dozer Blade Size (Width × Height): 1960 × 410 mm
Dozer Blade Lift / Dig Depth: 400 / 410 mm显示更多
