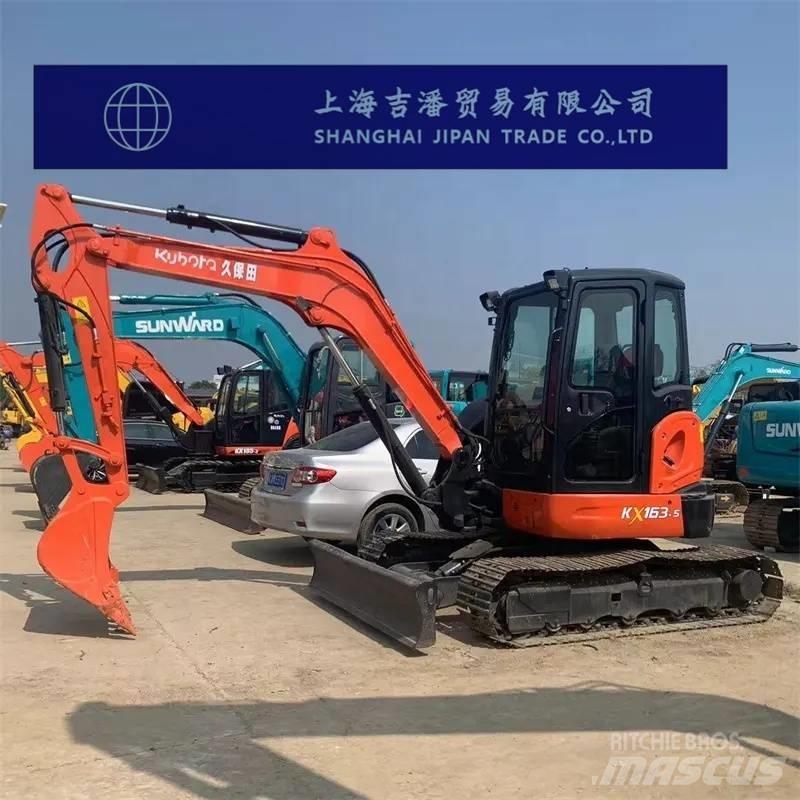

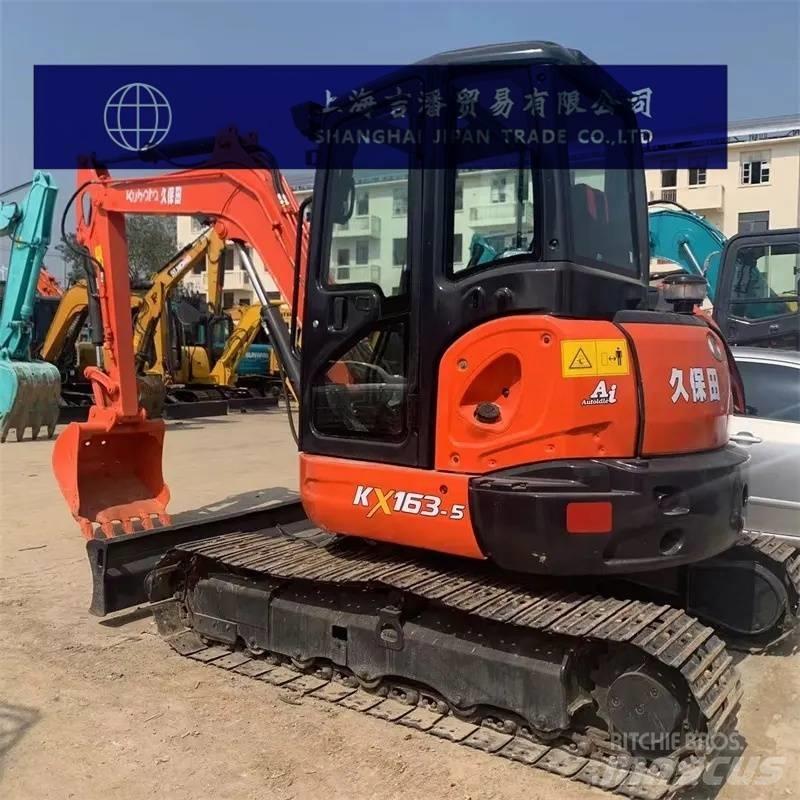

久保田 KX 163-5

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Kubota KX163-5 excavator parameter configuration Specification Power, traditional power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)6 The overall working weight of the machine (kg) is 5595 Bucket width (mm)680/630 Bucket capacity (m³)0.22 Origin: Japan Performance Rotational speed (rpm)9.3 Walking speed (km/h) : 2.7/4.6 Bucket digging force (kN)40.1 Power system The engine model is Kubota V2607-E3 Rated power (kw/rpm)35.5/2200 Displacement (L) : 2.615 The working form is direct spray Hydraulic system The main pump type is variable pump ×2+ gear pump ×2 Rotary hydraulic motor type plunger hydraulic motor Walking hydraulic motor type plunger hydraulic motor, 2F Oil capacity Fuel tank (L)68 Main body size Total transportation length (mm) : 5500 Total transportation width (mm) : 1960 Total transportation height (mm) : 2550 The total length of the track (mm) is 2500 Track plate width (mm)400 Track gauge (mm) : 1560 Minimum ground clearance (mm)310 The minimum turning radius (mm) of the front-end working device is 2460 The rear end rotation radius (mm) is 1045 Scope of work Maximum excavation radius (mm) : 6140 The maximum excavation radius (mm) of the shutdown surface is 6005 Maximum excavation depth (mm) : 3690 Maximum excavation height (mm) : 5685 Maximum unloading height (mm) : 3950 The maximum vertical excavation depth (mm) is 2670 Width × height (mm) of the earthmoving board: 1960*410 Bulldozer lift or push depth (mm)440/410
