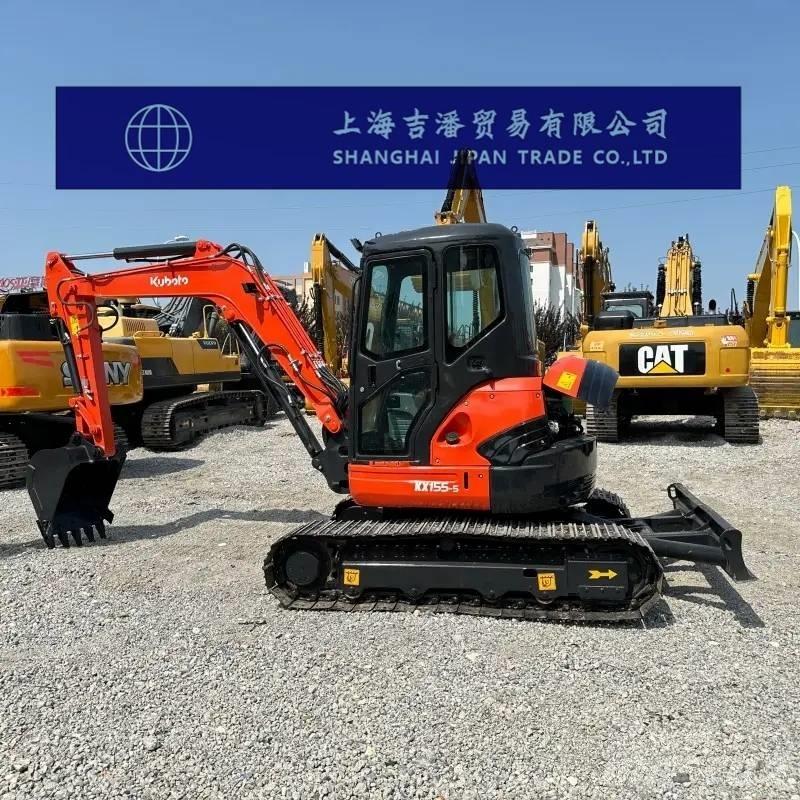

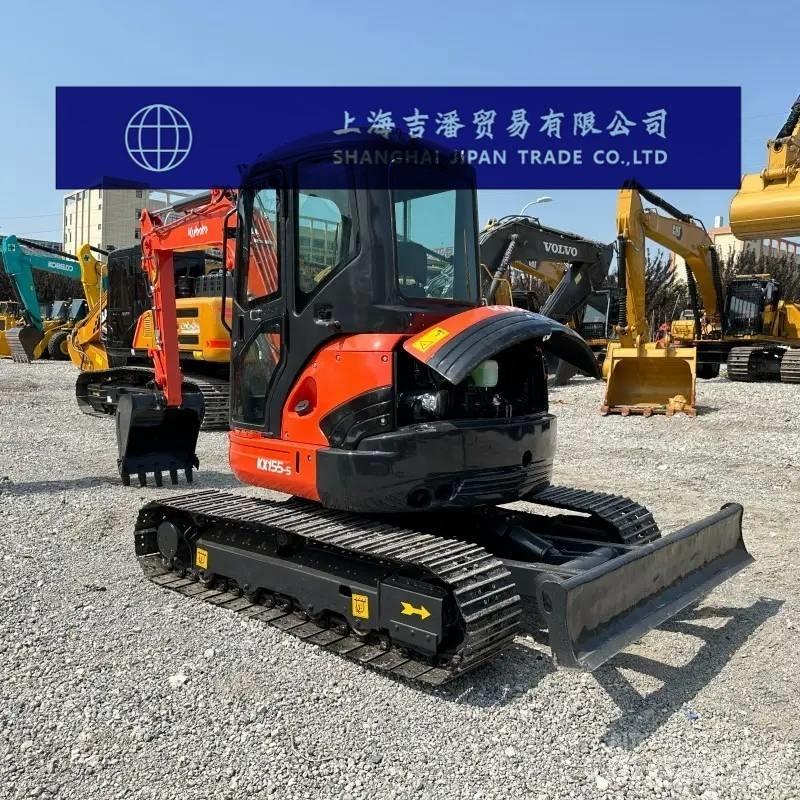

久保田 KX 155-5

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Kubota KX155-5 excavator Specification Power Traditional Power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)5 The working weight of the entire machine (kg) is 5190 Bucket width (mm) : 730/680 Bucket capacity (m³)0.19 Performance Rotational speed (rpm) : 9.3 Walking speed (km/h)2.7/4.7 The digging force of the bucket arm (kN) is 36.5 Power system Engine model: V2403-E3 Rated power (kw/rpm) : 29.2/2200 Displacement (L)2.434 Hydraulic system The main pump types are variable pump x1+ gear pump x1 The rotary hydraulic motor type is a plunger hydraulic motor Oil capacity Fuel tank (L)100 Main body size Total transportation length (mm) : 5510 Total transportation width (mm) : 1960 The total transportation height (mm) is 2540 The total length of the track (mm) is 2500 Track plate width (mm) : 400 Track gauge (mm) : 1560 Minimum ground clearance (mm) : 320 Rear end turning radius (mm) : 1060 Scope of work Maximum excavation radius (mm) : 5995 Maximum excavation depth (mm) : 3560 Maximum excavation height (mm) : 5630 Maximum unloading height (mm) : 4000 The maximum vertical excavation depth (mm) is 2890 The width × height (mm) of the bulldozer board is 1960x360 The bulldozer shovel lifts or deepens (mm)445/375
