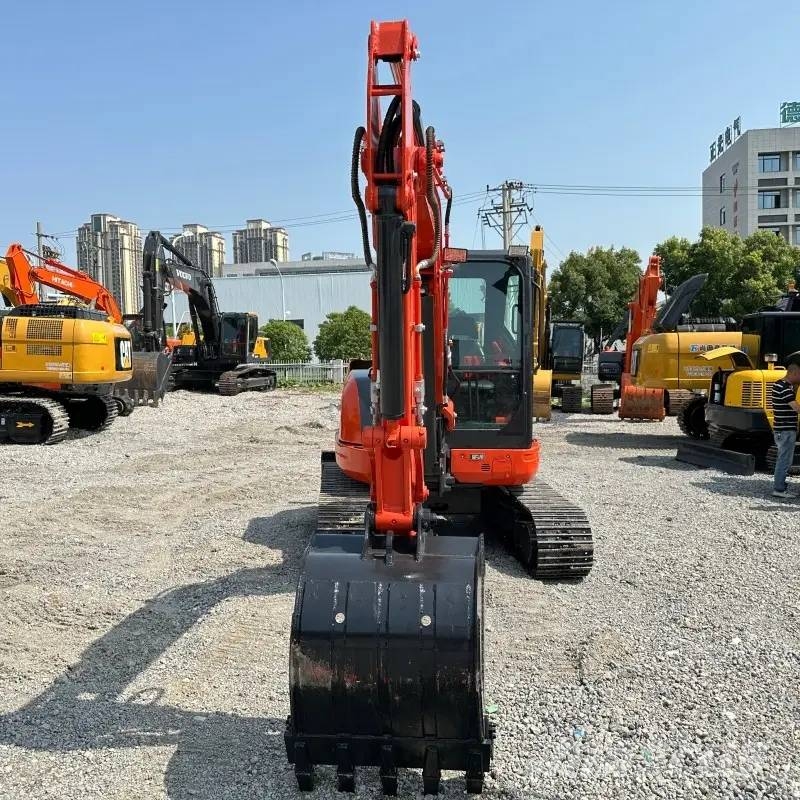

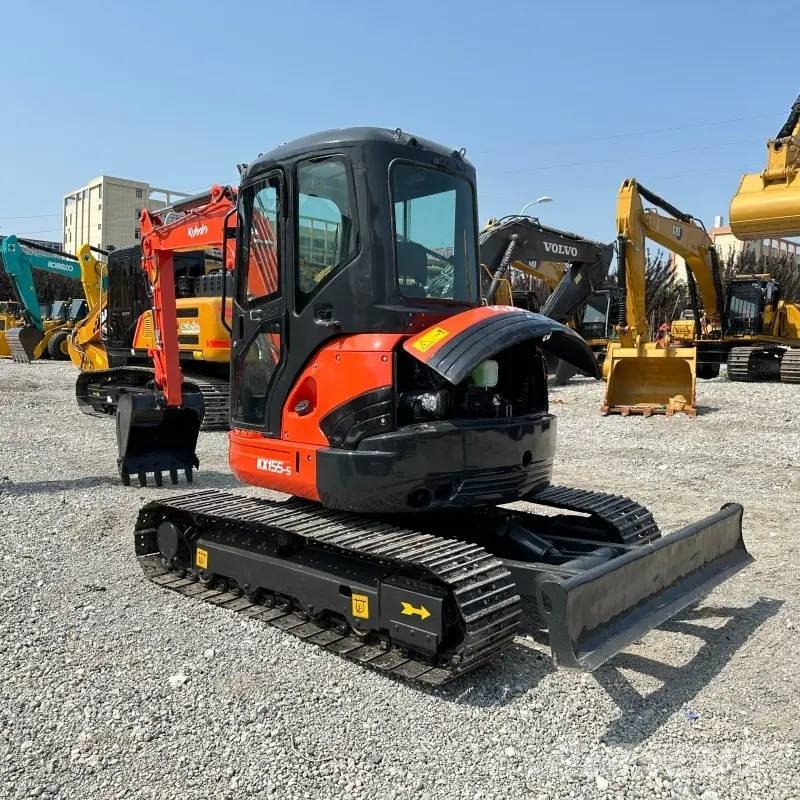

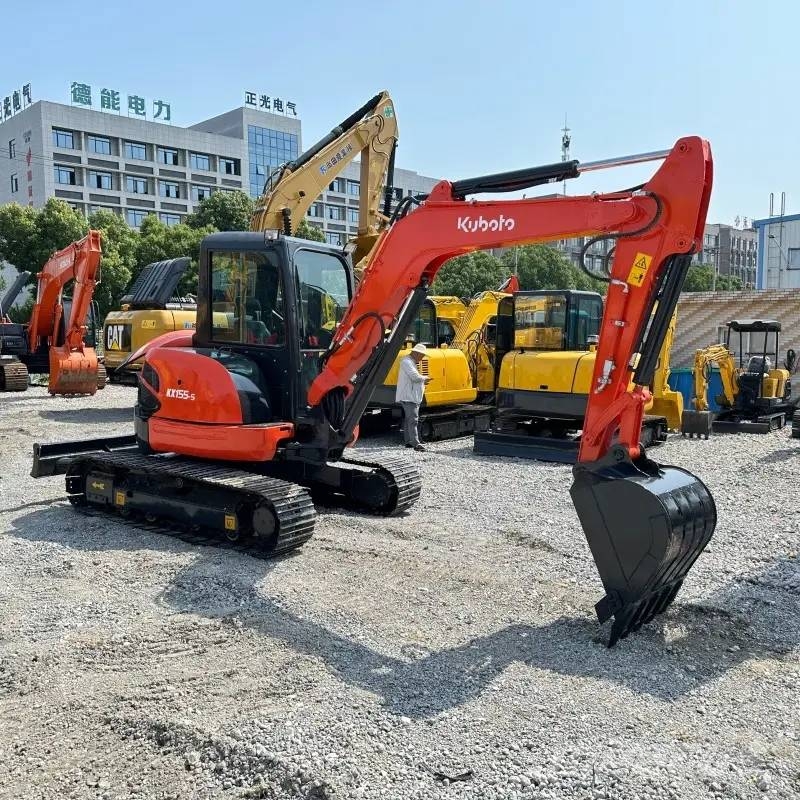

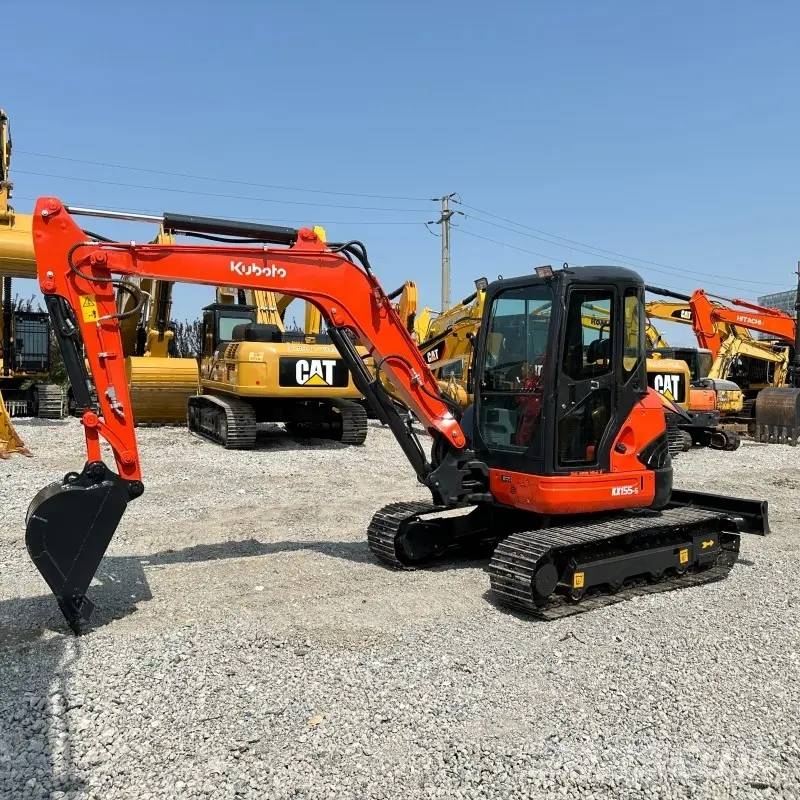

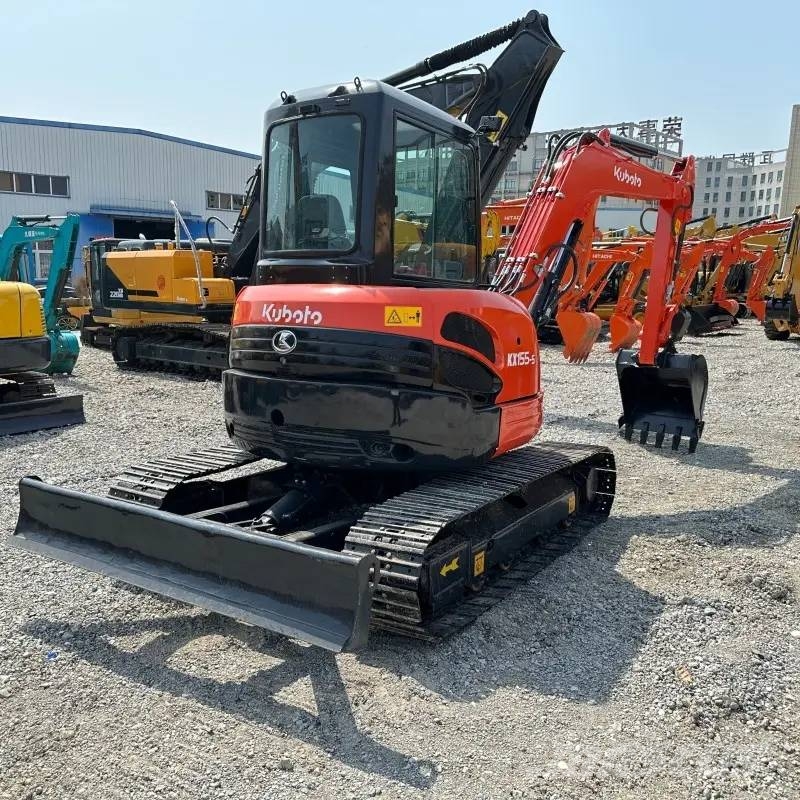

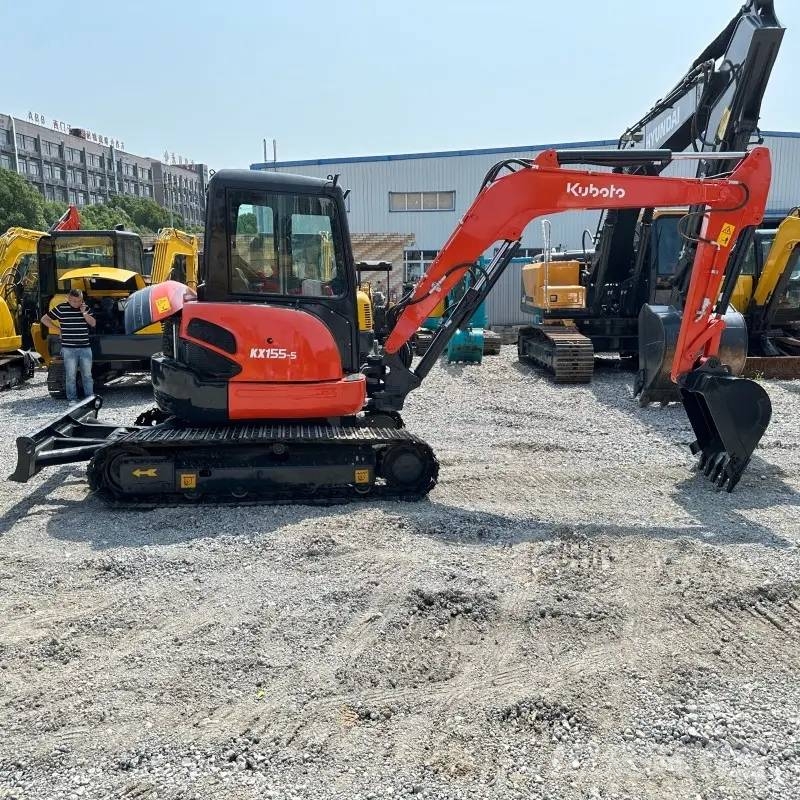

久保田 KX 155-5

# KUBOTA KX155-5 Crawler Excavator Specifications Model: KUBOTA KX155-5 Operating Weight: 5190 kg Bucket Capacity: 0.16 m³ Transport Dimensions (L×W×H): 5510 × 1960 × 2540 mm Track Shoe Width: 400 mm Travel Speed (High/Low): 4.3 / 2.5 km/h Swing Speed: 9.3 rpm Bucket Digging Force: 36.5 kN Arm Digging Force: 27.2 kN Max Digging Depth: 3560 mm Max Digging Radius: 5995 mm Max Dumping Height: 4000 mm Gradeability: 30° Ground Pressure: 35 kPa ## Engine Engine Model: KUBOTA V2403-M-DI-E3 Rated Net Power: 29.2 kW / 2200 rpm Displacement: 2.434 L Engine Type: 4-stroke, water-cooled, 4-cylinder diesel ## Hydraulic System Main Pump: 1 variable displacement pump + 1 gear pump Fuel Tank: 100 L Hydraulic Tank: 52 L Auxiliary Hydraulic Output: 34 L/min
