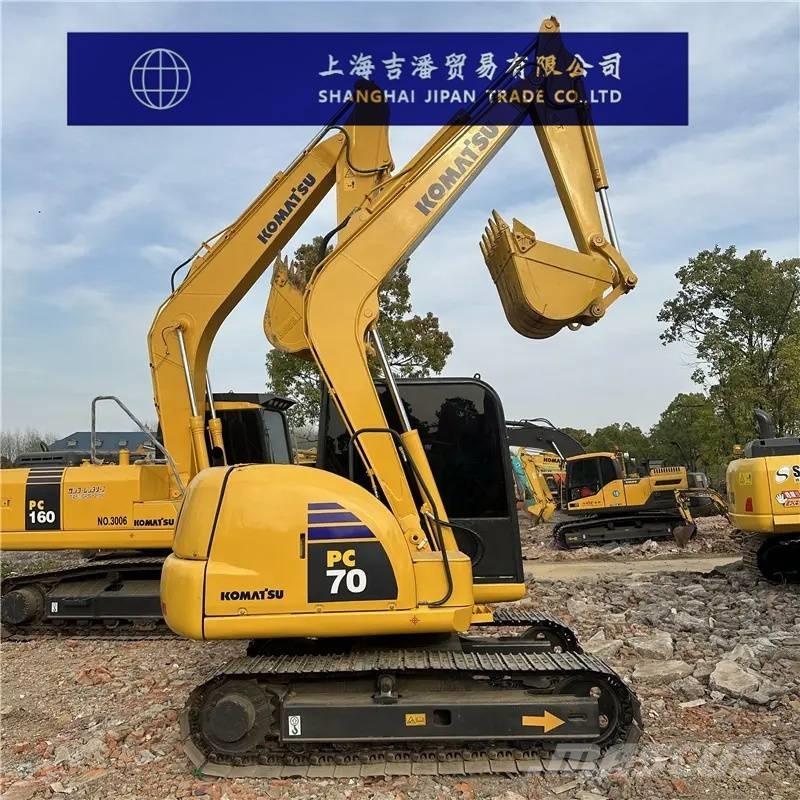

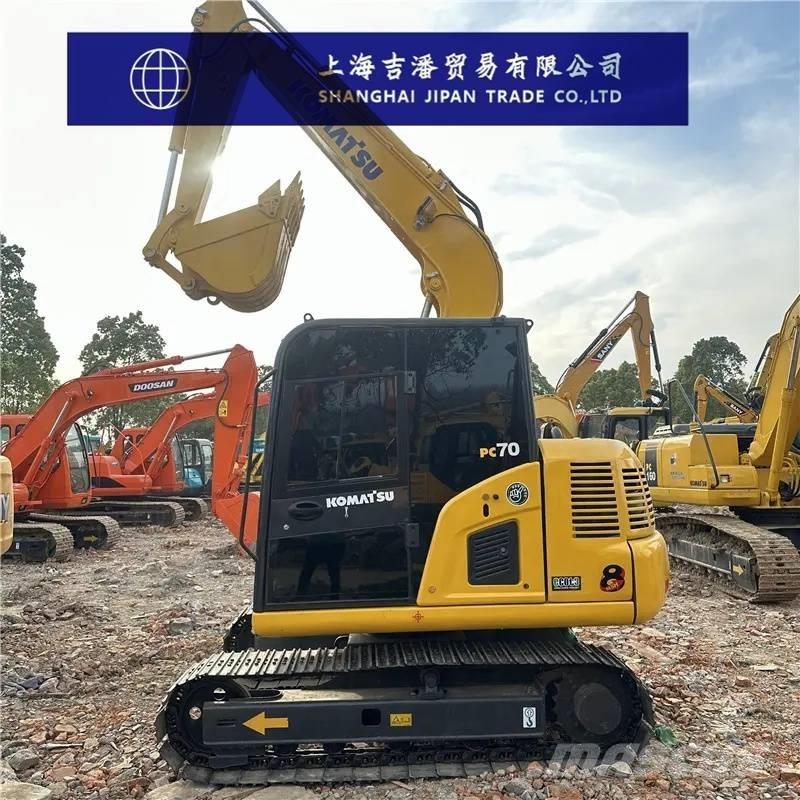

小松 PC 70

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Parameters Operating Weight: 6500kg Rated Power: 48.5kW (66PS) Engine Model: Komatsu SAA4D95LE-5 Bucket Capacity: 0.32-0.39m³ Dimension Parameters Overall Length: 6080mm Overall Width: 2225mm Overall Height: 2620mm Track Ground Contact Length: 2130mm Total Track Length: 2765mm Track Shoe Width: 450mm Total Track Width: 2150mm Track Gauge: 1700mm Minimum Ground Clearance: 350mm Counterweight Ground Clearance: 750mm Rear Swing Radius: 1750mm Performance Parameters Travel Speed: High speed 4.5km/h, Low speed 2.8km/h Maximum Bucket Digging Force: 54.8kN (5590Kgf) Maximum Arm Digging Force: 38.2kN (3900Kgf) Swing Speed: 11rpm Ground Pressure: 30.2Kpa Maximum Traction Force: 56.4kN Working Range Parameters Maximum Digging Height: 7150mm Maximum Dumping Height: 5015mm Maximum Digging Depth: 4100mm Maximum Vertical Digging Depth: 3505mm Maximum Digging Radius: 6360mm Maximum Digging Radius at Ground Level: 6220mm Power System Parameters Engine Rated Speed: 1950rpm Engine Displacement: 3.26L Number of Cylinders: 4 Bore × Stroke: 95mm × 115mm Cooling System: Water-cooled Operation Type: Turbocharged, after-cooled Hydraulic System Parameters Main Pump Type: Variable displacement piston pump Maximum Main Pump Flow: 172L/min Pilot Circuit Pressure: 2.9MPa Working Hydraulic Circuit Pressure: 24.5MPa Travel Hydraulic Circuit Pressure: 24.5MPa Swing Hydraulic Circuit Pressure: 21.1MPa Boom Cylinder: 1-115mm × 840mm Arm Cylinder: 1-100mm × 865mm Bucket Cylinder: 1-90mm × 710mm Fluid Capacity Parameters Fuel Tank: 130L Hydraulic Oil Tank: 95L Engine Oil Change Capacity: 12.5L Undercarriage System Parameters Top Rollers (per side): 1 Track Shoes (per side): 38 Carriers Rollers (per side): 5 Track Tensioning Device: Grease tensioning Track Shoe Type: Three-tooth track shoe Operation Configuration Steering Control: Dual joysticks (with pedals) Cab: Spacious, comfortable, and quiet, with excellent front and rear visibility, equipped with a large-capacity automatic air conditioning system.
