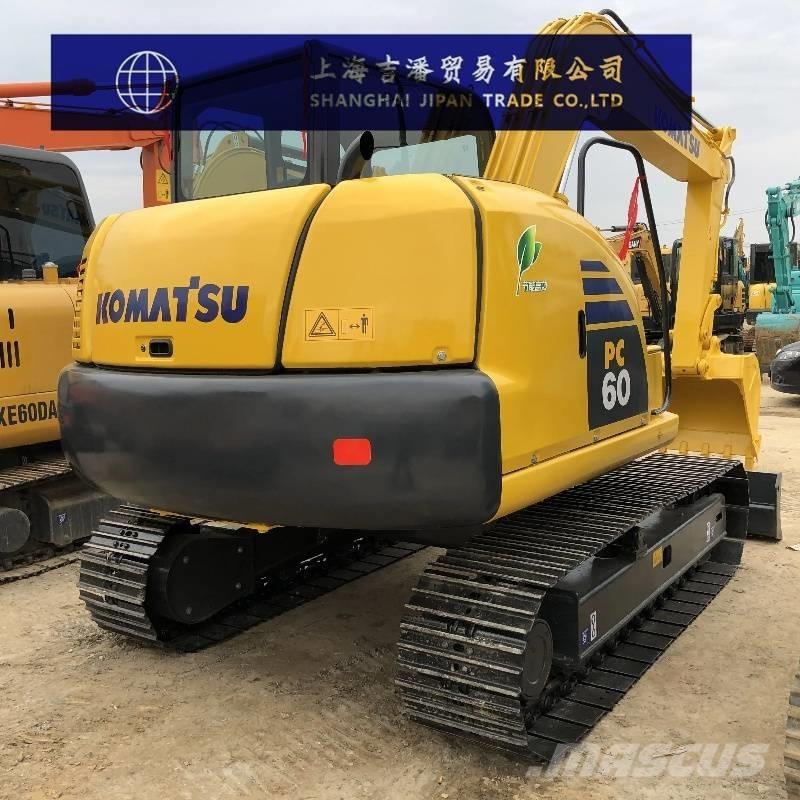

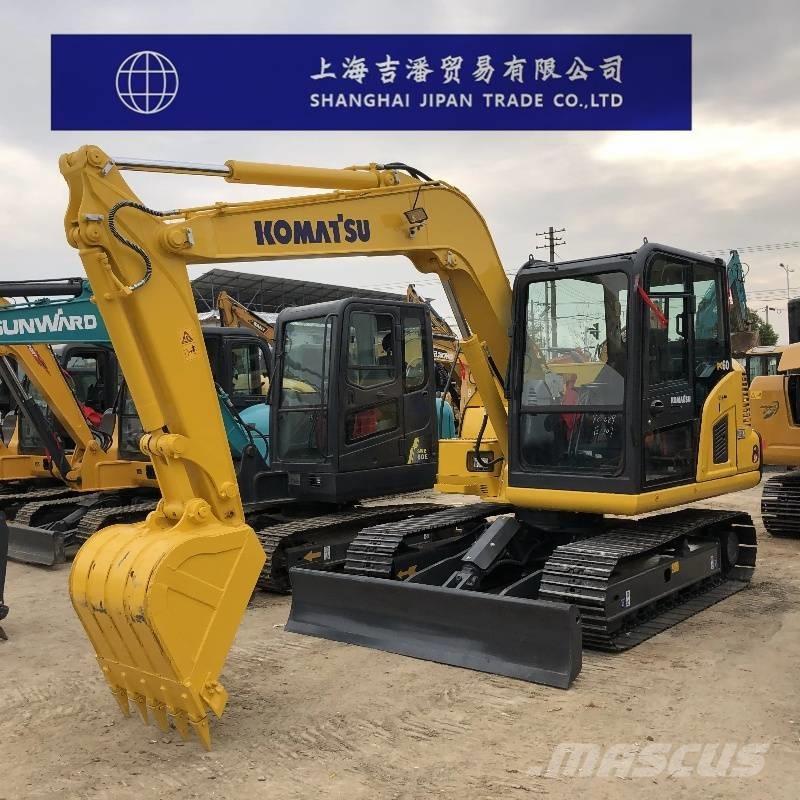

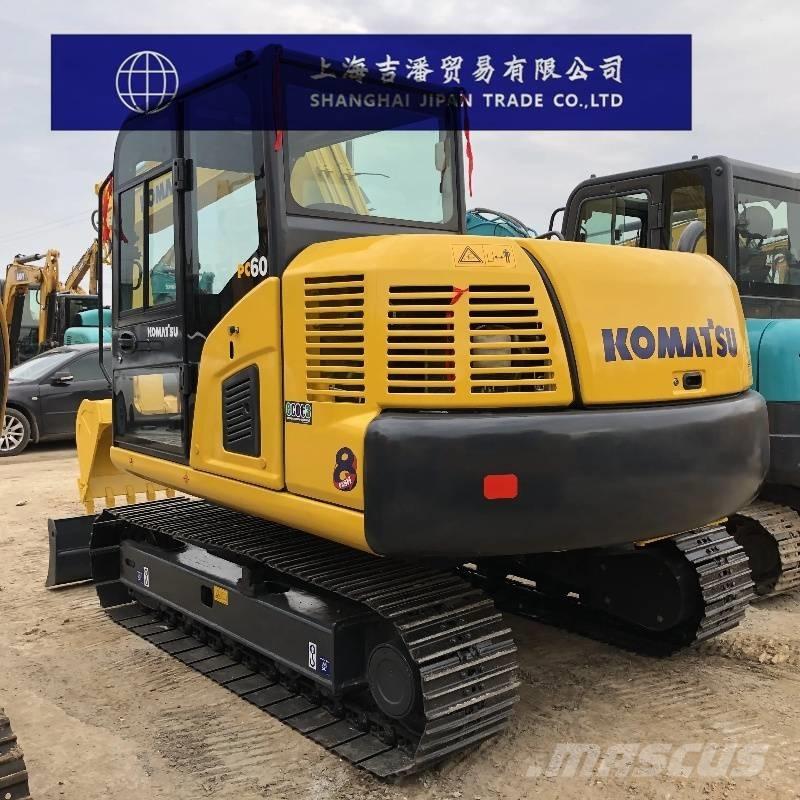

小松 PC 60-8

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Specifications Power Type: Conventional Power Manufacturer: Joint Venture/Imported Bucket Type: Backhoe Tonnage: 6 tons Operating Weight: 6180 kg Bucket Capacity: 0.25~0.37 m³ Performance Swing Speed: 10 rpm Travel Speed: 2.8-4.5 km/h Ground Pressure: 28.4 Kpa Bucket Digging Force: 54.8 kN Arm Digging Force: 39.8 kN Maximum Traction Force: 56.6 kN Power System Engine Model: Komatsu SAA4D95LE-5 Rated Power: 40.7 kW / 1950 rpm Displacement: 3.26 L Number of Cylinders: 4 Bore × Stroke: 95 mm × 115 mm Cooling System: Water-cooled Operation Type: Turbocharged Hydraulic System Main Pump Type: Variable Displacement Piston Pump Maximum Main Pump Flow: 172 l/min Pilot Circuit Pressure: 2.9 MPa Working Hydraulic Circuit Pressure: 24.5 MPa Travel Hydraulic Circuit Pressure: 24.5 MPa Swing Hydraulic Circuit Pressure: 21.1 MPa Boom Cylinder - Quantity × Bore × Stroke: 1 - 115 mm × 840 mm Arm Cylinder - Quantity × Bore × Stroke: 1 - 100 mm × 865 mm Bucket Cylinder - Quantity × Bore × Stroke: 1 - 90 mm × 710 mm Hydraulic Breaker Pipeline: Not Standard Equipped Fluid Capacities Fuel Tank: 130 L Hydraulic Oil Tank: 95 L Engine Oil Change Capacity: 12.5 L Coolant: 10 L Dimensions Overall Transport Length: 6035 mm Overall Transport Width: 2225 mm Overall Transport Height: 2620 mm Track Ground Contact Length: 2765 mm Track Total Length: 2765 mm Track Shoe Width: 450 mm Total Track Width: 2150 mm Track Gauge: 1700 mm Minimum Ground Clearance: 350 mm Counterweight Ground Clearance: 750 mm Minimum Swing Radius of Front Attachment: 1700 mm Rear Swing Radius: 1750 mm Number of Top Rollers (Per Side): 1 Number of Track Shoes (Per Side): 38 Number of Carrier Rollers (Per Side): 5 Working Range Maximum Digging Radius: 6190 mm Maximum Digging Radius at Ground Level: 6045 mm Maximum Digging Depth: 3900 mm Maximum Digging Height: 7030 mm Maximum Dumping Height: 4925 mm Maximum Vertical Digging Depth: 3350 mm
