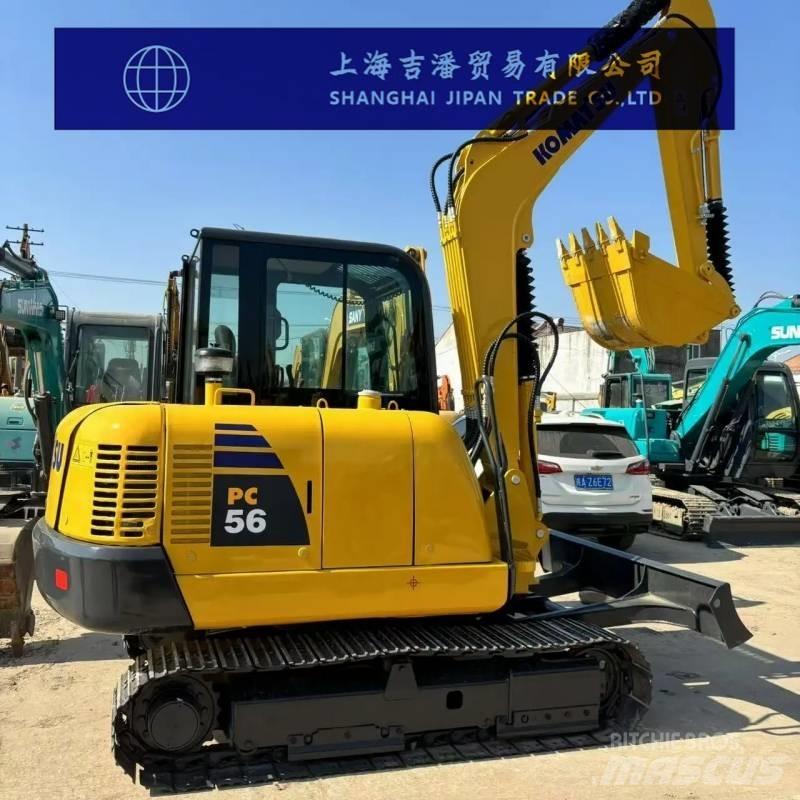

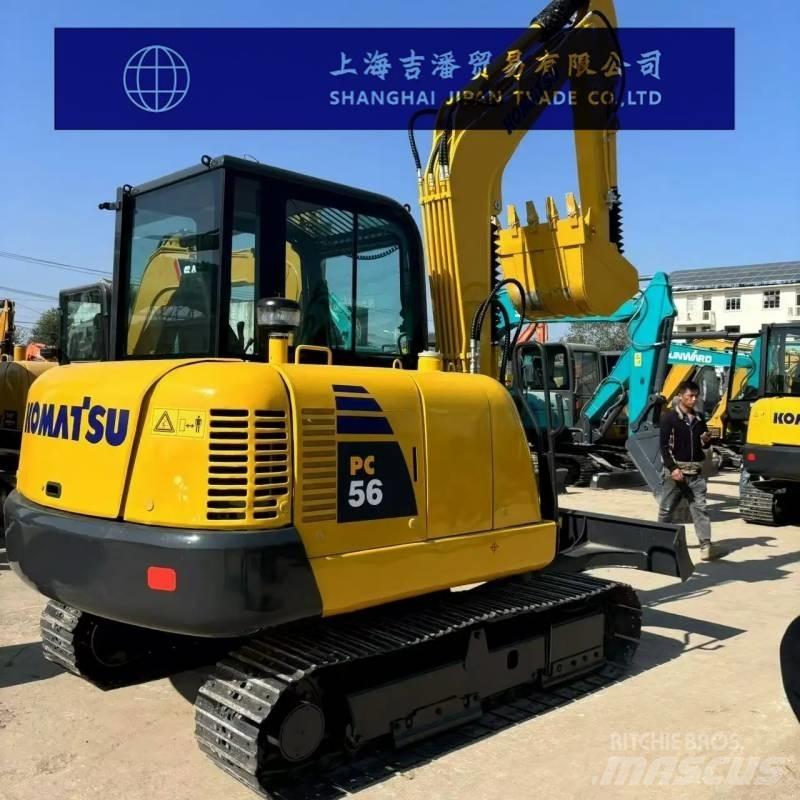

小松 PC 56

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Specification Power, traditional power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)5 The working weight of the entire machine (kg) is 5300 Bucket capacity (m³) : 0.055-0.22 Origin: Jining, Shandong Province Performance Rotational speed (rpm)9 Walking speed (km/h)2.6/4.1 Grounding specific pressure (Kpa) : 30.7 Power system Engine model: Komatsu S4D87E-1 Rated power (kw/rpm)34.5/2300 Displacement (L) : 2.434 The cooling method is water cooling Working form: 4-stroke, water-cooled in-line, direct injection engine, stroke :102.4mm, cylinder bore :87mm. Hydraulic system Rotary hydraulic motor type fixed plunger type ×1 The type of the walking hydraulic motor is variable piston type ×2 Working hydraulic oil circuit (Mpa)26.5 Walking hydraulic circuit (Mpa)26.5 Rotary hydraulic circuit (Mpa)19.6 Boom cylinder - Number × cylinder bore × stroke (mm)90×689.5×55 Bucket rod cylinder - Number × cylinder diameter × stroke (mm)85×709.5×55 Bucket cylinder - Number × cylinder diameter × Stroke (mm)75×580×50 Is the hydraulic crushing pipeline standard? No Oil capacity Fuel tank (L)120 Hydraulic oil tank (L)55 Engine oil change rate (L)9.7 Coolant (L)8 Main body size Total transportation length (mm) : 5935 Total transportation width (mm) : 1960 Total transportation height (mm) : 2550 The total height of the cab (mm) is 2550 Track grounding length (mm)1980 The total length of the track (mm) is 2500 Track plate width (mm)400 Total track width (mm) : 1960 Track gauge (mm) : 1560 Minimum ground clearance (mm)320 The rear end rotation radius (mm) is 1650 Scope of work Maximum excavation radius (mm) : 6130 The maximum excavation radius (mm) of the shutdown surface is 5980 Maximum excavation depth (mm) : 3810 Maximum excavation height (mm) : 5860 Maximum unloading height (mm) : 4130 Maximum vertical excavation depth (mm) : 3060 Bulldozer lift or push depth (mm)355
