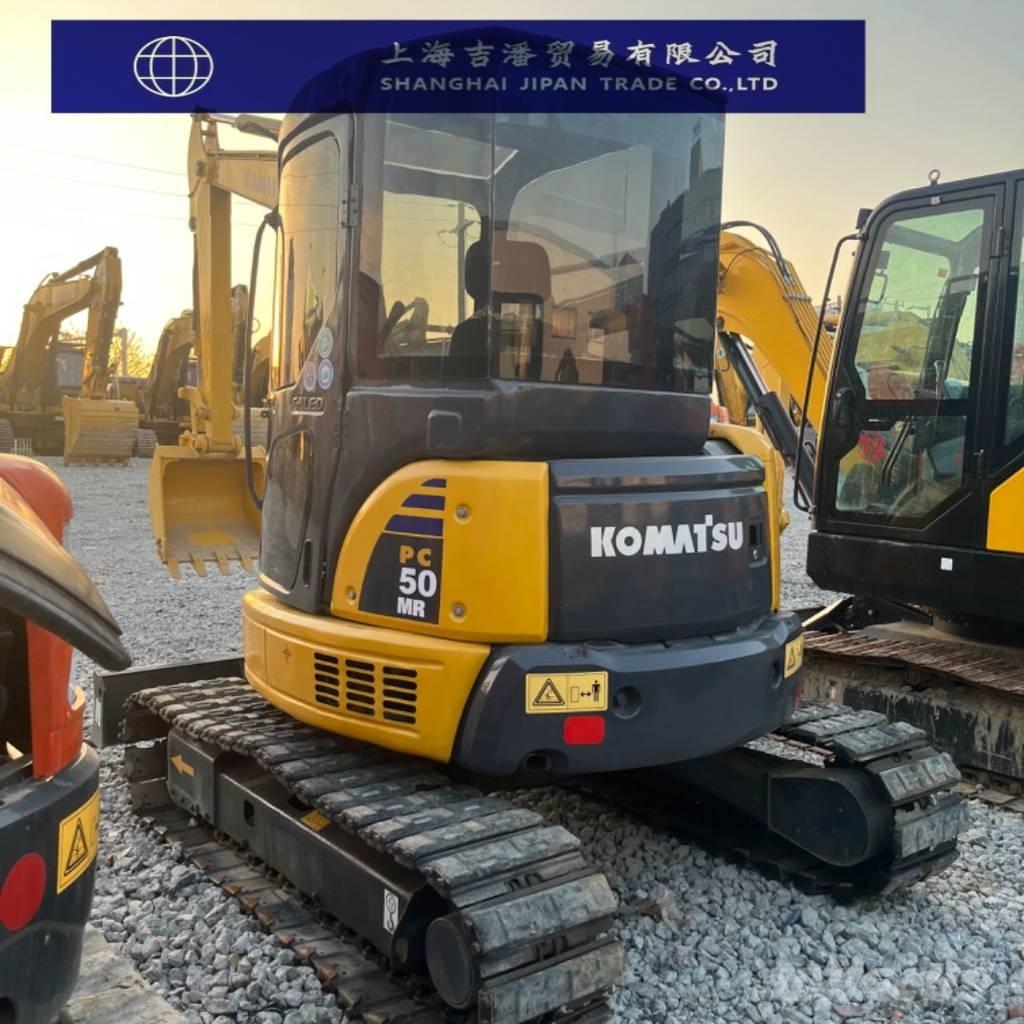

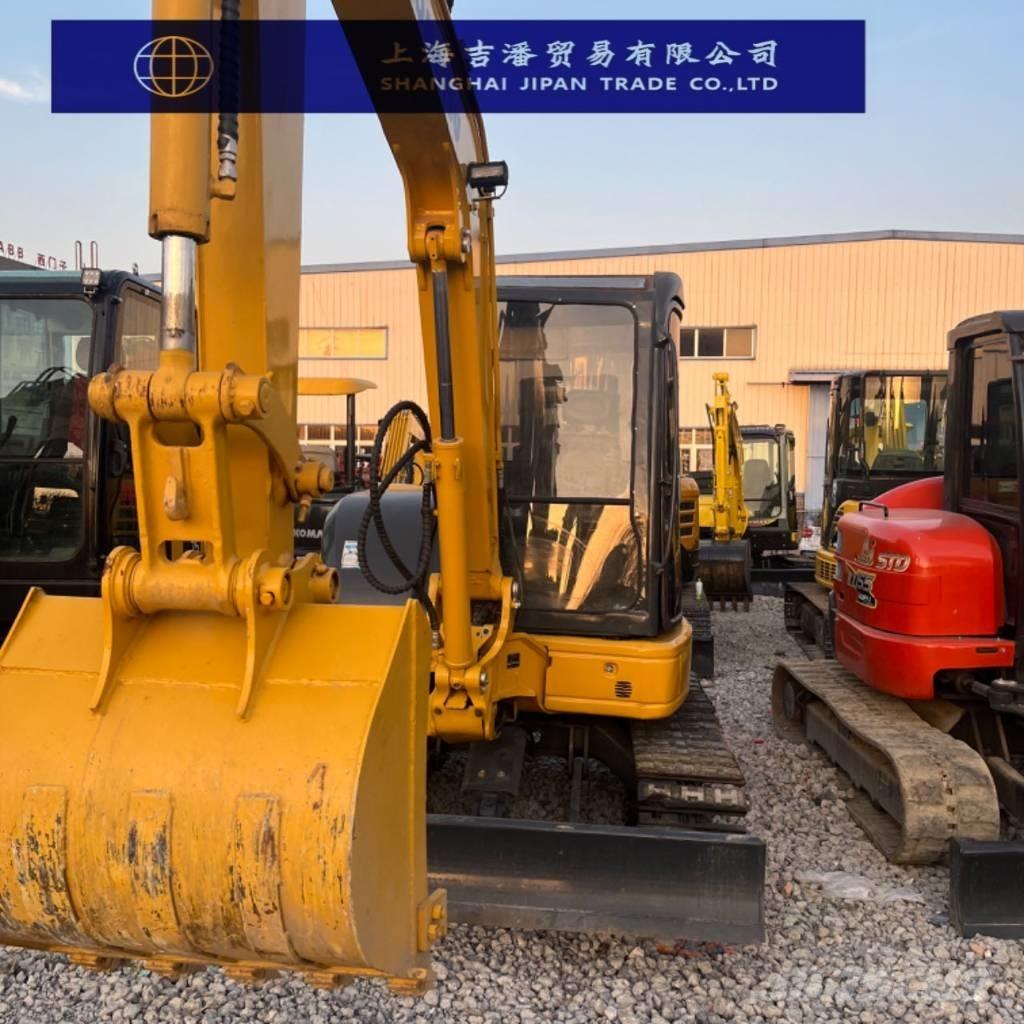

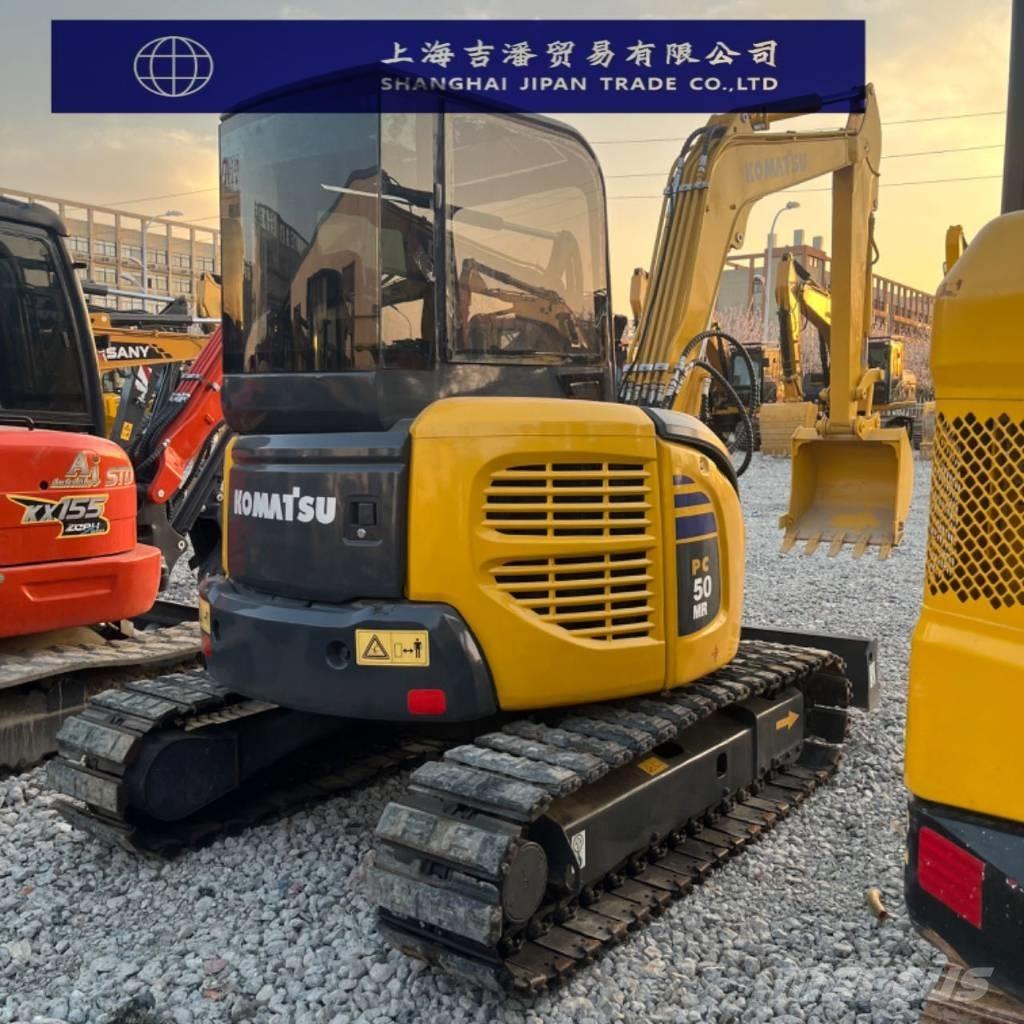

小松 PC 50 MR

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Parameters: Operating Weight: 5040kg Standard Bucket Capacity: 0.2m³ Rated Power: 29.4kW Performance Parameters: Travel Speed: 4.3/2.6km/h Maximum Traction Force: 4280Kgf Swing Speed: 9rpm Bucket Digging Force: 3980kg Arm Digging Force: 2440kg Ground Pressure: 0.32kg/cm² Engine Parameters: Model: 4D88E-5 Rated Speed: 2350rpm Engine Type: 4-stroke water-cooled direct injection Displacement: 2.189L Hydraulic System Parameters: System Type: Pressure-compensated CLSS system Main Pump Type: Variable displacement piston pump × 2 + Gear pump × 1 Maximum Flow Rate: 51×2 + 31L/min Working Device Hydraulic Circuit Pressure: 270Kmf/cm² Working Range Parameters: Maximum Digging Depth: 3800mm Maximum Dumping Height: 4160mm Maximum Digging Distance: 5850mm Maximum Digging Radius: 6220mm Tank Capacity Parameters: Fuel Tank Capacity: 65L Hydraulic Oil Tank Capacity: 55L Overall Dimension Parameters: Overall Length: 5590mm Overall Width: 1960mm Overall Height: 2660mm Minimum Ground Clearance: 320mm Tail Swing Radius: 1060mm
