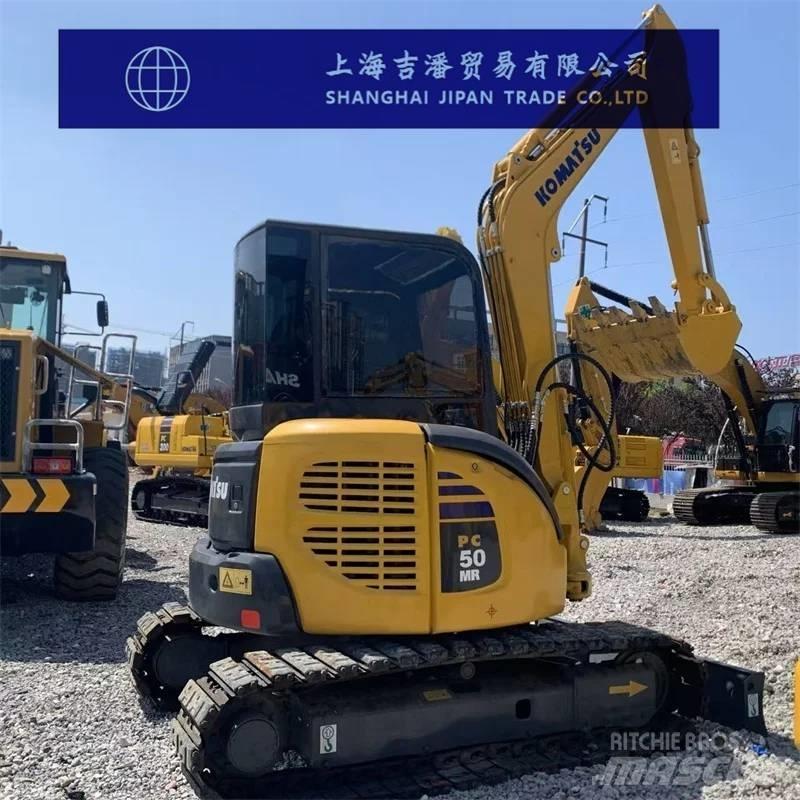

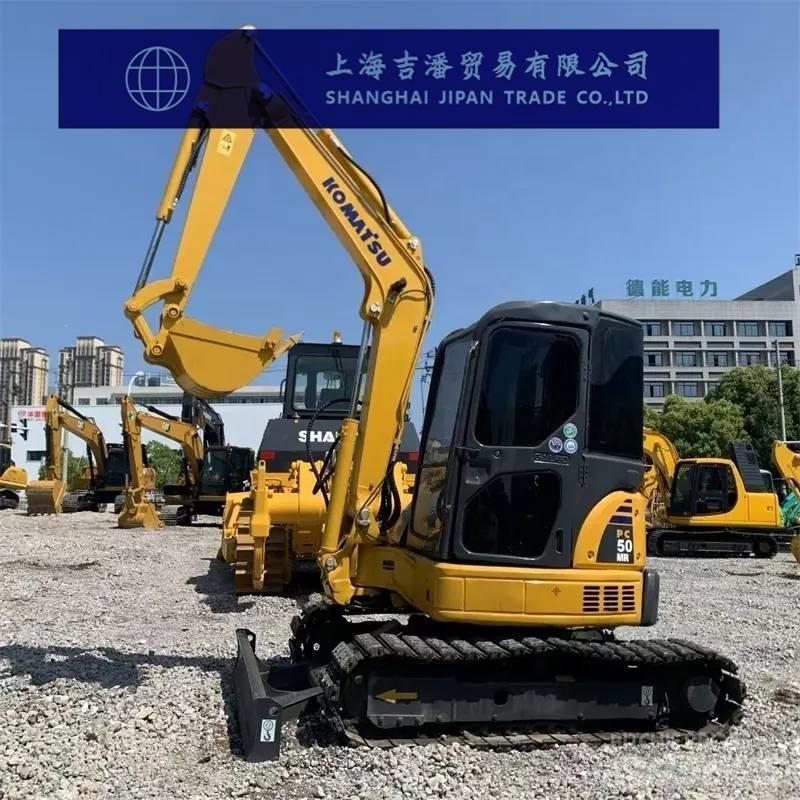

小松 PC 50 MR

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Basic parameters Overall machine weight: 5040kg Standard container capacity: 0.2m³ Rated power: 29.4HP/KW Main performance Walking speed: 4.3/2.6Km/h Maximum traction force: 4280Kgf Rotational speed: 9rpm Bucket digging force: 3980Kg Bucket shaft digging force: 2440Kg Ground pressure: 0.32kg/cm² (31.4kPa) Engine Model: 4D88E-5 Rated speed: 2350rpm Engine type: 4-stroke, water-cooled, direct injection Displacement: 2.189L Hydraulic system System type: Pressure-compensated CLSS system Main pump type: Variable plung pump ×2 + gear type ×1 Maximum flow rate: 51×2+31L/min Pressure of the hydraulic circuit of the working device: 270kgf/cm² Scope of work Maximum excavation depth: 3800mm Maximum unloading height: 4160mm Maximum excavation distance: 5850mm Maximum excavation radius: 6220mm Fuel tank capacity Fuel tank capacity: 65 liters The capacity of the hydraulic oil tank is 55L Excavator dimensions Total length: 5,590mm Full width: 1960mm Total height: 2660mm Minimum ground clearance: 320mm Tail rotation radius: 1060mm
