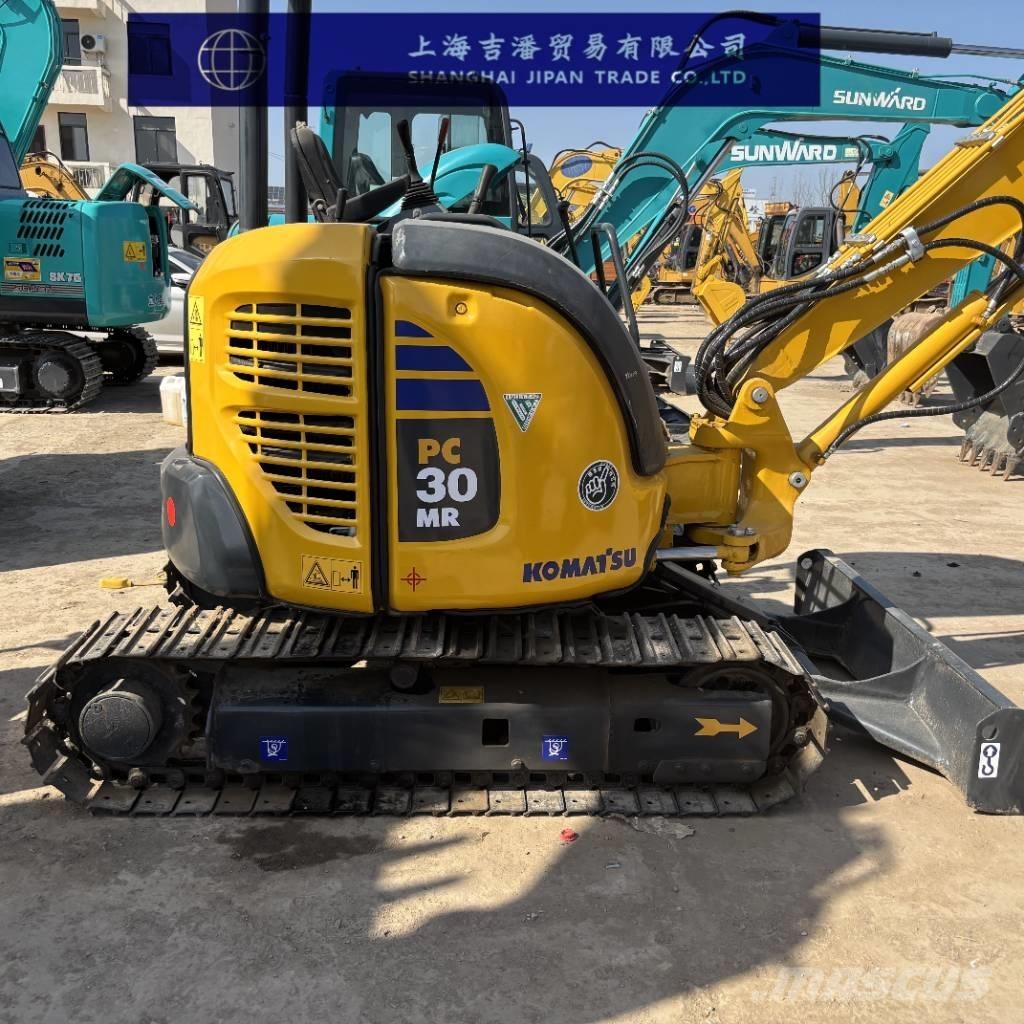

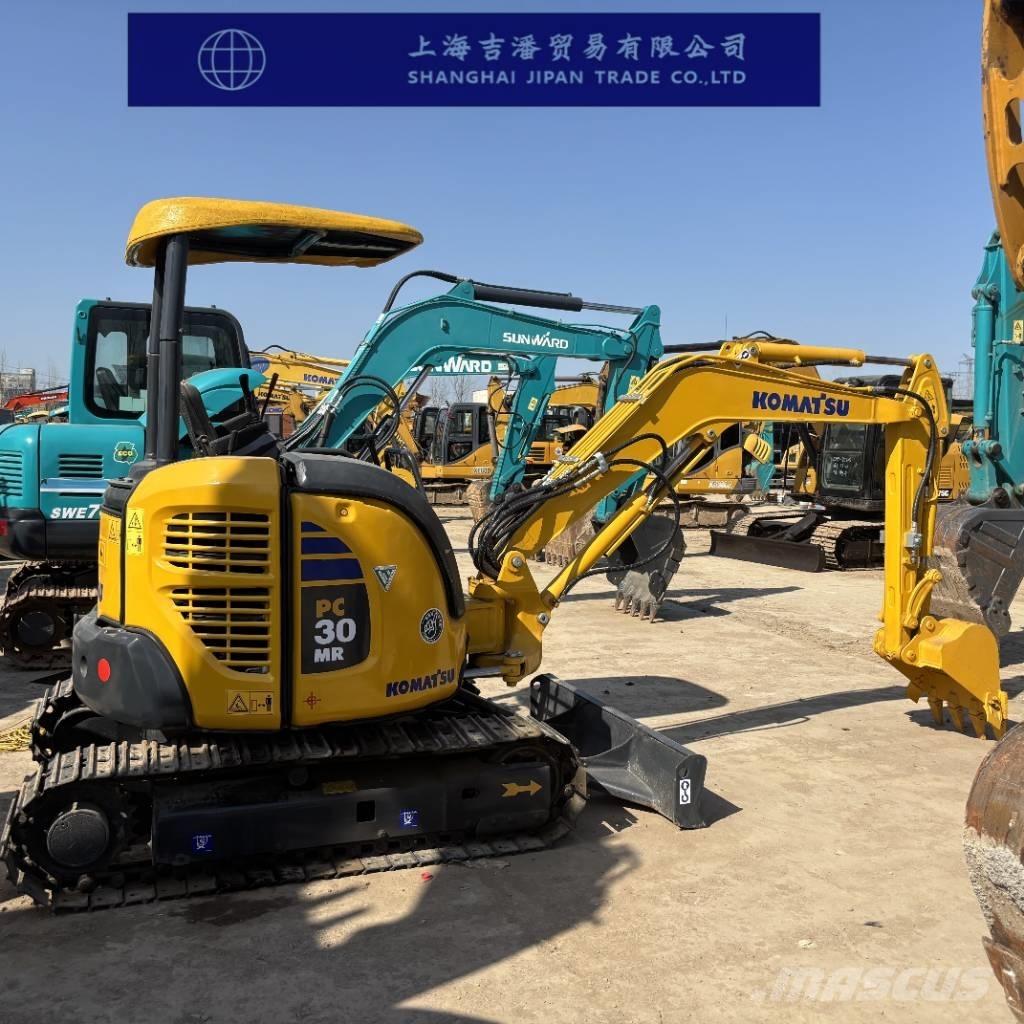

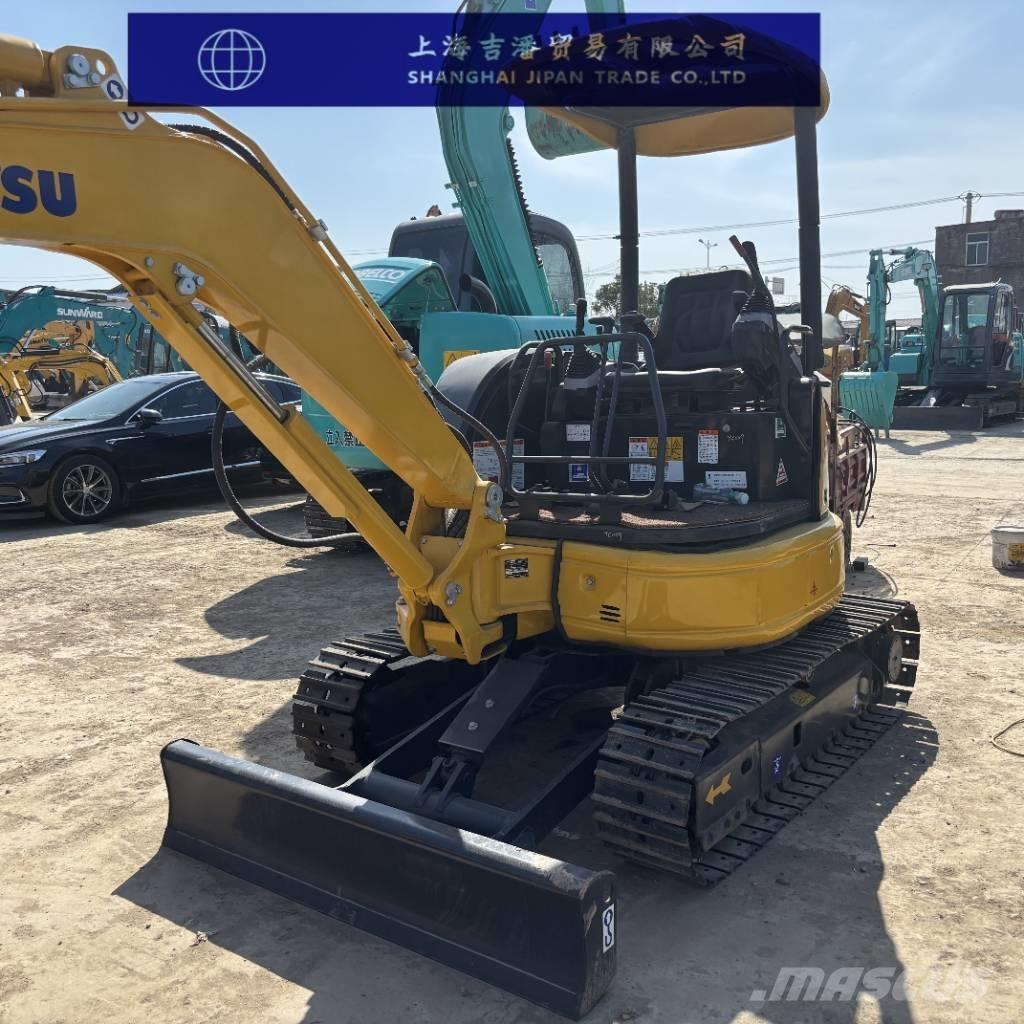

小松 PC 30 MR

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Engine: Model: Komatsu 3D88E-7 Type: Water-cooled, 4-stroke, direct injection Intake Method: Cooled EGR Number of Cylinders: 3 Bore × Stroke: 88mm × 90mm Piston Displacement: 1.642 L Gross Power (SAE J1995): 18.2 kW Net Power (ISO 9249/SAE J1349): 17.4 kW Rated Speed: 2200 rpm Fan Drive Method: Mechanical Emission Certification: EPA Tier 4 Final Hydraulic System: Type: Hydrau Mind system Number of Optional Working Modes: 2 Main Pump Type: Variable displacement axial piston pump, used for boom, arm, bucket, and travel circuits Maximum Flow Rate: 69.8 L/min Hydraulic Motors: 2 axial piston motors with parking brakes for travel; 1 axial piston motor with swing brake for slewing Relief Valve Settings: Working circuit 265 kgf/cm³, travel circuit 265 kgf/cm³, swing circuit 220 kgf/cm³, pilot circuit 32 kgf/cm³ Hydraulic Cylinder Bore × Stroke × Rod Diameter: Boom: 80mm × 550mm × 45mm; Arm: 75mm × 495mm × 45mm; Bucket: 65mm × 490mm × 40mm Drive and Braking: Steering Control: Dual joysticks with pedals Drive Method: Fully hydraulic Maximum Traction Force: 33.2 kN (3400 kgf) Gradeability: 30% Travel Speed: 2.6 / 4.6 km/h Service Brake: Hydraulic lock Parking Brake: Mechanical disc brake Slewing System: Drive Method: Hydraulic Slewing Reduction: Planetary gear Slewing Bearing Lubrication: Oil bath type Slewing Brake: Hydraulic lock Slewing Lock: Mechanical disc brake Slewing Speed: 9 rpm Undercarriage: Central Frame: X-type outrigger Track Frame: Box-section Track Type: Sealed track Track Tensioning Device: Hydraulic Number of Track Shoes (per side): 44 Number of Top Rollers (per side): 1 Number of Carrier Rollers (per side): 4 Capacities: Fuel Tank: 40.6 L Coolant: 3.3 L Engine Oil: 6.7 L Final Drive (per side): 0.6 L Hydraulic Oil Tank: 34 L Weight: Operating Weight: 3150–3300 kg Bucket Capacity: 0.09 m³
