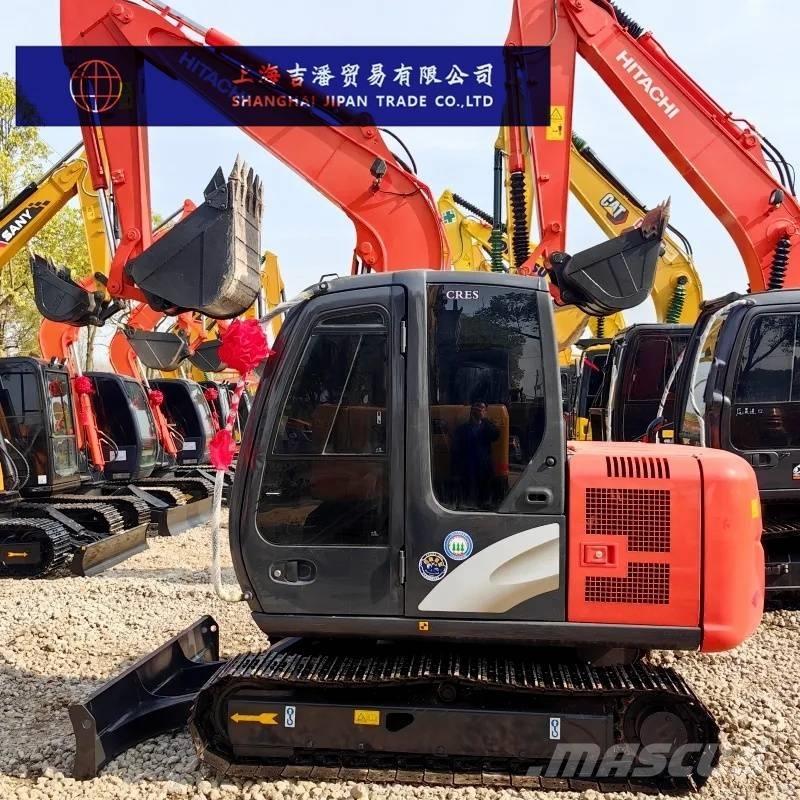

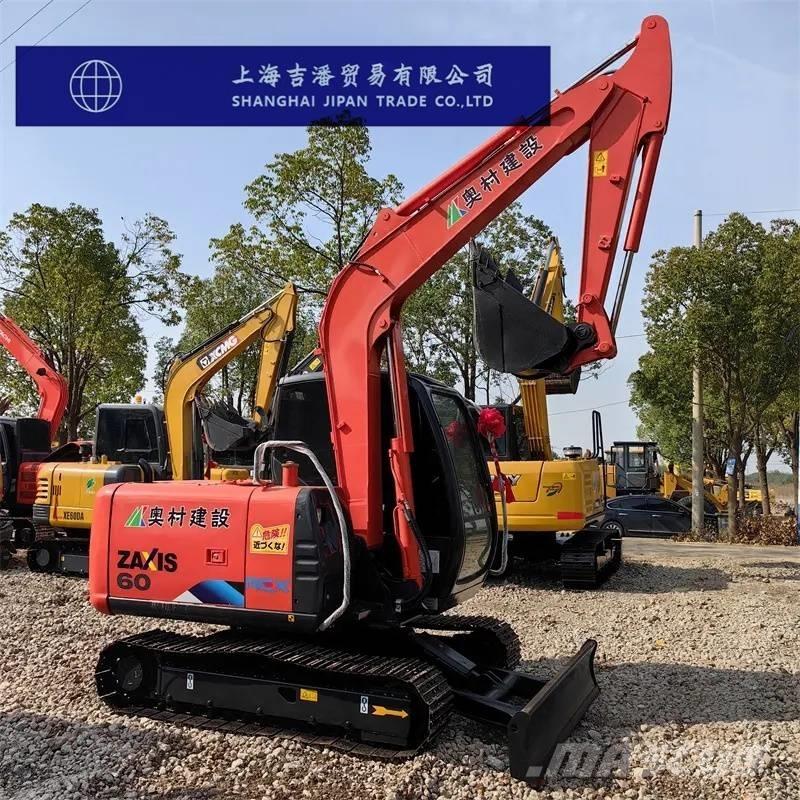

日立建机 ZX 60

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Information Operating Weight: 5960kg Bucket Capacity (ISO Heaped): 0.24m³ Engine Rated Power: 42.4kW (57.6PS) Power System Engine Model: Yanmar 4TNV98-AVHBW Rated Power: 42.4kW/2100rpm Cooling Method: Water-cooled Bore × Stroke: 98×110mm Maximum Torque: 236N.m Number of Cylinders: 4 Operation Type: Four-stroke, water-cooled, direct injection Performance Parameters Swing Speed: 9.1rpm Travel Speed: 0-4.5km/h (High speed) / 0-2.5km/h (Low speed) Gradeability: 70% (35°) Maximum Traction Force: 38.5kN Maximum Bucket Digging Force (ISO): 41.4kN Maximum Arm Digging Force: 28.4kN Hydraulic System Main Pump Type: 3 variable displacement axial piston pumps Travel Hydraulic Motor Type: 2 variable displacement axial piston motors Swing Hydraulic Motor Type: 1 axial piston motor Travel Hydraulic Circuit Pressure: 24.5MPa Swing Hydraulic Circuit Pressure: 17.6MPa Working Hydraulic Circuit Pressure: 24.5MPa Fluid Capacities Fuel Tank: 120L Hydraulic Oil Tank: 60L Coolant: 8L Hydraulic System Total: 93L Dimensions Overall Transport Length: 6060mm Overall Transport Width: 2060mm Overall Transport Height: 2085mm Overall Cab Height: 2475mm Counterweight Ground Clearance: 620mm Minimum Ground Clearance: 310mm Minimum Swing Radius of Front Attachment: 2510mm Rear Swing Radius: 1650mm Upper Structure Width: 2060mm Track Gauge: 1600mm Track Shoe Width: 400mm Working Range Maximum Digging Radius: 6250mm Maximum Digging Depth: 3850mm Maximum Digging Height: 4080mm Maximum Vertical Digging Depth: 3440mm Dozer Blade Width × Height: 200×400mm Maximum Digging Radius at Ground Level: 6130mm
