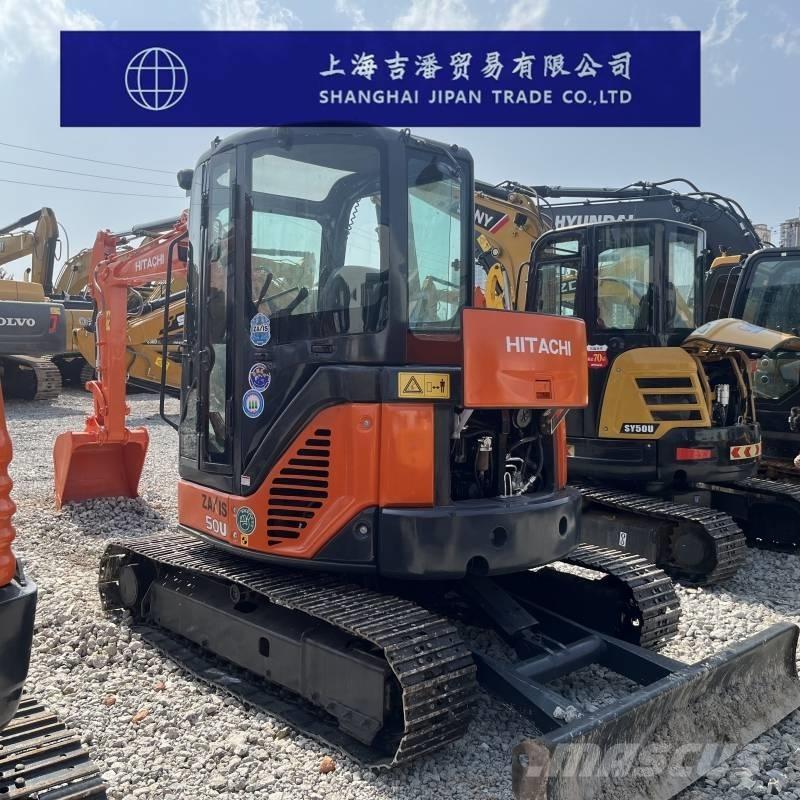

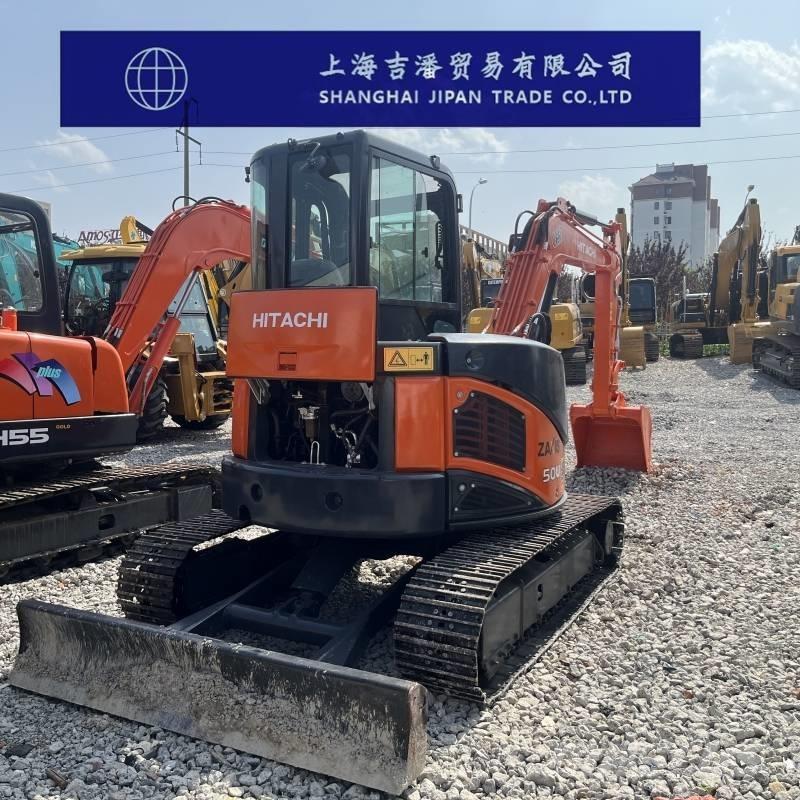

日立建机 ZX 50 U

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Hitachi ZX50U excavator Specification The working weight of the entire machine (kg) is 5170 Bucket capacity (m³)0.19 Boom length (mm) : 2850 The length of the boom (mm) is 1380/1690 Origin: Japan Tonnage (tons)5 Joint venture/import by manufacturers Power Traditional Power Bucket backhoe Joint venture/import by manufacturers Power Traditional Power Performance Rotational speed (rpm) : 9.3 Walking speed (km/h)2.6/4.2 Climbing ability (%)58% (30 degrees) Ground specific pressure (Kpa)32 Bucket digging force (kN)36.8 The digging force of the boom (kN) is 24/21 Power system Engine model: Yanmar 4TNV88 Rated power (kw/rpm)29.8/2500 Maximum torque (N.m)138/1500 Displacement (L)2.2 Number of cylinders (4) Cylinder diameter × stroke (mm)88×90 The cooling method is water cooling The working style is straightforward Hydraulic system Main pump type variables: Axial piston pump ×1+ gear pump ×1 The maximum flow rate of the main pump (l/min) is 125+12.5 Working hydraulic circuit (Mpa)24.5 Pilot oil circuit (MPa)4.1 The pilot pump flow rate (L/min) is 12.5 Boom cylinders - number × cylinder diameter × stroke (mm)1-95×691 Bucket rod cylinder - number × cylinder diameter × stroke (mm)1-80×731 Bucket cylinder - number × cylinder diameter × stroke (mm)1-75×551 Oil capacity Fuel tank (L)70 Hydraulic oil tank (L)59 Hydraulic system (L)90 Engine oil change volume (L)8.6 Coolant (L)6.6 Main body size The total length of transportation (mm) is 5460 The total transportation width (mm) is 2000 The total transportation height (mm) is 2600 The total height of the cab (mm) is 2600 The width of the vehicle (mm) is 2000 The ground clearance of the counterweight (mm) is 605 Track grounding length (mm) : 2000 The total length of the track (mm) is 2540 Track plate width (mm) : 400 Total width of the tracks (mm) : 2000 Track gauge (mm)1600 Minimum ground clearance (mm)335 The minimum turning radius (mm) of the front working device is 1790 The rear end turning radius (mm) is 1080 Scope of work Maximum excavation radius (mm) : 6000 Maximum excavation depth (mm) : 3600 Maximum excavation height (mm) : 5640 Maximum unloading height (mm) : 4000 Maximum vertical excavation depth (mm) : 2820 Boom rotation Angle (left/right °)80/60 The bulldozer shovel lifts or deepens (mm)425/335
