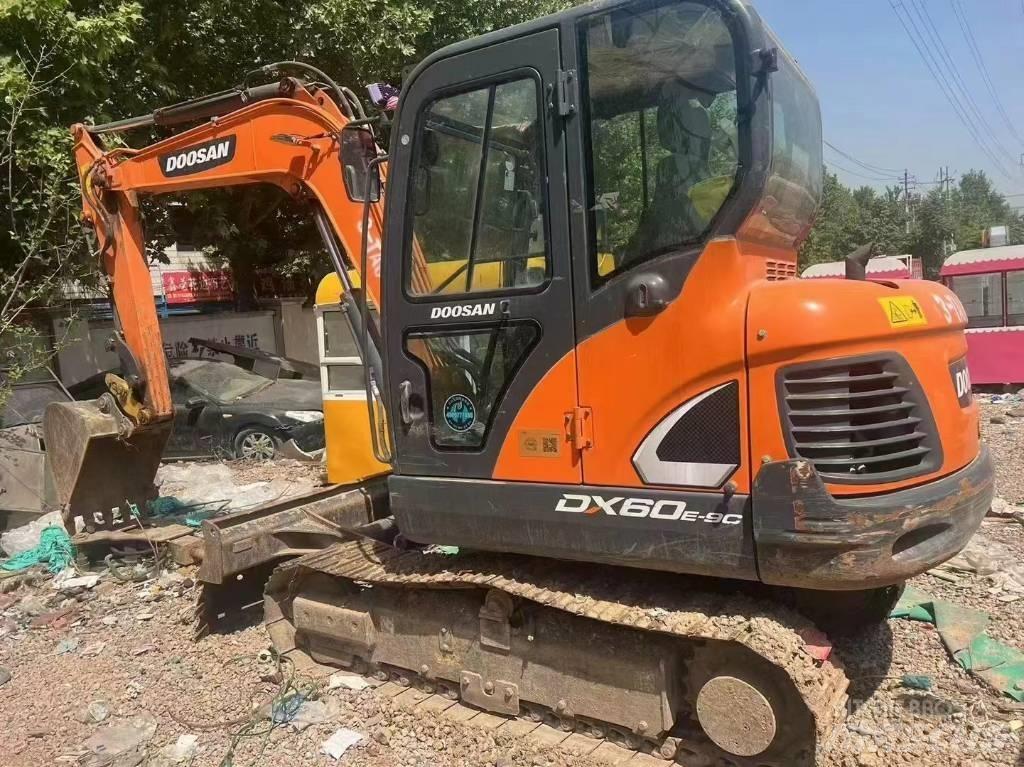

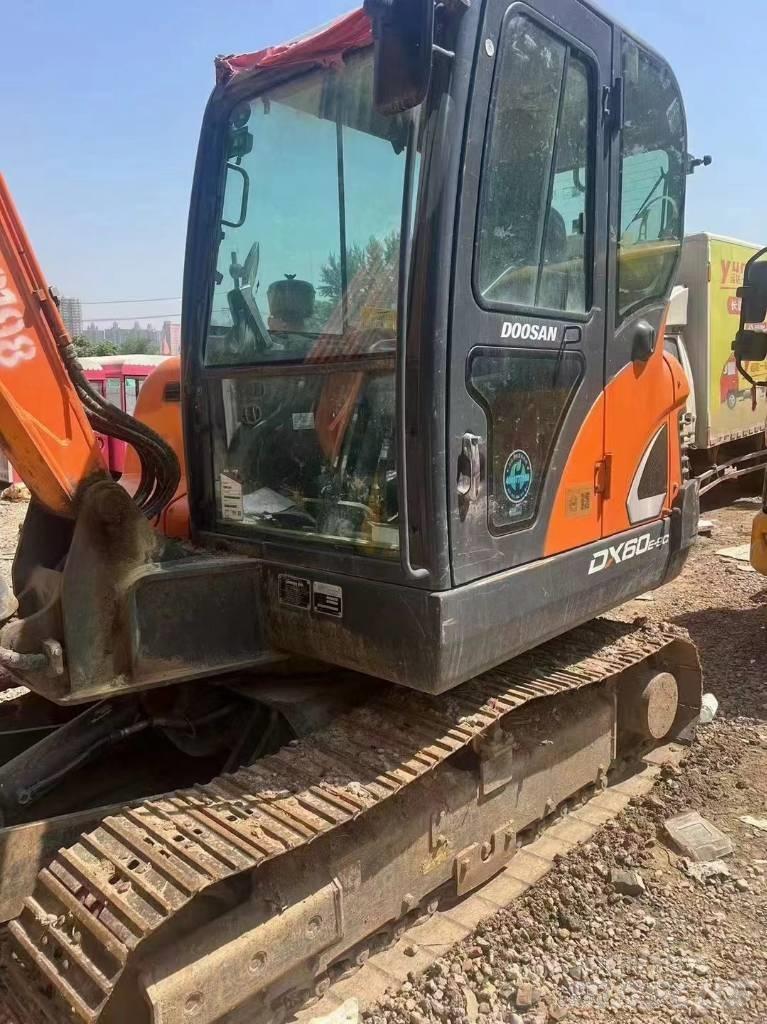

斗山 DX 60

Main Performances: ·Travelling speed(km/h):2.4/4.3 ·Swing speed(r/min):9.2 ·Digging force of bucket(kN):40.2 ·Digging force of arm(kN):24.5 Working Range: ·The maximum excavating height(mm):5795 ·The maximum unloading height(mm):4110 ·The maximum excavating depth(mm):3800 ·The maximum excavating radius(mm):6135 ·The maximum vertical excavating depth(mm):3125 Boundary Dimension: ·Boom length(mm):3000 ·Arm length(mm):1600 ·Track length(mm):2540 ·The minimum rotation radius of the rear end(mm):1650 ·The minimum ground clearance(mm):360 Oil Capacity: ·Fuel tank volume(L):115 ·Hydraulic oil tank volume(L):62 ·Engine oil capacity(L):10.5
