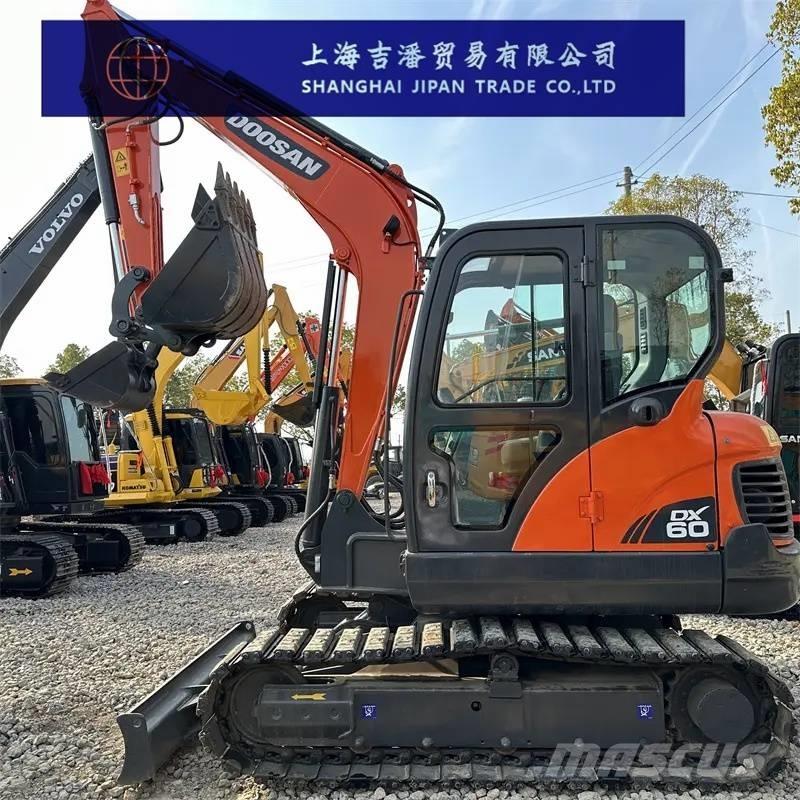

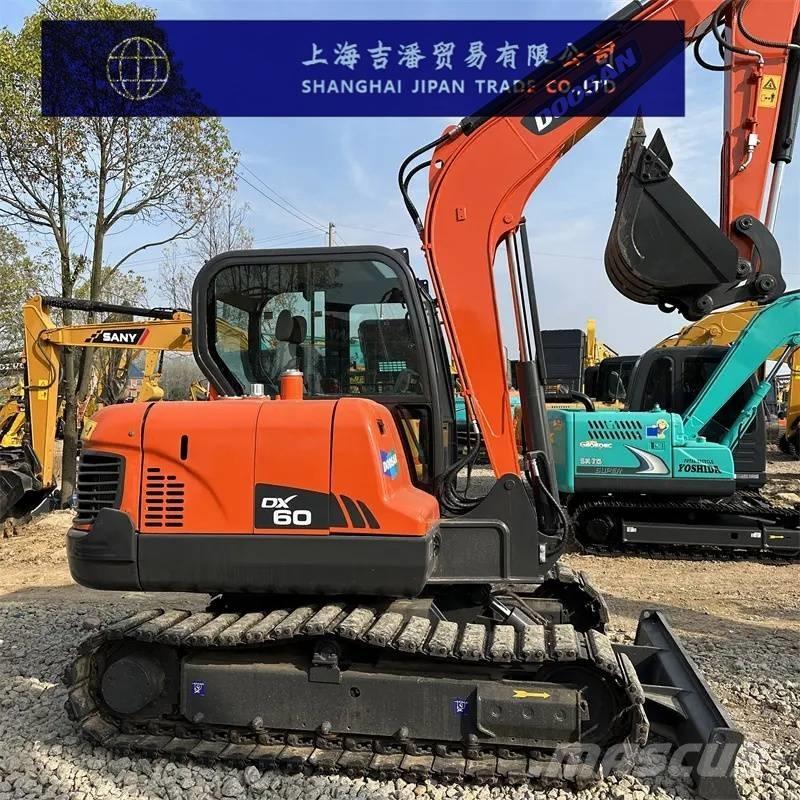

斗山 DX 60

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Information: The operating weight of the whole machine is 5700kg, the bucket capacity is 0.21m³, the fuel tank capacity is 115L, the boom length is 3000mm, and the arm length is 1600mm. Engine Parameters: The common model is YANMAR 4TNV94L, with a rated power of 39.7kW/2200rpm, a maximum torque of 20-22N·m/1100rpm, and the cooling method is water-cooled. Performance Parameters: The swing speed is 9.5rpm, the travel speed is 4.1/2.5km/h, the climbing ability is 78% (30 degrees), the bucket digging force is 44kN, the arm digging force is 28kN, and the maximum traction force is 58kN. Working Range Parameters: The maximum digging radius is 6150mm, the maximum digging depth is 3820mm, the maximum digging height is 5780mm, and the maximum dumping height is 4060mm. Overall Dimensions: The overall dimensions (length × width × height) of the machine are 5.85×2×2.58m, and the minimum ground clearance is 400mm.
