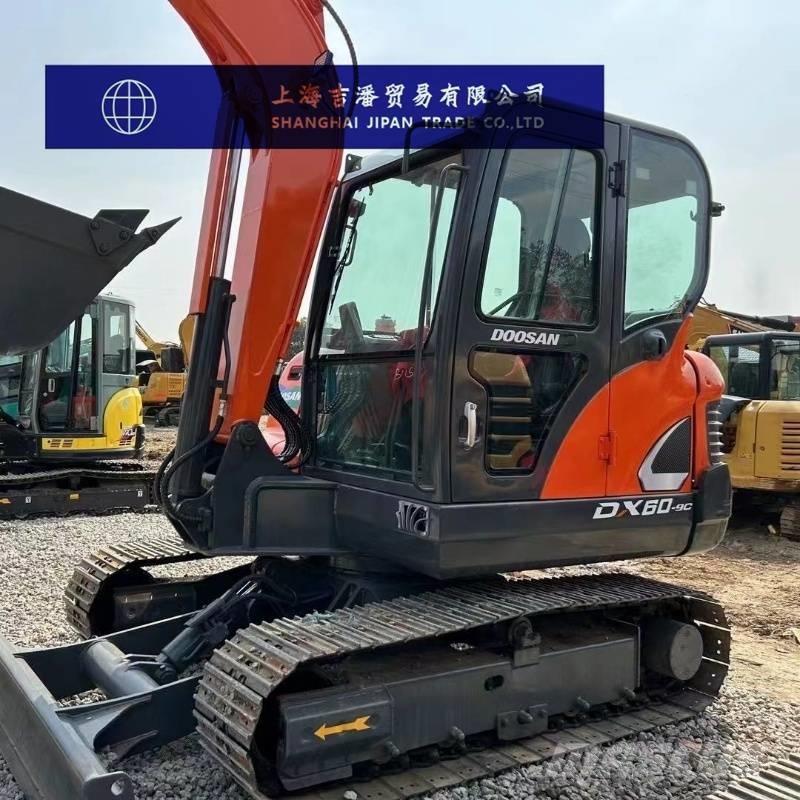

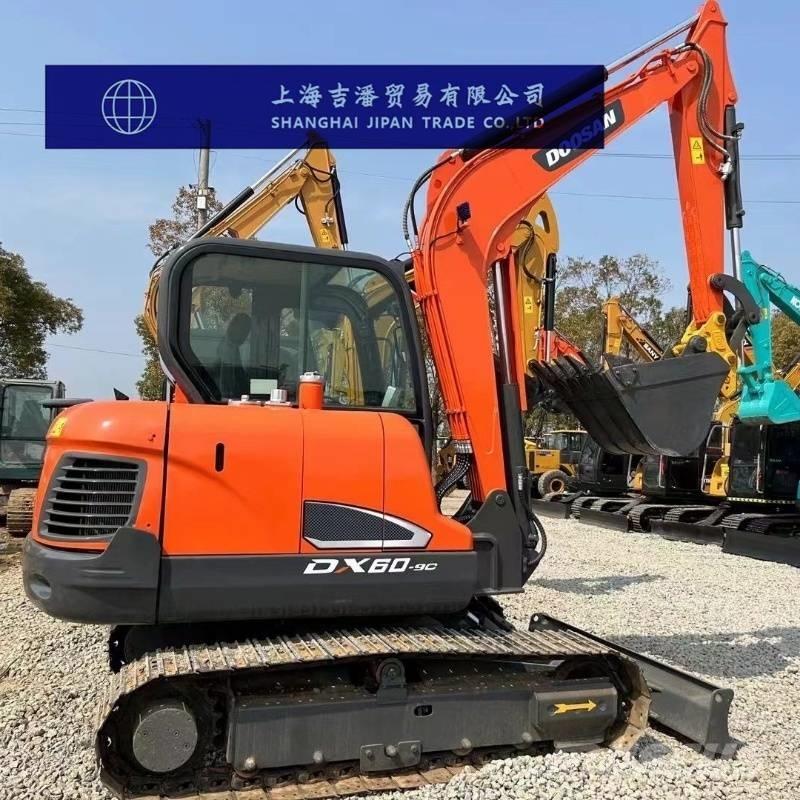

斗山 DX 60-9C

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Information: Model: DX60E-9C Structure Type: Special-purpose power excavator Operating Weight: 5500kg Bucket Capacity: 0.21m³ Overall Dimensions: Transport Dimensions (Length × Width × Height): 5865×1860×2580mm Track Gauge: 1480mm Track Ground Contact Length: 1990mm Track Shoe Width: 380mm Rear Swing Radius: 1650mm Ground Clearance: 260mm Travel Parameters: Number of Gears (Forward/Reverse): 2/2 Forward Speed: 2.4/4.3km/h Reverse Speed: 2.4/4.3km/h Gradeability: 70% Engine Parameters: Model: 4TNV94L Type: Four-cylinder, four-stroke, water-cooled diesel engine Rated Power: 36.2kW Rated Net Power: 34.9kW Rated Speed: 2100r/min Hydraulic System Parameters: Main Hydraulic Pump Model: D5VP2D27-G6P4-2S2T Main Hydraulic Pump Flow: 57.8×2L/min Set Working Pressure: 20.6MPa Operating Parameters: Maximum Digging Force - Bucket: 41.04kN Maximum Digging Force - Arm: 24.12kN Maximum Digging Radius: 6135mm Maximum Digging Depth: 3645mm Maximum Vertical Digging Depth: 3139mm Maximum Digging Height: 5781mm Maximum Dumping Height: 4110mm Boom Length: 3000mm Arm Length: 1600mm
