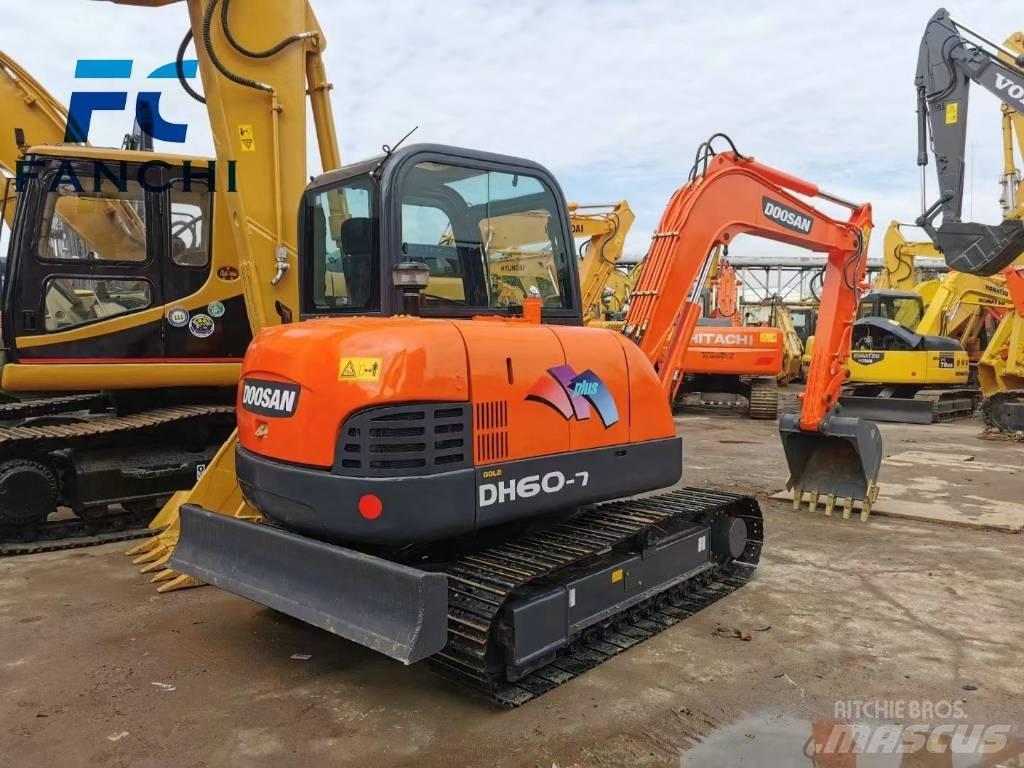

斗山 DH 60

All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.

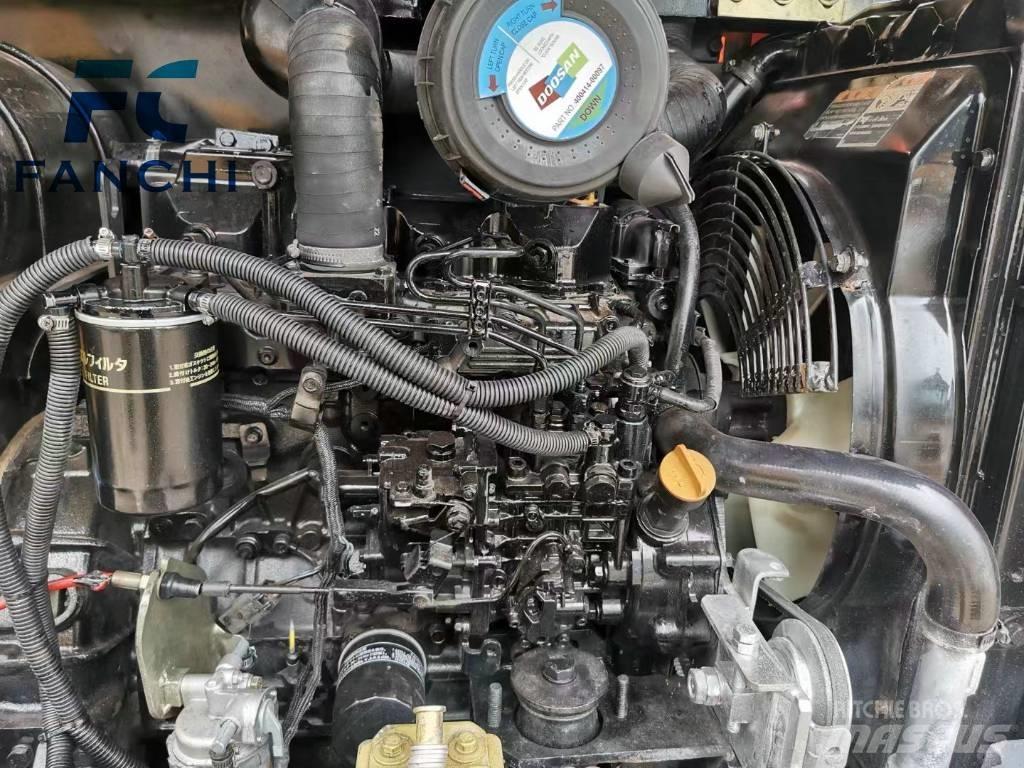

Overall Machine Parameters: - Total operating weight of the whole machine: 5550 kg - Bucket capacity: 0.09 - 0.2 m³ - Boom length: 3000 mm - Arm length: 1600 mm - Total transport length: 5850 mm - Total transport width: 1880 mm - Total transport height: 2575 mm - Total height of the cab: 2575 mm - Width of the upper carriage: 1885 mm - Track ground contact length: 1990 mm - Total track length: 2540 mm - Track shoe width: 400 mm - Total track width: 1880 mm - Track gauge: 1480 mm - Minimum ground clearance: 350 mm - Rear swing radius: 1650 mm Performance Parameters: - Bucket digging force: 37.7 kN - Arm digging force: 28.4 kN - Maximum digging radius: 6150 mm - Maximum digging depth: 3820 mm - Maximum digging height: 5760 mm - Maximum unloading height: 4030 mm Engine Parameters: - Engine model: Yanmar 4TNV94L - Rated power: 38.1 kW/2200 rpm - Number of cylinders: 4 - Cooling method: Water cooling - Working mode: Air-to-air intercooling Hydraulic System Parameters: - Main pump type: Variable axial piston pump × 2 - Maximum flow rate of the main pump: 55×2 L/min - Working hydraulic circuit pressure: 20.6 MPa - Travel hydraulic circuit pressure: 20.6 MPa - Swing hydraulic circuit pressure: 21.6 MPa - Flow rate of the pilot pump: 9.9 L/min
