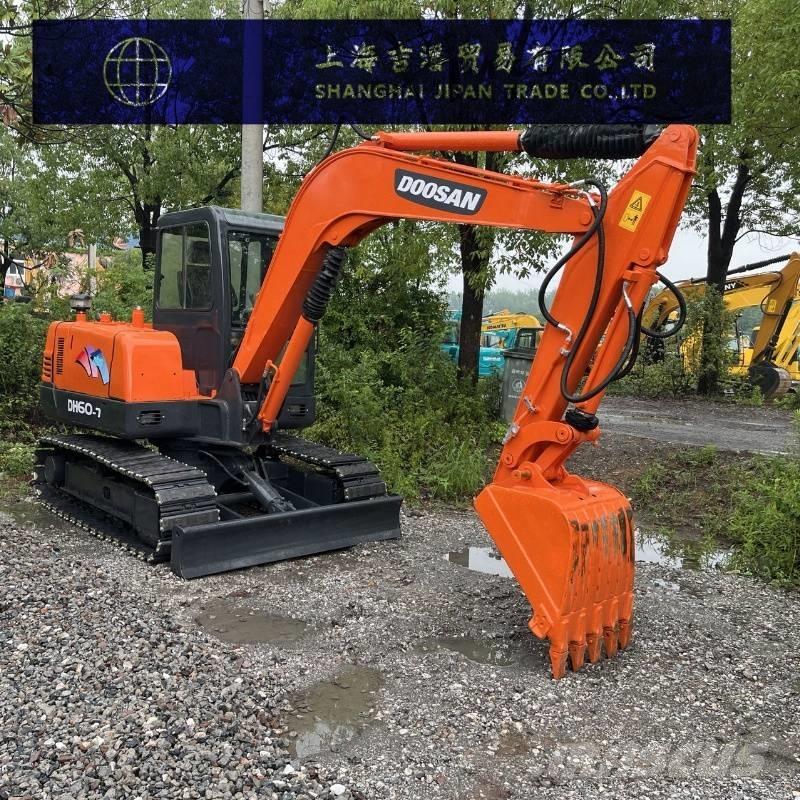

斗山 DH 60-7

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Parameter Item Specific Value Operating Weight 5550kg Bucket Capacity 0.09 - 0.2m³ Boom Length 3000mm Arm Length 1600mm Overall Transport Dimensions (L×W×H) 5850×1880×2575mm Upper Structure Width 1885mm Cab Width 1030mm Tail Swing Radius 1650mm Minimum Ground Clearance 350mm Track Contact Length 1990mm Total Track Length 2540mm Track Shoe Width 400mm Track Gauge 1480mm 2. Engine Parameters This model is equipped with a Yanmar 4TNV94L water-cooled 4-cylinder engine, with a rated output power of 38.1kW at 2200rpm. The water-cooled cooling system ensures stable temperature control during engine operation, suitable for long-hour small-scale operation requirements. 3. Hydraulic System Parameters Parameter Item Specific Value Main Pump Type Variable Displacement Axial Piston Pump × 2 Maximum Main Pump Flow 55×2L/min Pilot Pump Type Gear Pump Maximum Pilot Pump Flow 9.9L/min Main Relief Valve Pressure (Boom/Arm/Bucket) 210kgf/cm² Travel Hydraulic Circuit Pressure 210kgf/cm² Swing Hydraulic Circuit Pressure 21600kPa 4. Performance Parameters Parameter Item Specific Value Bucket Digging Force (ISO) 37.7kN Arm Digging Force (ISO) 28.4kN Maximum Digging Radius 6150mm Maximum Digging Depth 3820mm Maximum Digging Height 5760mm Maximum Dumping Height 4030mm
