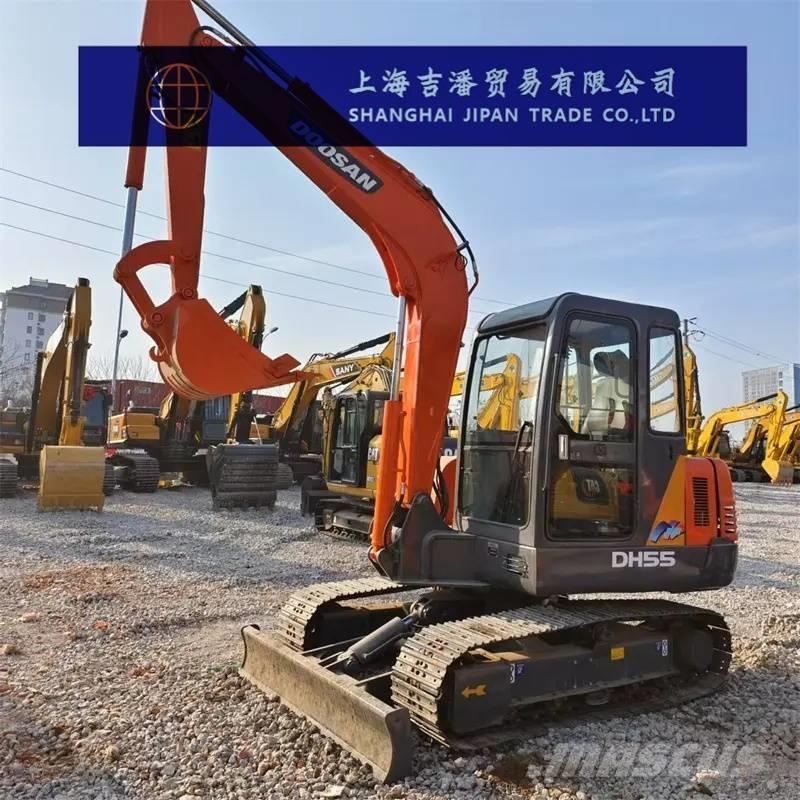

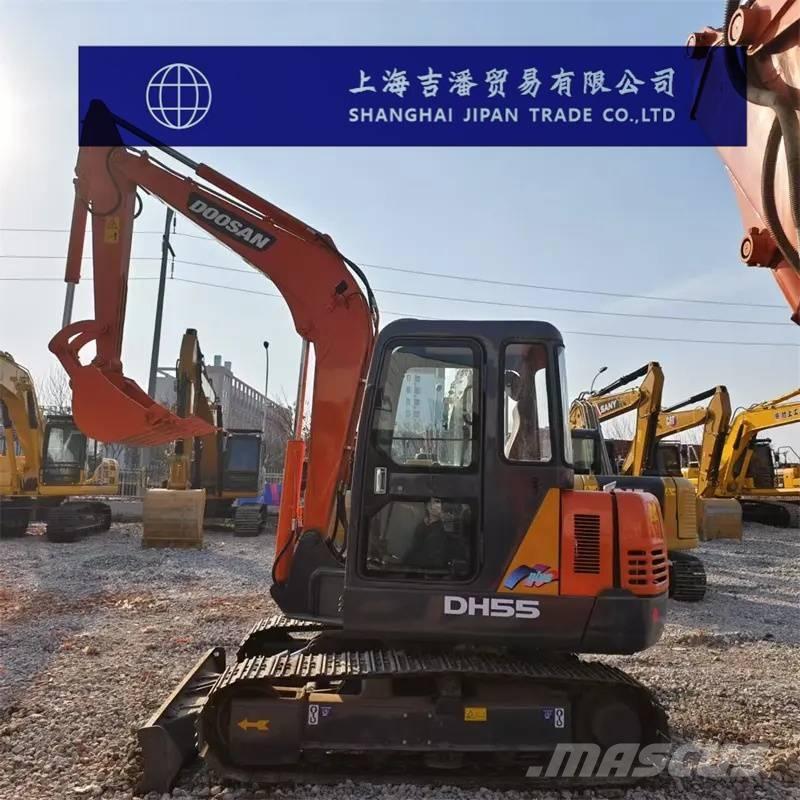

斗山 DH 55

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Specifications Operating Weight: 5250kg Bucket Capacity: 0.067-0.17m³ Engine Model: ISUZU CC-4JG1 Rated Power: 40.5kW/2100rpm Number of Cylinders: 4 Performance Specifications Travel Speed: 3.76km47h (High Speed) 47 2.21km 47h (Low Speed) Swing Speed: 9.9rpm Bucket Digging Force: 31.4kN Arm Digging Force: 24.5kN Maximum Digging Radius: 6106mm Maximum Digging Depth: 3890mm Maximum Digging Height: 5330mm Maximum Dumping Height: 3630mm Hydraulic System Specifications Main Pump Type: Variable Displacement Axial Piston Pump Maximum Flow of Main Pump: 2×55L 47;min Working Hydraulic Circuit Pressure: 20.6MPa Travel Hydraulic Circuit Pressure: 17.65MPa Swing Hydraulic Circuit Pressure: 17.65MPa Pilot Pump Flow: 14.3L 47;min Dimension Specifications Overall Transport Length: 5940mm Overall Transport Width: 1880mm Overall Transport Height: 2565mm Overall Cab Height: 2565mm Counterweight Ground Clearance: 700mm Minimum Ground Clearance: 350mm Rear Swing Radius: 1550mm Total Track Length: 2542mm Track Gauge: 1480mm Track Shoe Width: 400mm
