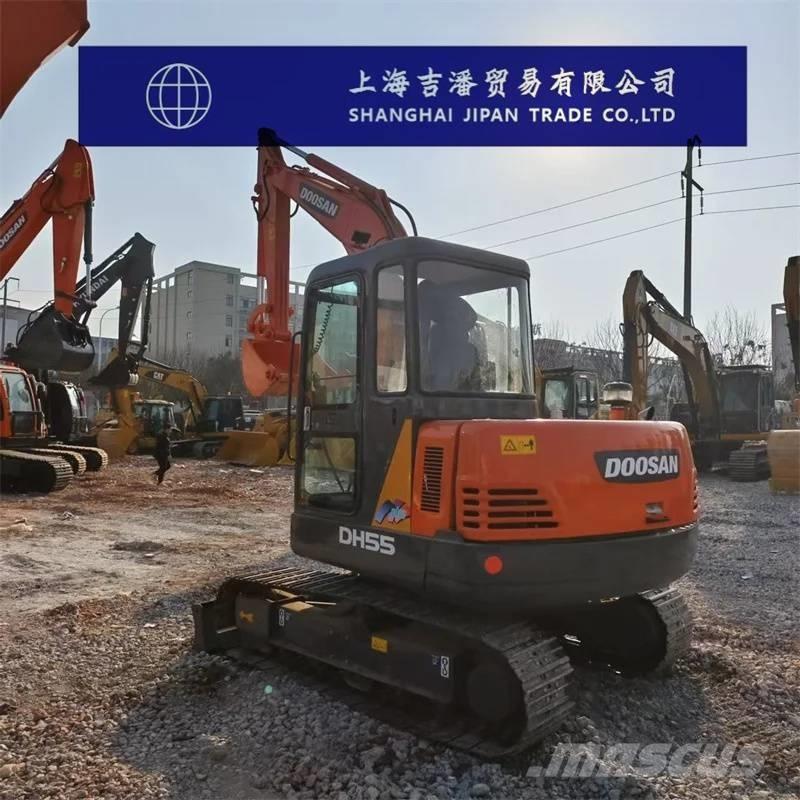

斗山 DH 55

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Parameters Operating Weight: 5.25-5.5 tons. Country of Origin: South Korea. Power Type: Traditional power, diesel engine. Bucket Type: Backhoe. Dimension Parameters Overall Transport Length: 5940mm. Overall Transport Width: 1880mm. Overall Transport Height: 2565mm. Track Shoe Width: 400mm. Track Gauge: 1480mm. Minimum Ground Clearance: 350mm. Counterweight Ground Clearance: 700mm. Rear Swing Radius: 1550mm. Engine Parameters Engine Model: Commonly Isuzu 4JB1 or ISUZU CC-4JG1. Rated Power: 40.5kW, corresponding speed is generally 2100-2200rpm. Number of Cylinders: 4. Hydraulic System Parameters Main Pump Type: Variable displacement axial piston pump. Maximum Flow of Main Pump: 2×55L/min. Working Hydraulic Circuit Pressure: 20.6MPa. Travel Hydraulic Circuit Pressure: 17.65MPa. Swing Hydraulic Circuit Pressure: 17.65MPa. Pilot Pump Flow: 14.3L/min. Performance Parameters Travel Speed: 2.4-3.8km/h. Swing Speed: 9.9rpm. Bucket Digging Force: 31.4kN. Arm Digging Force: 24.5kN. Maximum Digging Radius: 6100-6106mm. Maximum Digging Depth: 3890mm. Maximum Digging Height: 5330mm. Maximum Dumping Height: 3630-3645mm. Maximum Vertical Digging Depth: 3025-3110mm. Bucket Parameters Standard Bucket Capacity: 0.175 cubic meters; the bucket capacity range is generally 0.067-0.17 cubic meters.
