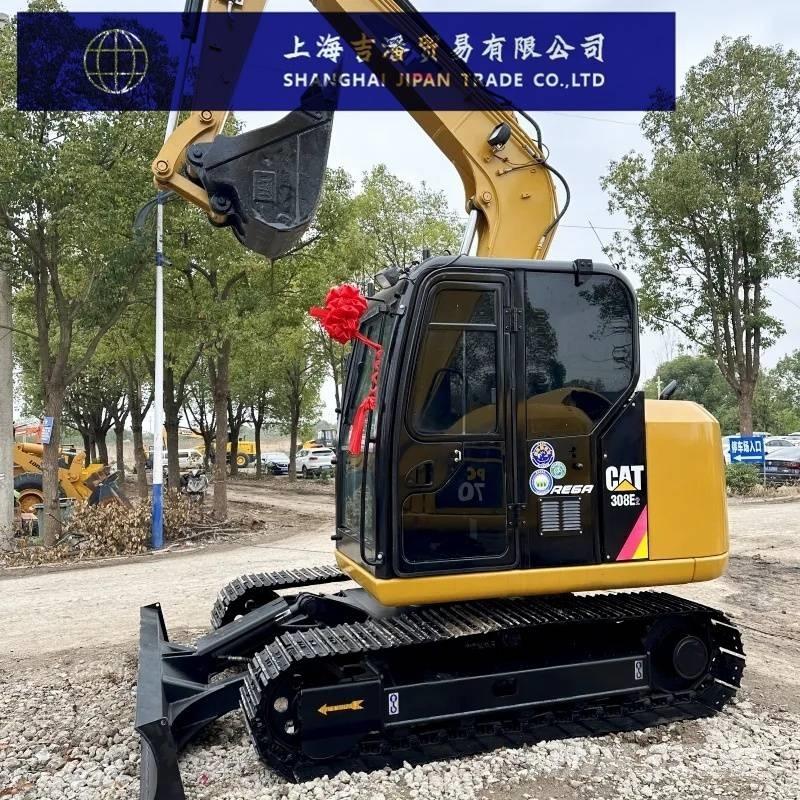

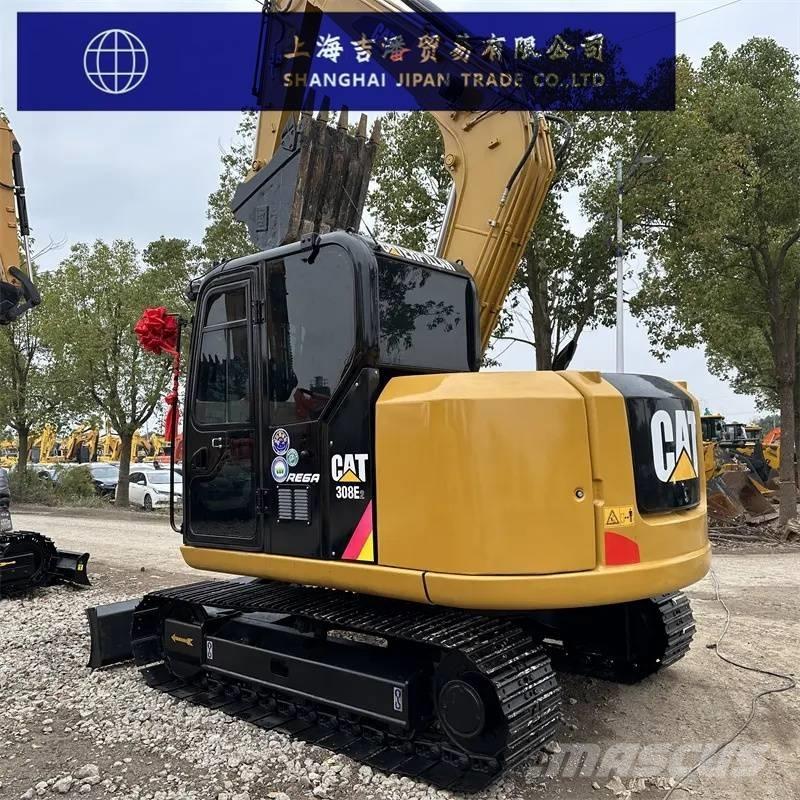

卡特 308E

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Engine System Model: Cat® C3.3 DI Turbo Bore: 94mm Stroke: 120mm Displacement: 3.3L Net Power: 62.8hp (46.8kW) Gross Power @ 2000rpm: 66.7hp (49.7kW) Operating Weight & Related Standard Configuration Operating Weight: 15,785lb (7,160kg) Operating Weight with Long Stick and Blade: 17,108lb (7,760kg) Operating Weight with Standard Stick: 15,785lb (7,160kg) Operating Weight with Standard Stick and Blade: 17,020lb (7,720kg) Operating Weight with Long Stick: 15,851lb (7,190kg) Bucket Capacity The standard bucket capacity is typically 0.38m³, with optional configurations such as 0.31m³ available. Travel System Travel Speed - Low: 2mile/h (3.2km/h) Travel Speed - High: 3.2mile/h (5.1km/h) Maximum Traction Force: 12,792lb (56.9kN) Maximum Gradability: 30° Hydraulic System Working Pressure - Implement: 4,061psi (28,000kPa) Working Pressure - Travel: 4,061psi (28,000kPa) Working Pressure - Swing: 3,481psi (24,000kPa) Pump Flow @ 2000rpm: 38.8gal/min (147l/min) Bucket Digging Force: 12,837lb (57.1kN) Stick Digging Force - Standard: 8,745lb (38.9kN) Swing System Machine Swing Speed: 10.8r/min Swing Torque: 12,022lb/ft (16.3kN·m) Blade Width: 7.6ft (2,300mm) Height: 17.7in (450mm) Digging Depth: 13.8in (350mm) Lifting Height: 15.4in (390mm) Dimension Parameters Overall Transport Length: 6,080mm Overall Transport Width: 2,320mm Overall Transport Height: 2,700mm Maintenance Refill Capacities Cooling System: 3.2gal (US) (12.1l) Engine Oil: 3gal (US) (11.2l) Hydraulic Tank: 13.5gal (US) (51l) Fuel Tank: 35.7gal (US) (135l) Hydraulic System: 24.8gal (US) (94l) Working Range Maximum Digging Radius: 6,420mm Maximum Digging Depth: 4,210mm Maximum Digging Height: 7,330mm Maximum Dumping Height: 5,300mm
