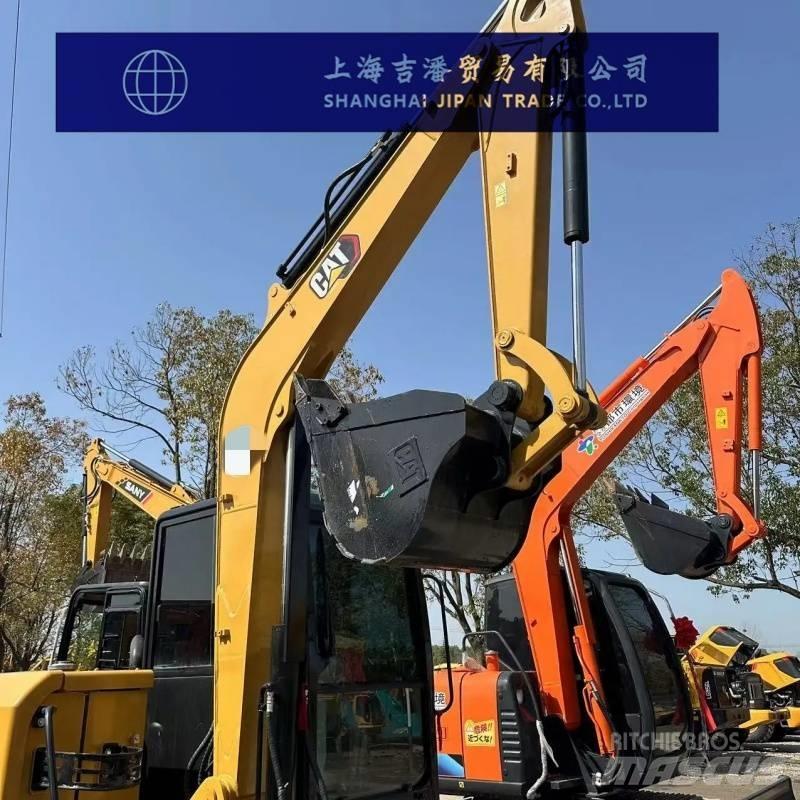

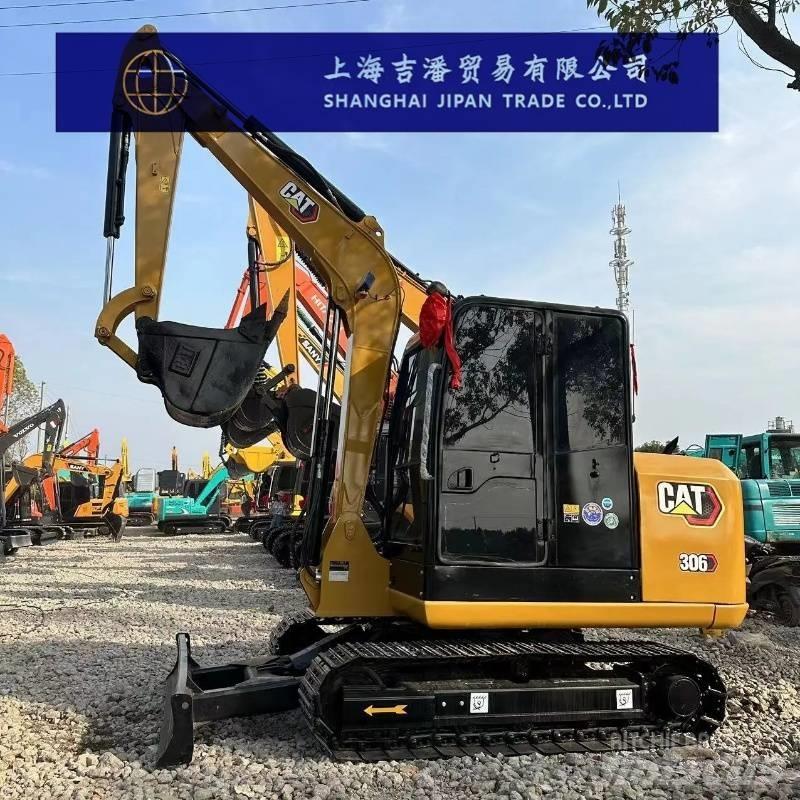

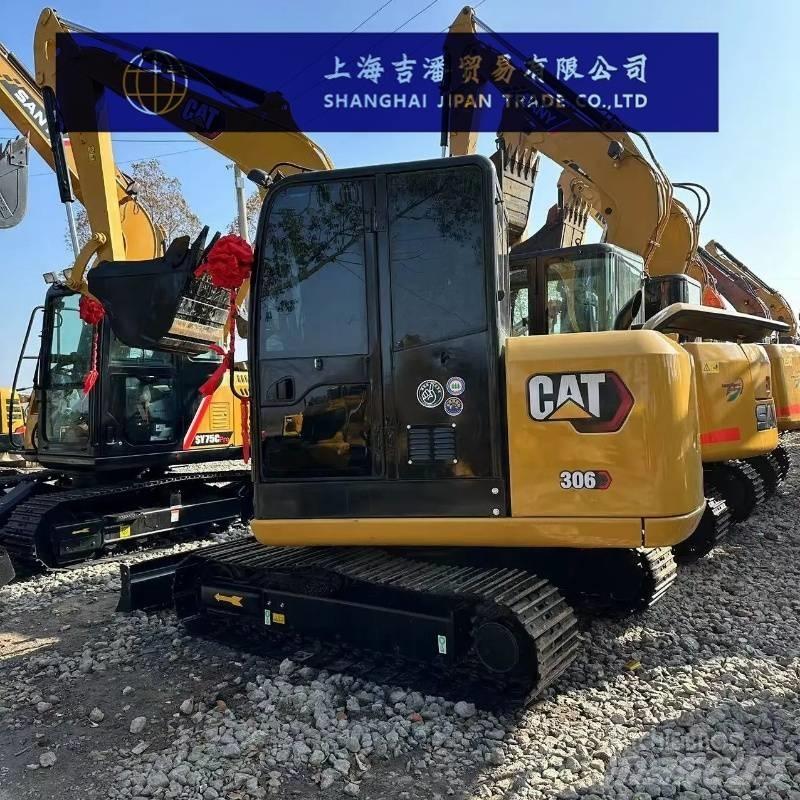

卡特 306

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Specification The overall working weight of the machine (kg) is 5795 Bucket capacity (m³)0.22 The length of the bucket pole (mm) is 1580 The place of origin is Wujiang, Jiangsu Province Tonnage (tons)6 Power, traditional power Bucket backhoe Joint venture/import by manufacturers Power, traditional power Performance Rotational speed (rpm)10.3 Rotational torque (Nm)14.2 Walking speed (km/h) : 2.8/4.8 Bucket digging force (kN)40 The digging force of the boom (kN) is 26 Maximum traction force (kN)48.2 Power system Engine model Cat C2.6DLturbo Rated power (kw/rpm)41.5 Displacement (L) : 2.615 Bore × stroke (mm)87×110 The cooling method is water cooling The working form is direct spray. Turbocharging Oil capacity Fuel tank (L)135 Hydraulic oil tank (L)58 Hydraulic System (L)85 Engine oil change rate (L) : 11.2 Coolant (L)15.5 Main body size Total transportation length (mm) : 5990 Total transportation width (mm)1950 Total transportation height (mm) : 2540 Track grounding length (mm)1900 The total length of the track (mm) is 2500 Track plate width (mm)400 The minimum turning radius (mm) of the front-end working device is 2470 Rear end rotation radius (mm)1700 Scope of work Maximum excavation radius (mm) : 6140 The maximum excavation radius (mm) of the shutdown surface is 6010 Maximum excavation depth (mm) : 3800 Maximum excavation height (mm) : 5530 Maximum unloading height (mm) : 3960
