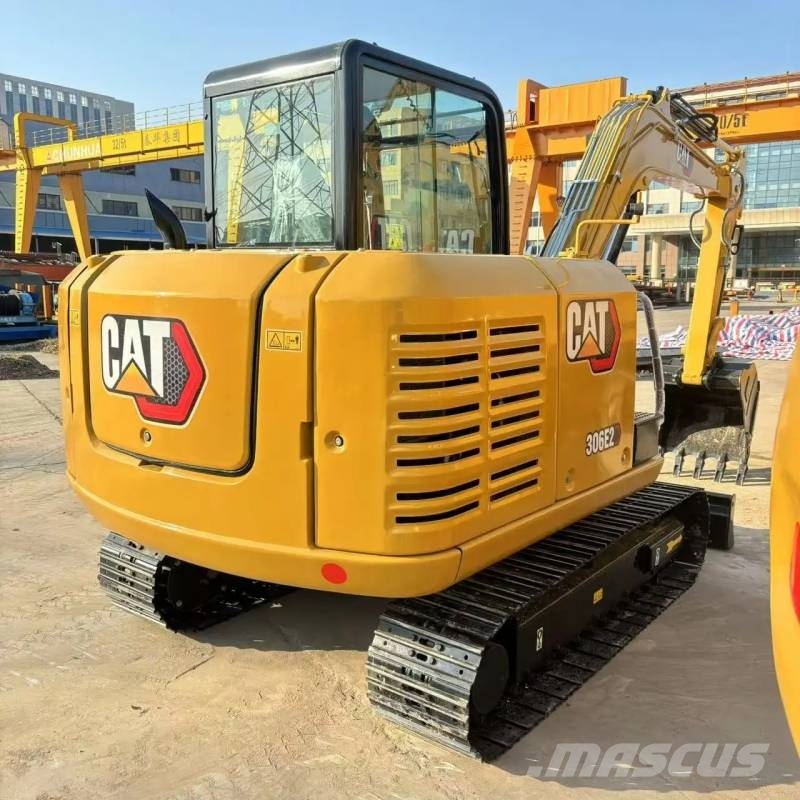

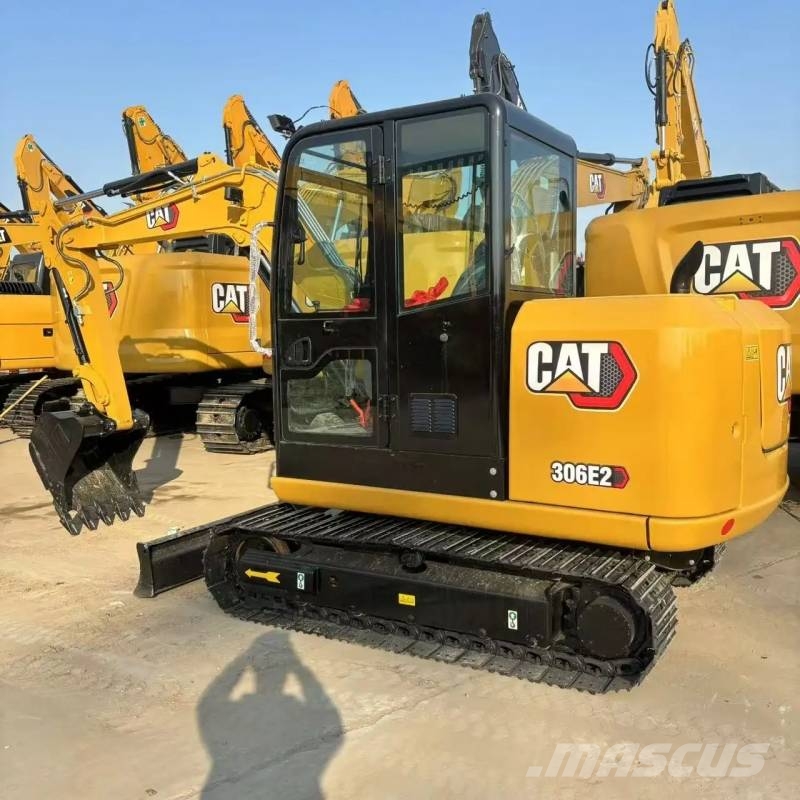

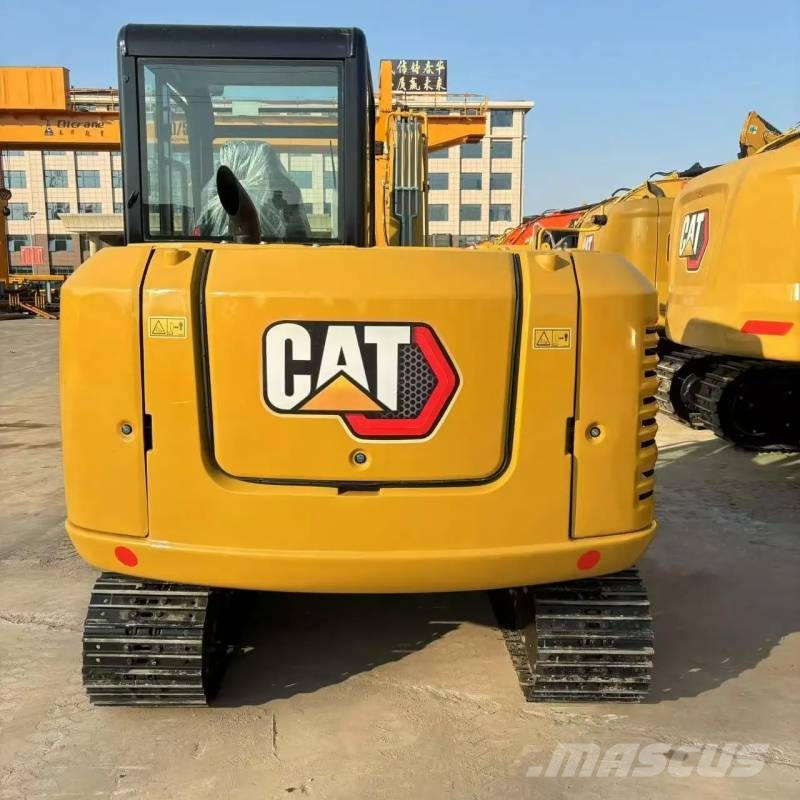

卡特 306 E2

# CAT 306E2 (English Specs) - Model: CAT 306E2 - Operation weight: 5800 kg - Bucket capacity: 0.25 m³ - Max digging depth: 4110 mm - Transport dimension: 5785 mm(L) × 1950 mm(W) × 2540 mm(H) - Max digging radius at ground level: 6090 mm - Max dumping height: 5150 mm ### Engine - Engine model: CAT C2.4 DI Turbo - Rated net power: 34.7 kW (47.2 HP) @2400 rpm - Displacement: 2.4 L - Fuel tank: 78 L ### Hydraulic System - Main system pressure: 25000 kPa - Bucket breakout force: 37.5 kN - Arm breakout force: 28.2 kN ### Travel & Swing - Travel speed: 3.1 / 4.3 km/h - Swing speed: 10.5 rpm - Track shoe width: 400 mm - Ground pressure: 0.32 kgf/cm²
