卡特 306 E2

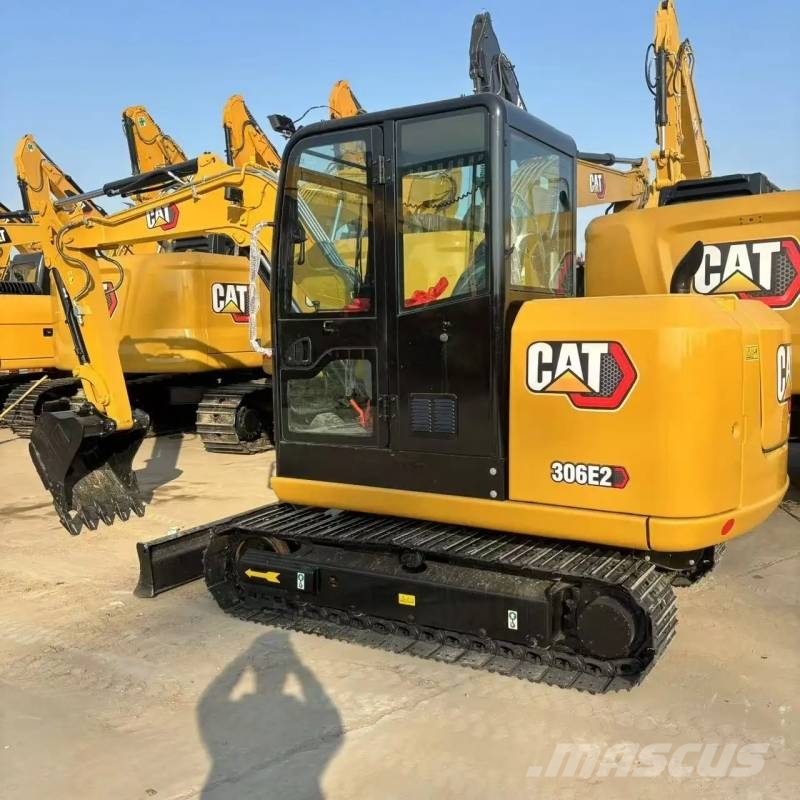

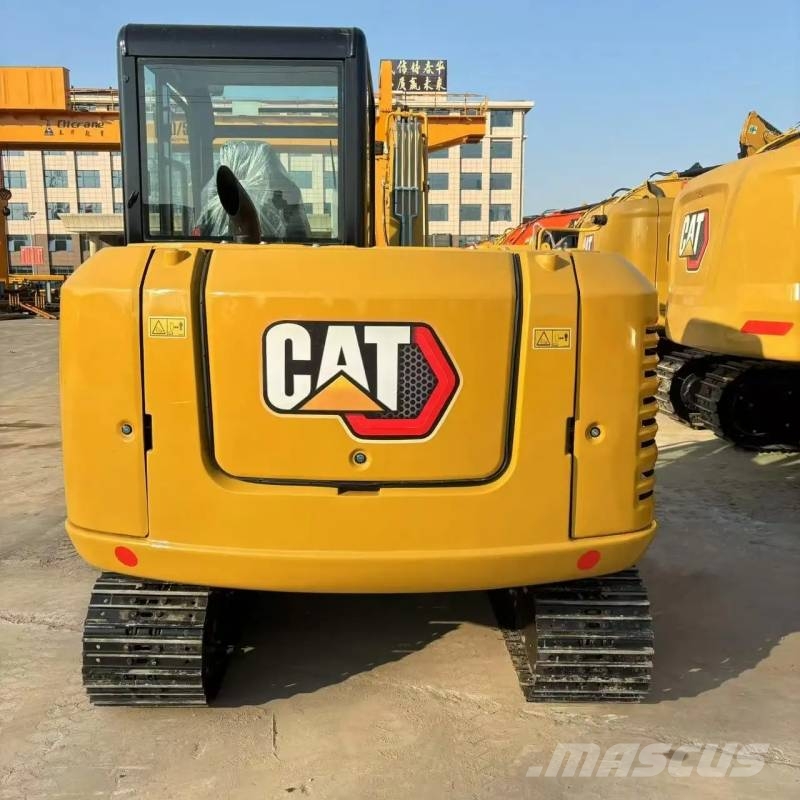

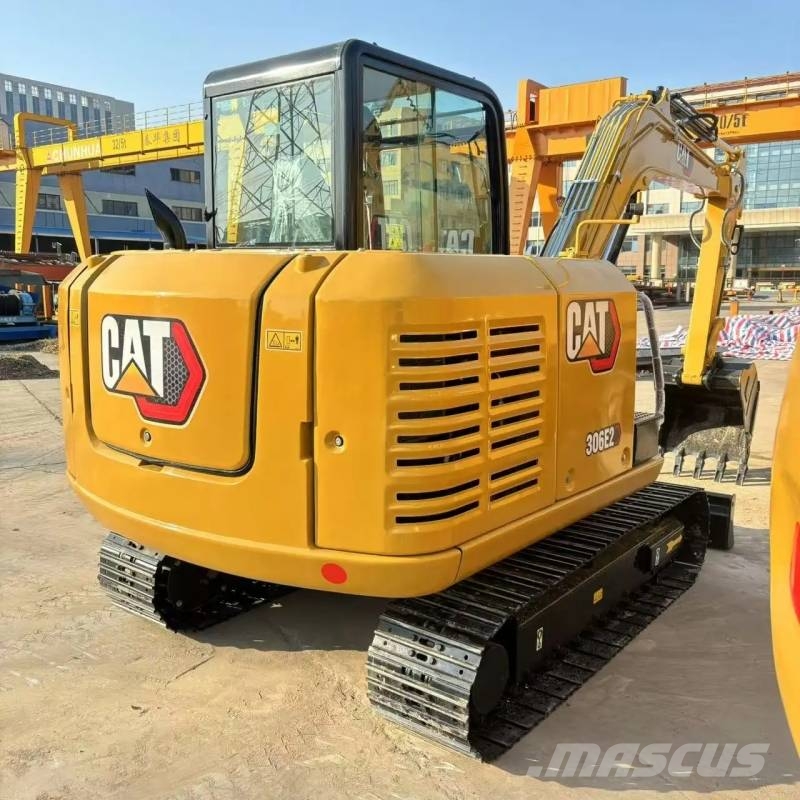

# CAT 306E2 Crawler Excavator Specifications Model: CAT 306E2 Operating Weight: 5800 kg Bucket Capacity: 0.25 m³ Transport Dimensions (L×W×H): 5785 × 1950 × 2540 mm Track Shoe Width: 400 mm Travel Speed (High/Low): 4.3 / 2.8 km/h Swing Speed: 10.5 rpm Bucket Digging Force: 39 kN Arm Digging Force: 28 kN Max Digging Depth: 3870 mm Max Digging Radius: 6090 mm Max Dumping Height: 3900 mm ## Engine Engine Model: Cat C2.4 DI Turbo Rated Net Power: 34.7 kW / 2400 rpm Displacement: 2.4 L Emission Standard: China Nonroad Stage III Fuel Tank Capacity: 78 L ## Hydraulic System Main Pump Max Flow: 140 L/min Max Working Pressure: 25000 kPa
