凯斯 CX 58 C

We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method:Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.

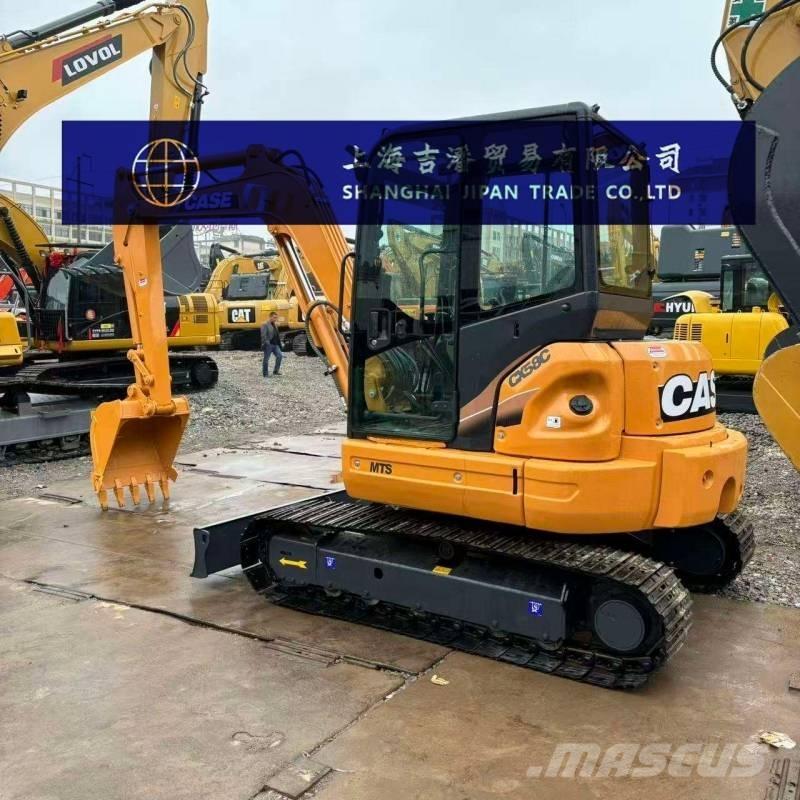

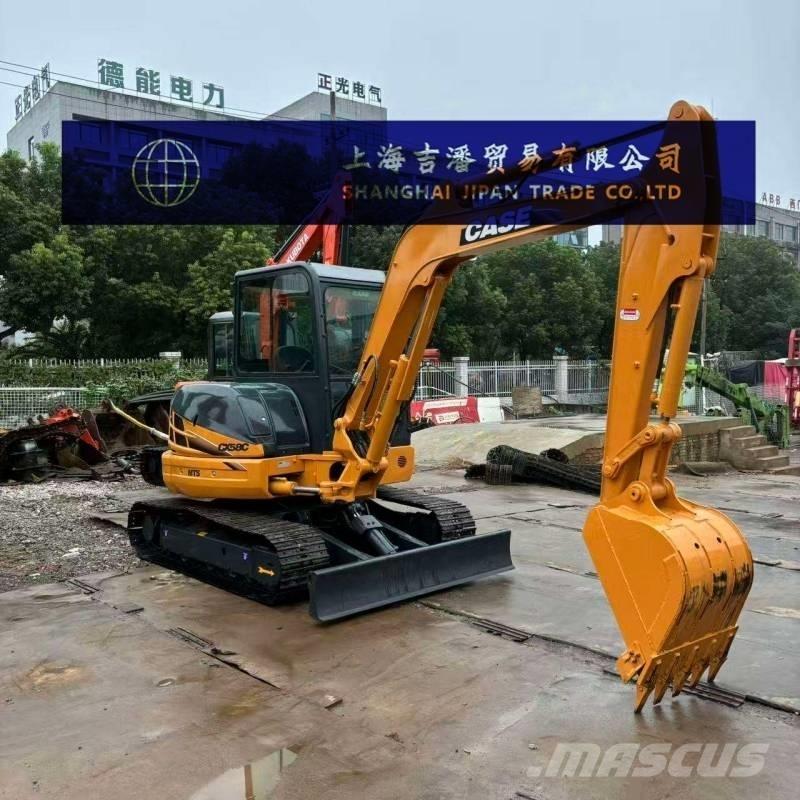

Parameter configuration of Case CX58C excavator Specification Tonnage (tons)5 The overall working weight of the machine (kg) is 5585 Bucket capacity (m³):0.08-0.28 Boom length (mm):2980 The length of the boom (mm) is 1660 Origin: the United States Performance Rotational speed (rpm):8.9 Walking speed (km/h)2.7/4.6 Climbing ability (%)58 Ground specific pressure (Kpa):29 Bucket digging force (kN)50 The digging force of the bucket arm (kN) is 25.5 Power system Engine model: YANMAR 4TNV88-BXPYBD(Tier IV) Rated power (kw/rpm):30.7/2400 Displacement (L)2.2 Number of cylinders (4 Cylinder diameter × stroke (mm)88×90 The cooling method is water cooling The working form is direct injection diesel engine Hydraulic system Main pump type variables: Axial piston pump ×2+ gear pump ×2 The rotary hydraulic motor type is an axial piston motor The type of walking hydraulic motor is axial piston motor ×2 The maximum flow rate of the main pump (l/min) is 57.1×2+33.8+12.2 Working hydraulic circuit (Mpa)23 Walking hydraulic circuit (Mpa)23 Rotary hydraulic circuit (Mpa)20.1 Boom cylinders - number × cylinder diameter × stroke (mm)1-100×680 Bucket rod cylinder - number × cylinder diameter × stroke (mm)1-90×735 Bucket cylinder - number × cylinder diameter × stroke (mm)1-75×543 Is the hydraulic crushing pipeline standard? Yes Oil capacity Fuel tank (L)75 Hydraulic oil tank (L)34 Hydraulic system (L)61 Engine oil change volume (L)7 Coolant (L)6 Main body size The total transportation length (mm) is 5420 Total transportation width (mm):1960 The total transportation height (mm) is 2550 The total height of the cab (mm) is 2550 Track grounding length (mm)1990 The total length of the tracks (mm) is 2480 Track plate width (mm):400 The total width of the track (mm) is 1960 Track gauge (mm):1560 The ground clearance of the counterweight (mm) is 625 The minimum turning radius (mm) of the front working device is 2430 The rear end turning radius (mm) is 1180 Scope of work Maximum excavation radius (mm):6220 The maximum excavation radius of the shutdown face (mm) is 6070 Maximum excavation depth (mm):3910 Maximum excavation height (mm):5760 Maximum unloading height (mm):4200 Maximum vertical excavation depth (mm):3060 Maximum effective excavation depth (mm):3220 Boom rotation Angle (left/right °)70/60 The width × height (mm) of the bulldozer board is 1960×345 The bulldozer shovel lifts or deepens (mm)495/345
