Unic B-350.1V
不含税价格
向卖家询价
打印
信息
类别
轻小型起重机
品牌/型号
Unic B-350.1V
生产年份
2020
使用小时
450 小时
设备所在位置
Duisburg, Nordrhein-Westfalen
国家
德国
一般等级
1
2
3
4
5
马斯客 ID
ECB00724
详细信息
先前车主有几个
1
毛重
2440 公斤
最大起重能力
3500 ton
最小吊杆长度
2.53 m
吊杆长度
8.65 m
吊杆末端的最大起重能力
800 ton
起重机吊杆长度
8.65 m
最大举升高度
12 m
起重机吊钩高度-吊臂水平范围
8.80 m
起重机吊钩高度-吊臂幅度
2.60 m
运输尺寸(长x宽x高)
2.69 x 630 x 1.38 mm
制造国
日本
成交条件
FCA, CFR, EXW
证书
CE认证, TUV
附属装置
mechanische Multifunktionale Klappspitze
mit Kopfrolle und Wirbelhaken
Kurzspitze 0,30 m, max. Traglast 700 kg
Hakenflasche 2-rollig, max. Traglast 3,5 t
Einseilhaken (Bommel), max. Traglast 900 kg
配件
大钩滑轮
文件
其他信息

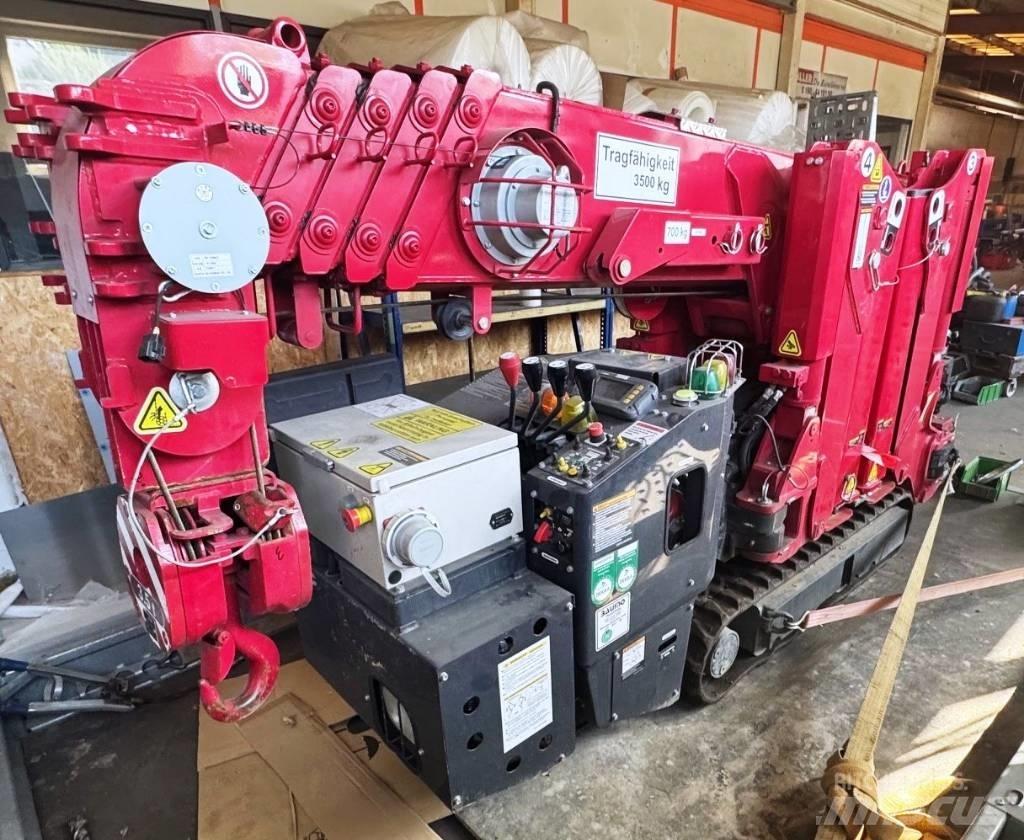

UNIC spider crane B-350.1V, year 2020, used
450 working hours, petrol engine, electric drive,
variable outrigger system, mechanical multifunctional swing-away jib
TECHNICAL DETAILS:
max. lfiting capacity 3,5 t x 1,4 m
max. working range 10,0 m
max. lifting height 12,0 m
max. outrigger base 3,9 x 3,9 m
DIMENSIONS & WEIGHT
Length 2.690 mm, width 630 mm, height 1.375 mm
total weight 2.440 kg
CRANE EQUIPMENT:
mechanical multifunctional swing away jib, length 1,3 /1,9 / 2,6 m,
max. loading capacity 700 / 500 / 250 kg, angel 10°, 45°, 80°
with sheave head usable as jib extenstion
with swivel hook usbale as assembly jib
0,30 m short jib with swivel hook, max. loading capacity 700 kg
one winch
radio remote control, multi functional
petrol engine 13 kW
electric drive 380 V, 25 m cable
Safe Load Indicator System Rayco Wylie Sysstem i4500
working range limiter, height range limiter
360° slewing range unlimited
variable outrigger system, computer controlled
drive and operation levels on crane
working light, black rubber tracks, (non-marking tracks as option available)
2-sheave hook block, max. capacity 3,5 t
singel line hook, max. capacity 900 kg
searcher hook max. capacity 900 kg
full documentation available:
operation manual, load charts, CE certfificate of conformity, spare part list
Mini & Mobile Cranes Körner GmbH
Alte Kaserne 23 47249 Duisburg Nordrhein-Westfalen 德国
