Maeda MC815

1,500kg Hydraulic type fly-jib 1,000kg Searcher hook Single fall hook Rubber pads (black or white)

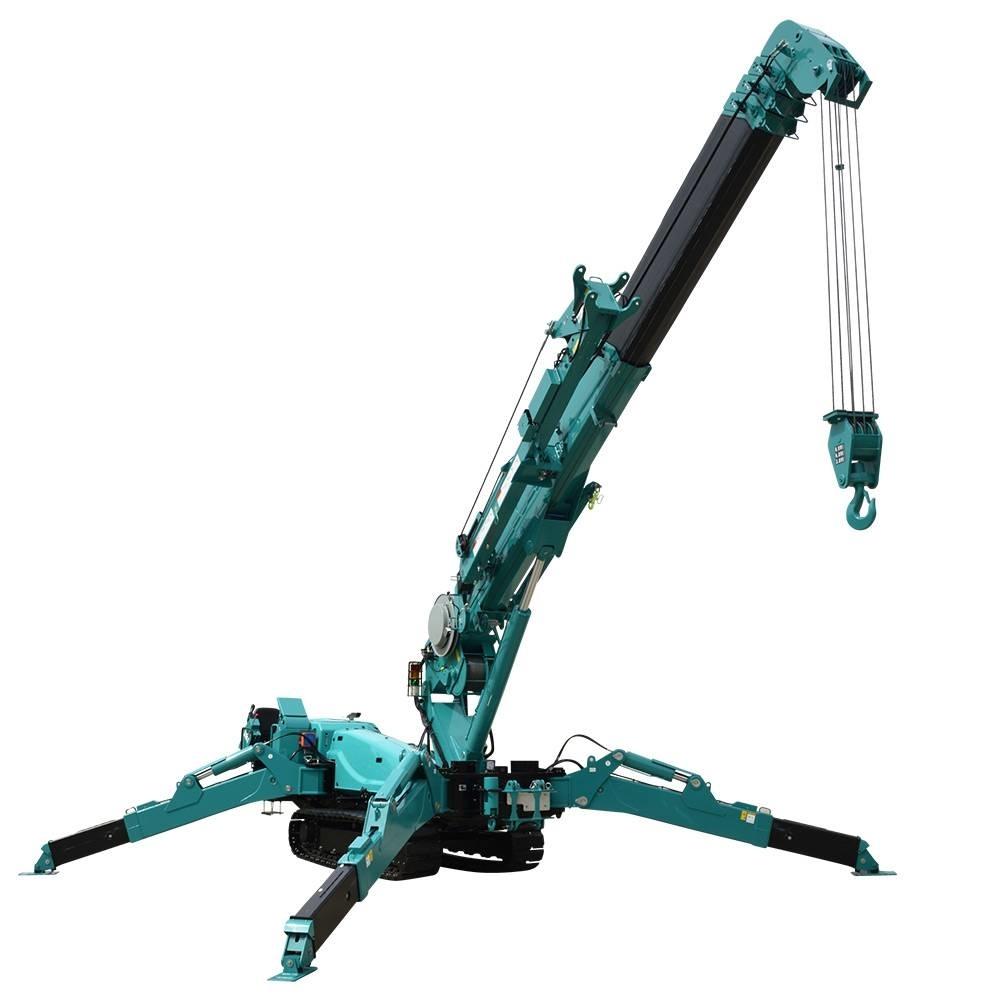

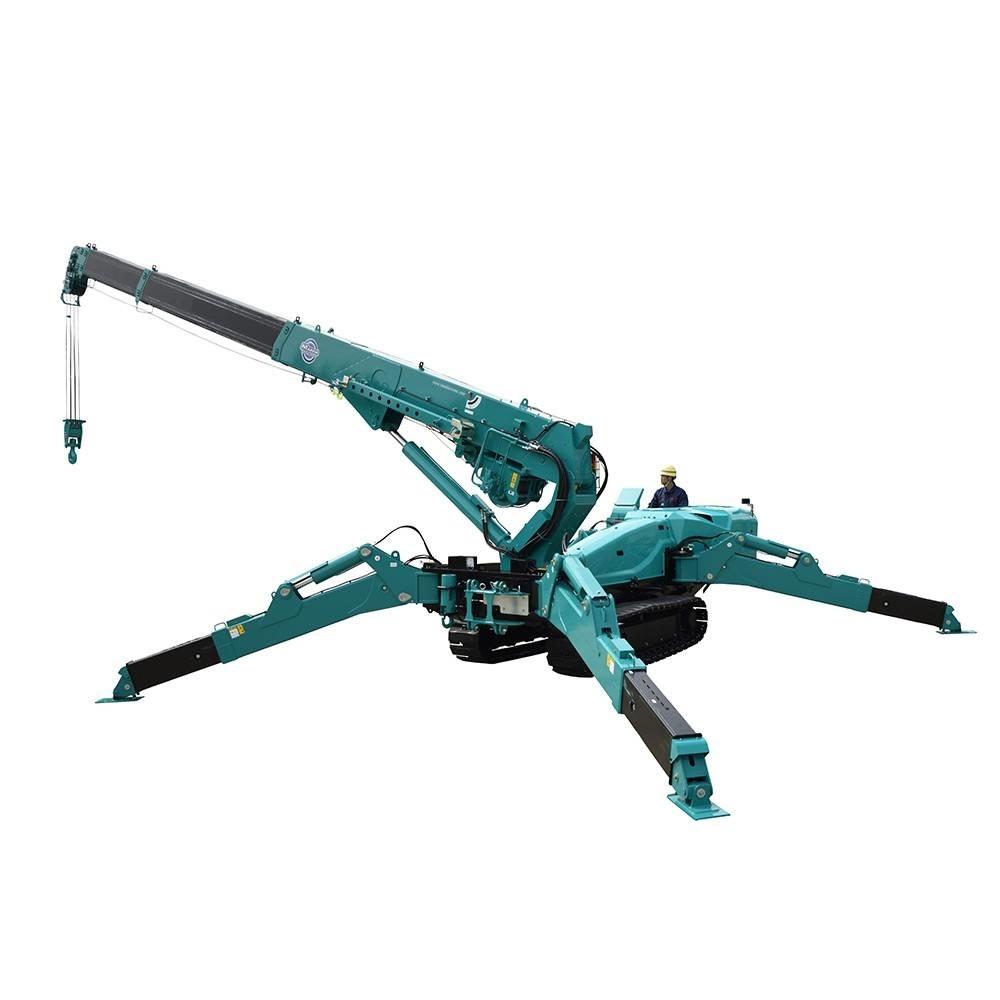

The MC815 model stands at the head of the Maeda range with a massive 8.09 tonnes lifting capacity making it the strongest lifter to date. With a 19.6m lifting height, new 10.4” multi function touchscreen monitor and the added bonus of 1000kg pick and carry capacity, this crane offers unrivalled versatility with great lifting duties. The optional 1500kg SWL hydraulic 2-section Fly Jib increases maximum lifting height to 25.5m. There is an all new Searcher Hook giving class leading duties of 1000kg. New to this model is power lifting mode and multi outrigger mode, joystick control radio system, self levelling function, auto crane stow via remote and EU stage IIIB compliant engine to make it environmentally friendly. • 8.09 Tonne Max Capacity • 19.6m Max Lifting Height / 25.5m with Optional Fly Jib Attachment • 1000kg Pick & Carry Duty • Crane/Outrigger Interlock System • 10.4 inch Touch Panel LCD Monitor • Auto Stowage • Slew Restriction Device • Hydrostatic Transmission • 6 fall / 4 fall / 2 fall Hook Block • Tilt Sensor/Alarm • Data Logger • Multi Outrigger Mode • Joystick Remote Control • Self Levelling Function • 2 Year Warranty We are the master distributor of Maeda Mini Cranes in Europe, Russia, Africa and the Middle East. Contact us for a demo and an individual offer. www.kranlyft.com
