Maeda MC285CB-3

不含税价格

Compnay LOGO
Images6Videos1

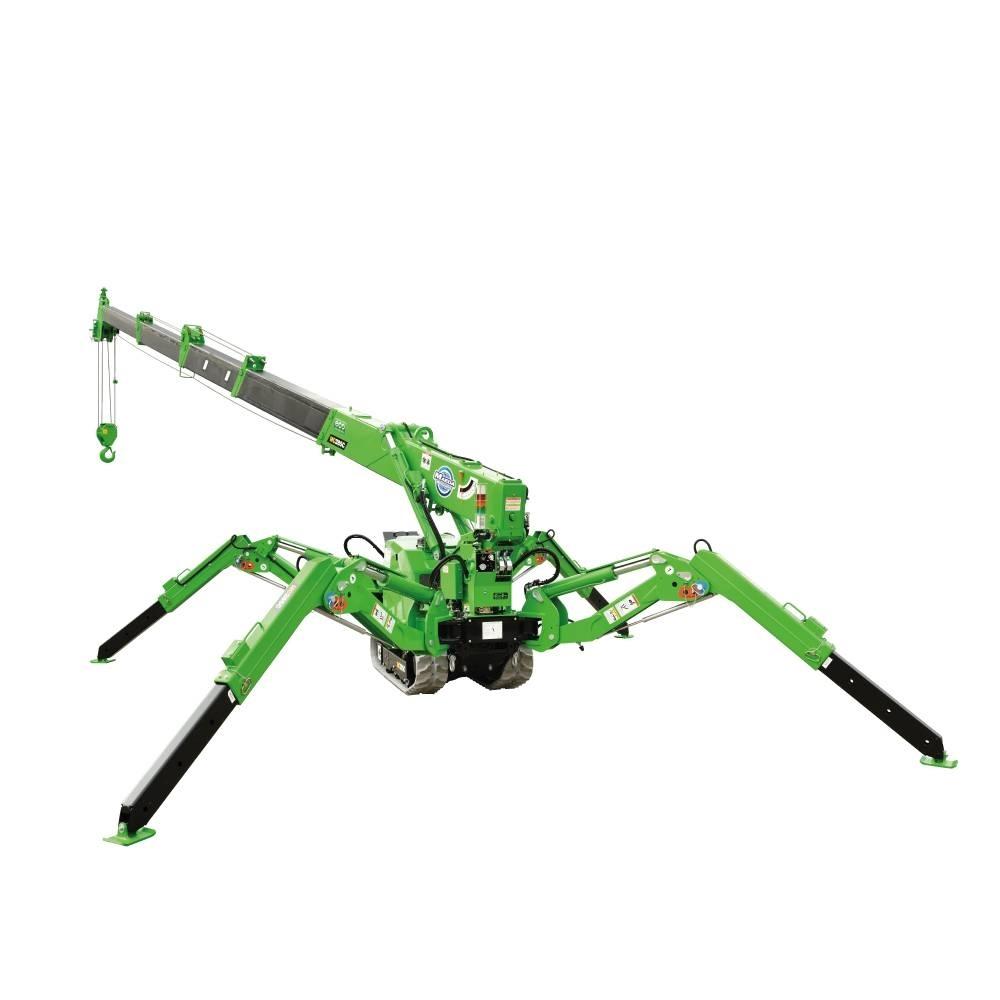

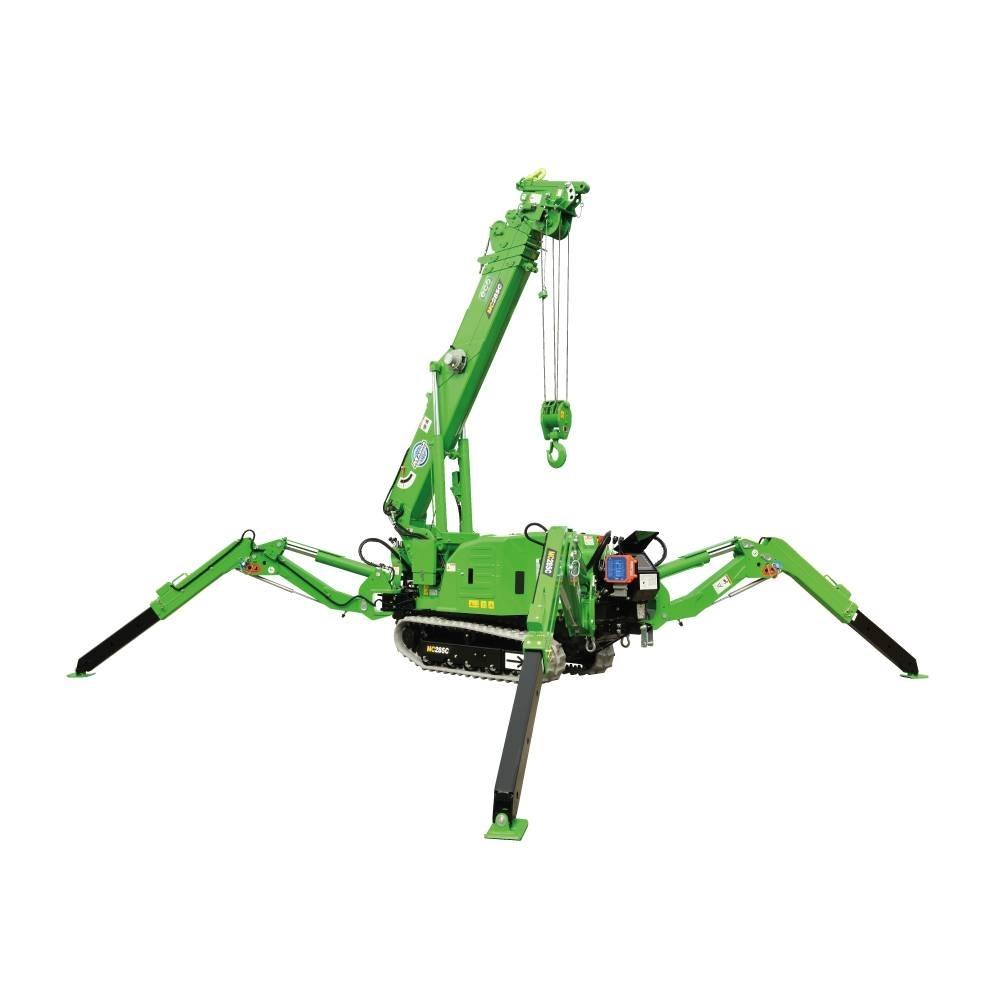

Maeda MC285CB-3 轻小型起重机
Maeda MC285CB-3 轻小型起重机
Favorite收藏
share分享
Save search保存搜索
打印

信息

类别
轻小型起重机
品牌/型号
Maeda MC285CB-3
生产年份
2021
附加选项
未使用
设备所在位置
MÖLNLYCKE, Västra Götalands län
国家
瑞典
一般等级
1
2
3
4
5
马斯客 ID
CA2FBCA2

定价

选择币种

详细信息

售后服务记录
是
毛重
1995 公斤
最大起重能力
2820 公斤
排放标准
第V阶段
吊杆末端的最大起重能力
150 公斤
发动机制造商
Toshiba
最大举升高度
870 厘米
起重机吊钩高度-吊臂水平范围
820500 厘米
运输尺寸(长x宽x高)
2800 x 750 x 1470 mm
状态/质保
Yes, 2 year
剩余前轮/车盘
100
后轮胎折旧程度
100
制造国
日本
证书
EPA环境保护署, CE认证, ANSI
其他信息
The MC285CB-3 is the very first fully electric powered mini crane from Maeda. With absolute zero emissions it can safely be used in sensitive indoor environments, and when regulations need to be achieved. Improved energy efficiency and productivity as well as reduced ventilation needs and maintenance costs are some of the benefits beyond the clear environmental aspect. With a lithium-ion battery, this crane can be operated continuously for over 9 hours, and be fully charged in only 3.5 hours. On top of that, continuous operation is possible while charging which facilitates use. The crane capacity and operating speeds have not been compromised since it equals the regular MC285C-3. The battery-operated MC285CB-3 has a maximum capacity of 2.82 ton x 1.4m. Maximum lifting height on the ground is 8.7m and the maximum working radius is 8.205m x 0.15t. All this is packed in this innovative piece of engineering that only weighs in at 1995kg. As always with products from Maeda we can expect the highest quality and reliability together with great guarantees. Crane Capacity – 2.82t x 1.4m Max. Working Radius – 8.205m x 0.15t Max. Lifting Height – 8.7m Max. Reach Below Ground – 10.1m (4 falls) / 40.4m (single fall) Max. Reach Below Ground (Aux Winch) – 100m (single fall) Outrigger Max. Extended Width – (Lat.) 4,782mm x (Fr.) 4,718mm x (Re.) 3,990mm Travel Speed – 0-2.0km/h Travel Ground Pressure – 50.2kpa (0.512kgf/cm2) Battery Type – Lithium Titanate Battery 5-hour rate capacity – DC55V – 135Ah Input Voltage / current – Single phase AC200V / 16A, AC100V / 15A Charging time (with AC-200V) – 80% : 2h 20min / 100% : 3h 30min Continuous operating time (crane) – 9h 30 min (based on Maeda’s assumed cycle) Charging during operation – Available Options – Black rubber tracks, Single fall hook, 850kg searcher hook. Dimensions – 2,800mm (L) x 750mm (W) x 1,470mm (H) Machine Weight – 1,995kg显示更多
