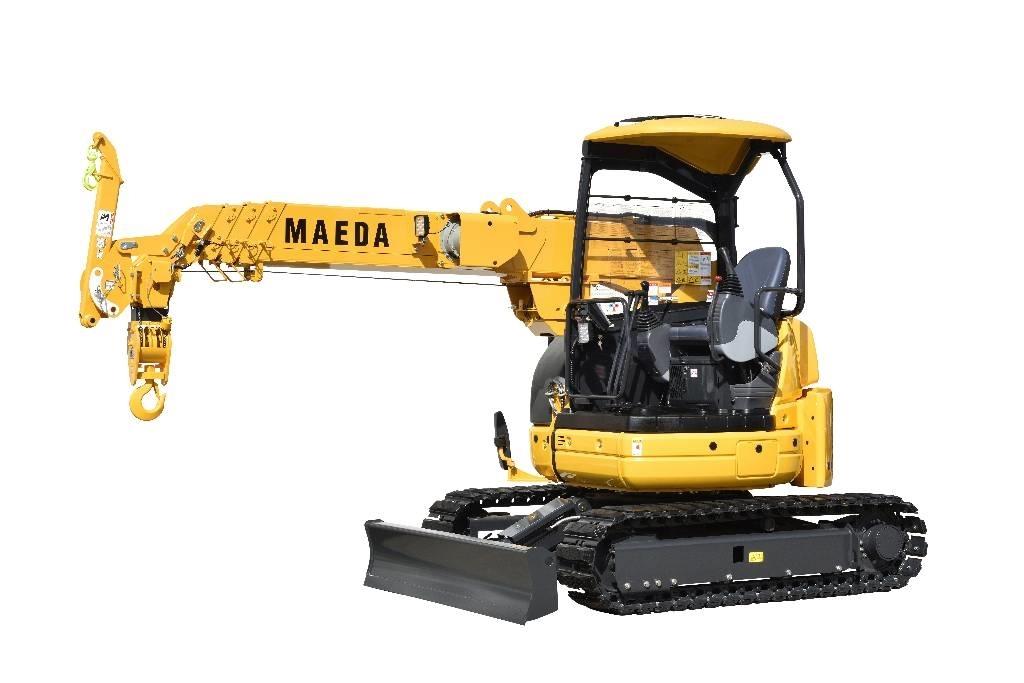

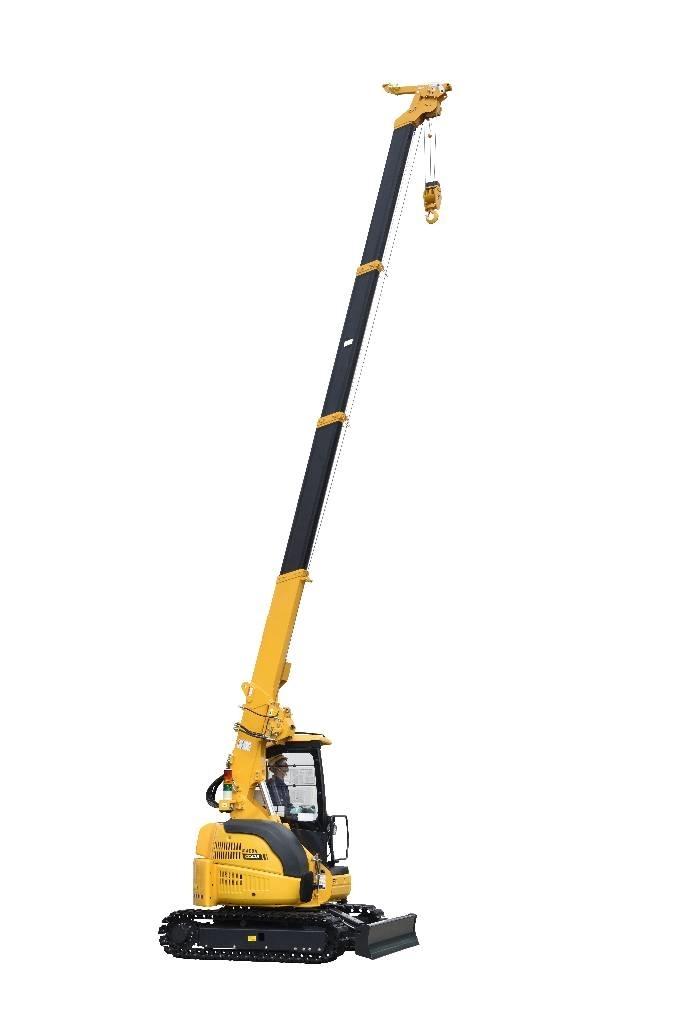

Maeda CC423S-1

850kg Searcher Hook

1465kg Pick and Carry Duty Blade Programmable Moment Limiter 4 Fall / 2 Fall Hook Block Tilt Alarm Powerful Winch with Hydraulic Disc Brake Minimal Tail Swing Optional 850kg Searcher Hook Data Logger Pilot Pressure Travel Control Equivalent to EPA Tier 4 Engine New 7 inch Multi Monitor 2 Year Warranty Crane Capacity – 2.93t x 1.5m Max. Working Radius – 8.38m x 0.20t Max. Lifting Height – 9.46m Max. Reach Below Ground – -15.5m (4 falls) Pick & Carry Capacity – 1,465kg Travel Speed – 0-4.6km/h Travel Ground Pressure – 43.5kpa [0.44kgf/cm2] Engine – YANMAR 3TNV88F-EPMBA / Diesel Engine Rated Output – 17.5kw/2,400rpm Dimensions – 4,020mm (L) x 1,740mm (W) x 2,495mm (H) Tail Swing – 980mm Machine Weight – 4,400kg (Rubber Pads : +90kg)
