Jekko JF545
不含税价格
向卖家询价
打印
信息
类别
轻小型起重机
品牌/型号
Jekko JF545
生产年份
2024
使用小时
100 小时
国家
波兰
一般等级
1
2
3
4
5
马斯客 ID
7F85952F
详细信息
毛重
13730 公斤
最大起重能力
15500 ton
发动机制造商
DIESEL
运输尺寸(长x宽x高)
5830 x 1840 x 2830 mm
状态/质保
TAK
制造国
意大利
其他信息

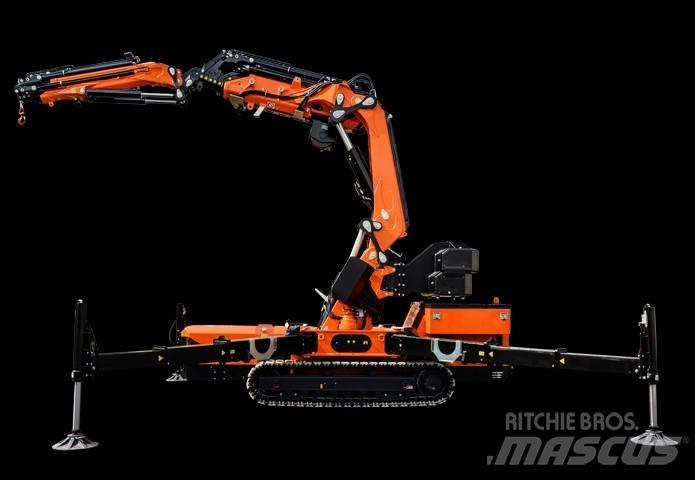

Diesel powered articulated crawler crane mod. JF545CDH-3
Diesel KUBOTA electronic engine V3307-CR-TE4B - 55.4Kw
Engine Stage V - Tier IV Final
Lifting Class : 53 Tm / 518 kNm
Max capacity: 15,5 ton
Nr 6 hydraulic telescopic sections on the main boom
Double hydraulic engine on the slew ring
Double linkage on the boom articulations + Prolink
Continuous rotation on slew ring
Scanreco Radio remote control - 8 levers - LCD display - Version A *
Steel crawlers with two hydraulic engines
Automatic and variable geometrical stability control with 5 stability
levels
Counterweight 3,5 ton
Tool Boxes
USB stick with Manuals & Documents
Color RAL 2004 Crane, Carters, Tools Boxes
Color RAL 9005 Frame/Outriggers
PP400.13-JFM Threephase Electric Power Pack 13kW - 50Hz 400V
WTP-JF545 Low Marking White Track pads
W2000-JFM Winch V20, 2 ton with pulley block for 3 lines, 60m
rope, pulley kit on main boom
CW-JF545 Automatic system for counterweight self-dismantling
ME1-JF545.6 Manual extension (on the 6th extension of the main
boom)
MEH-JF545.6 Searcher hook kit (on the 6th extension of the main
boom)
JIB3000.6HA Hydraulic luffing jib with link, 3.000 kg SWL, 6
hydraulic extensions
PS-JF545 Pulley kit for winch V20 on hydraulic JIB
MQC-JFS/JFM Multi quick-coupling (oil) between crane and JIB
ME1-JIB3000.6HA Manual extension (on the 6th extension of the jib)
MEH-JIB3000.6HA Searcher hook kit (on the 6th extension of the
jib)
HA-JIB3000.6HA Electrohydraulic Activation on JIB3000.6HA
MWP-2PGR.JIB3000.6 2 Men painted steel basket, gravity levelling,
with mechanic slewing, for JIB3000.6HA
MWP-CERT MEWP Certification on Man-Baske
JEKKO Polska Sp. z o.o.
ul. Przemysłowa 2 64-200 Wolsztyn Wielkopolskie 波兰
