Horyong BMK-403 ECO

不含税价格

Compnay LOGO
Images10

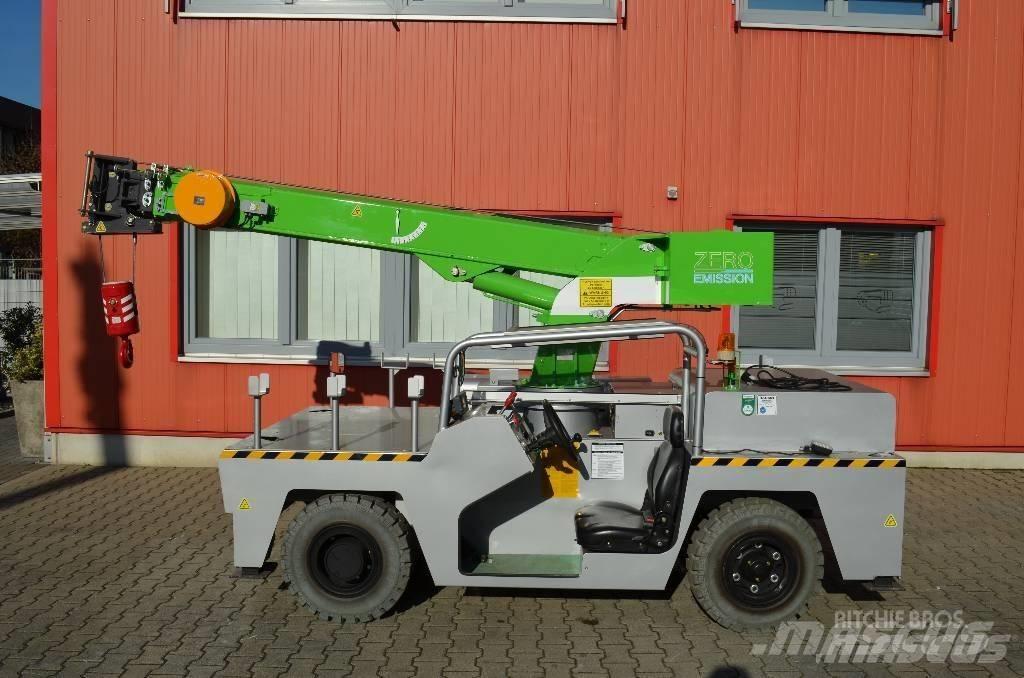

Horyong BMK-403 ECO 轻小型起重机
Horyong BMK-403 ECO 轻小型起重机
Horyong BMK-403 ECO 轻小型起重机
Favorite收藏
share分享
Save search保存搜索
打印

信息

类别
轻小型起重机
品牌/型号
Horyong BMK-403 ECO
生产年份
2018
使用小时
287 小时
设备所在位置
Duisburg, Nordrhein-Westfalen
国家
德国
一般等级
1
2
3
4
5
马斯客 ID
359B22F4

定价

选择币种

详细信息

毛重
4019 公斤
最大起重能力
4000 公斤
吊杆长度
680 厘米
起重机吊杆长度
680 厘米
发动机制造商
Akku
最大举升高度
1020 厘米
起重机吊钩高度-吊臂水平范围
840 厘米
起重机吊钩高度-吊臂幅度
221 厘米
运输尺寸(长x宽x高)
435000 x 157000 x 205000 mm
轮胎品牌
NM-Bereifung
剩余前轮/车盘
100%
后轮胎折旧程度
100%
成交条件
FCA, CFR, EXW
证书
CE认证
配件
大钩滑轮
其他信息
Battery industrial yard crane HORYONG BMK-403 ECO, used unit battery drive, CE 2018, approx. 287 working hours Pick+carry and Carry deck TECHNICAL DETAILS: max. lifting capacity 4,2 t x 0,9 m max. load pick + carry 2,9 t max. load on carry deck 2,5 t max. working range 6,7 m (8,2 m with fly jib) max. hook height: 8,41 m (10,2 m with fly jib) DIMENSIONS & WEIGHT length 4.350 mm width 1.570 mm, height 2.050 mm total weight of crane: 4.019 kg outrigger base: 2.330 mm x 3.330 mm CRANE EQUIPMENT: telescopic main boom 3,07 bis 6,8 m, fully hydraulic, 3 sections fly jib with sheave head 2,2 m, max. lifting capacity 1,2 t, angel 0°, 25°, 50° one winch 360° slewing range unlimited Electronical Safe Load Indicator System Rayco Wylie i4500 working range limiter optical and voice warning system working light, emergency stop, round-about light hook block 1-sheave, max. 4,0 t lifting capacity drive 4 x 2 x 2 Carry-Deck for goods, size 1,55 m², max. load 2,9 t 3 pieces pipe holders / transport holders 4-point hydraulic outriggers, front and rear electric engine with batteries, 2x 10 kW, 72V / 300 Ah, rechargable batteries, integrated battery charger max. speed of crane is 6 km/h 4x non marking tires open crane driver cabin with lattice protection roof, operation panel The electric yard crane crane is in good working condition and can be ideally used inside hall areas where exhausts are vorbidden, The unit is immediately available ex our yard and can also be rented for jobsites in Germany.显示更多

Mini & Mobile Cranes Körner GmbH

Alte Kaserne 23 47249 Duisburg Nordrhein-Westfalen 德国
