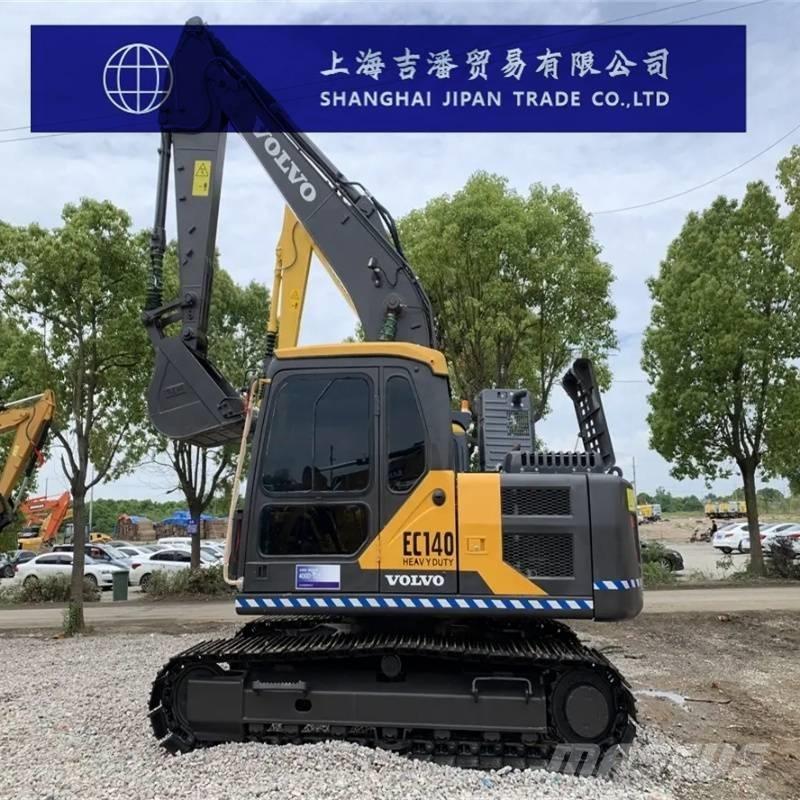

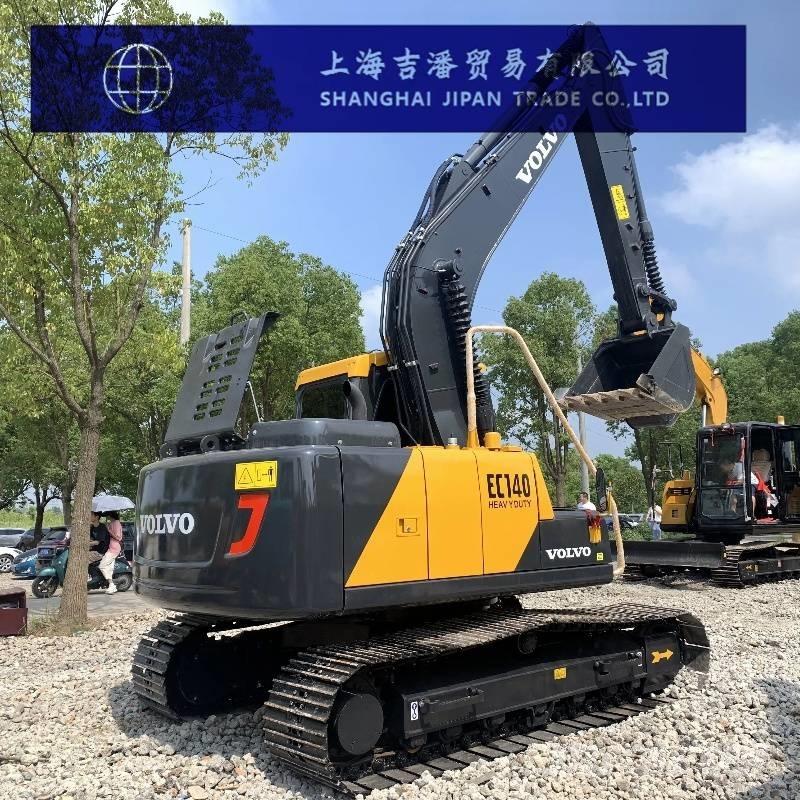

沃尔沃 EC 140

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Specifications Bucket Capacity (m³): 0.55-0.93 Stick Length (mm): 2500 Boom Length (mm): 4600 Operating Weight (kg): 13800 Ton Class (ton): 14 Manufacturer: Joint Venture/Imported Power Type: Conventional Power Bucket Type: Backhoe Performance Stick Digging Force (kN): 63.7/67.7 Ground Pressure (Kpa): 34.6 Swing Speed (rpm): 11 Travel Speed (km/h): 5.5/3.2 Gradeability (%): 70% Bucket Digging Force (kN): 93.2/98.1 Power System Rated Power (kw/rpm): 73/2100 Displacement (L): 4 Engine Model: Volvo D4D Bore × Stroke (mm): 101×126 Number of Cylinders: 4 Hydraulic System Main Pump Maximum Flow (l/min): 118×2+21 Boom Cylinder - Quantity × Bore × Stroke (mm): 105×980 Stick Cylinder - Quantity × Bore × Stroke (mm): 120×1045 Bucket Cylinder - Quantity × Bore × Stroke (mm): 100×865 Main Pump Type: Variable Axial Piston Pump ×2 + Gear Pump Fluid Capacities Coolant (L): 20.3 Engine Oil Change Capacity (L): 15.5 Hydraulic Oil Tank (L): 100 Fuel Tank (L): 260 Dimensions Total Track Width (mm): 2590 Track Gauge (mm): 1990 Counterweight Ground Clearance (mm): 900 Track Contact Length (mm): 3000 Minimum Ground Clearance (mm): 430 Overall Cab Height (mm): 2830 Rear Swing Radius (mm): 2200 Total Transport Length (mm): 7700 Total Transport Width (mm): 2590 Total Transport Height (mm): 2830
