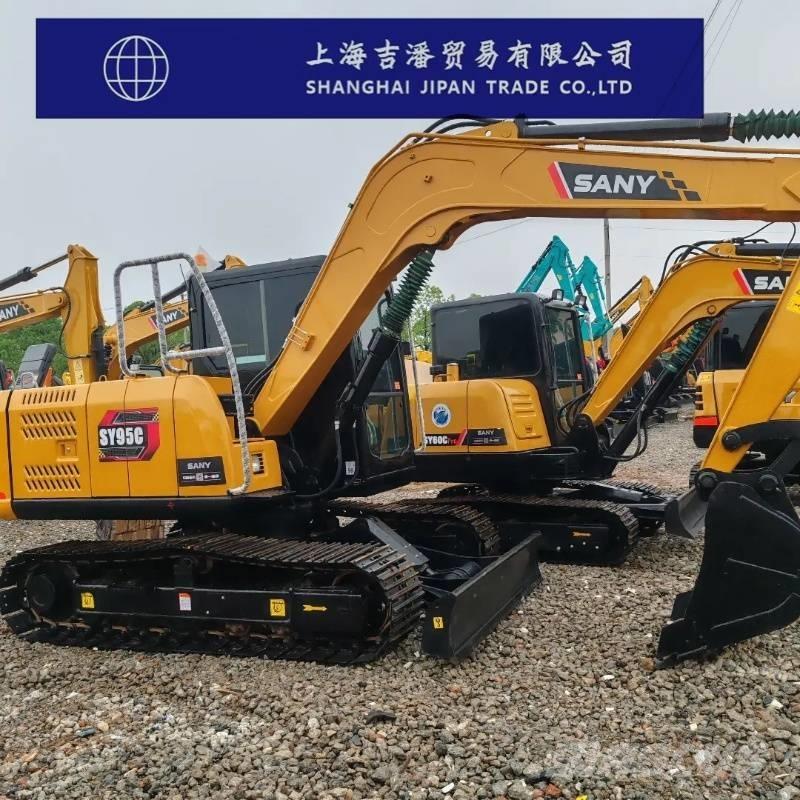

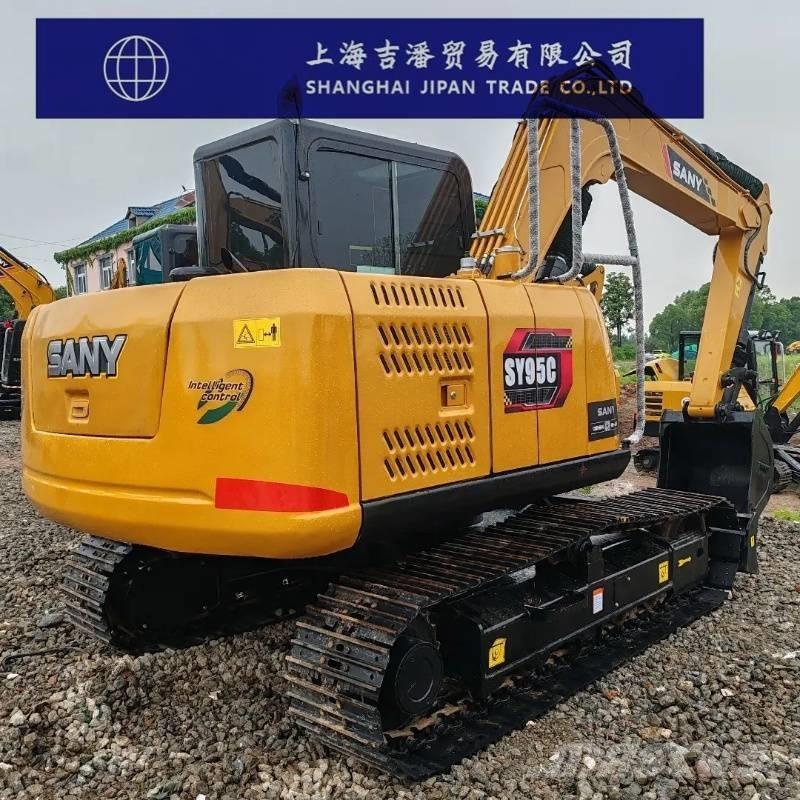

三一重工 SY 95 C

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Item Parameter Operating Weight 9180 kg Bucket Capacity 0.38 m³ Engine Model Yanmar 4TNV98CT Engine Displacement 3.3 L Rated Power 53.7 kW Travel Speed (Hi/Lo) 5.0/2.9 km/h Swing Speed 11 rpm Gradeability 35° Ground Pressure 38.6 kPa Bucket Digging Force 63.6 kN Arm Digging Force 46.8 kN Maximum Digging Height 7260 mm Maximum Dumping Height 5210 mm Maximum Digging Depth 4330 mm Maximum Vertical Digging Depth 3080 mm Maximum Digging Radius 6660 mm Minimum Swing Radius 1990 mm Overall Length (During Transportation) 6560 mm Overall Width 2260 mm Overall Height (During Transportation) 3200 mm Rear - end Swing Radius 1885 mm Track Width 450 mm Track Gauge 1810 mm Ground Clearance 360 mm Fuel Tank Capacity 160 L Hydraulic Oil Tank Capacity 120 L
